[GreenKeys] Teletype Tool Kit Cases

Sat Jan 1 21:22:12 EST 2022

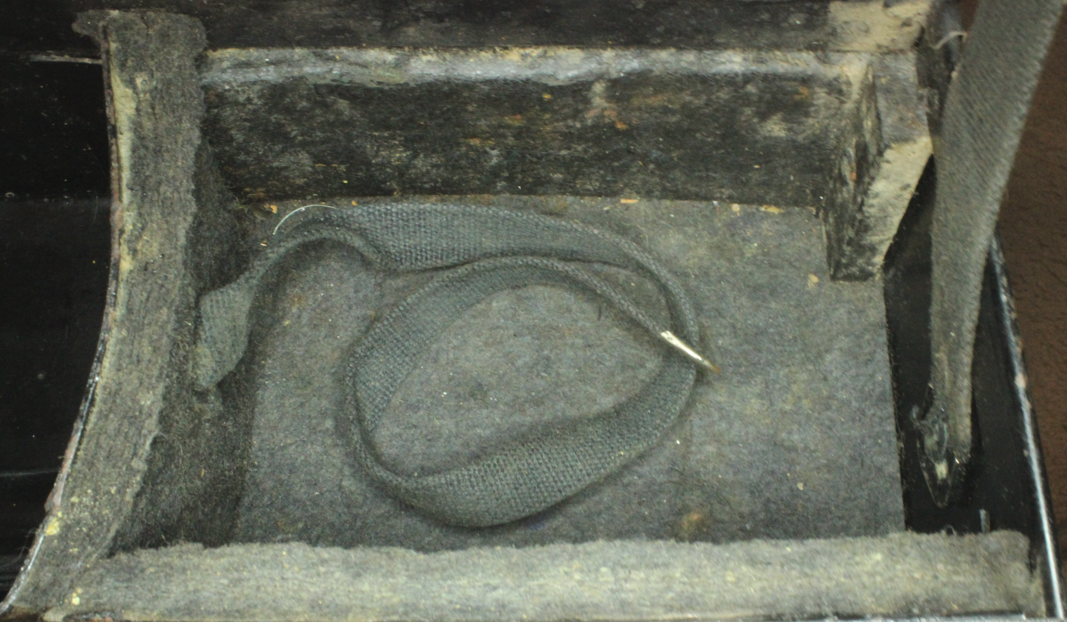

The felt lined compartment is, in inches, about 5 wide, 3.5 tall, and 3
deep.  Maybe this was for box 333190 (Box) or box 334165 (maybe for "Kit,
Bulb Replacement" or "Lamp, 6V Incandescent").  That would explain the
extra padding, though you wouldn't think they would put that at the bottom
of the case where it would sit on the ground.

That section has a strap.  One of the compartments below it also has a
strap.  I don't see a place for the loose end of the strap to connect to.
I'm thinking that this was placed underneath something like a box with a
flat top.  The strap would be pulled up to lift the box.

[image: KS-771 Mystery Compartment.png]

On Sat, Jan 1, 2022 at 7:18 PM John W9DDD <w9ddd at tapr.org> wrote:

> Is the felt lined section long and narrow?  Perhaps to store a tuning
> fork?  Just a wild guess.
>
> John, W9DDD
>
>
> On Jan 1, 2022, at 7:05 PM, Paul Wills <pdwills at cedarknolltelephone.com>
> wrote:
>
> Thanks.  I will check the BSP file.  Have you any idea what the
> compartments with the straps do.  I think there's a felt lined compartment
> too.
>
> PDW
> On 1/1/2022 6:13 PM, Mike Arrington wrote:
>
> I also have a KS-7771 tool case and its contents, purchased from e-bay
> some time back.
> I think it might be a close equivalent to the Teletype 113778 Universal
> Tool Kit.  There were some differences with my KS-7771.  It's possible that
> the original owner added or deleted tools depending on their needs.
>
> I haven't found a layout where the tools go, but I was able to find a
> place for everything.  Some slots were pretty obvious.
>
> Look in these for tool information.
> .  Section 570-005-800TC Issue 6, August 1977
> .  Section 570-005-800TC Issue 1, December, 1966.  (Supersedes Bulletin
> 1124B)
> .  Bulletin 1124B Maintenance Tools Change 4, October 1962 (Supersedes
> February 1962 Issue)
> .  Bulletin 1124B Maintenance Tools Change 2, April 1959 (Supersedes April
> 1958 Issue)
> There's a page in each of these that lists the contents of the 113778
> Universal Tool Kit.
>
> These manuals are available at
> https://www.navy-radio.com/manuals-ttycorp.htm.  Many thanks to Nick
> England for maintaining this great resource.
>
> I also had a 471A tool that was listed in X-75515 Tools and Gauges (Bell
> Telephone Laboratories)
> <https://archive.org/details/bellsystem_X-75515_Tools-and-Gauges> on
> Archive.org <http://archive.org>.
>
> ---
> Mike A.
>
> On Sat, Jan 1, 2022 at 3:08 PM Paul Heller <paul0926 at comcast.net> wrote:
>
>> Awesome question!
>>
>> Paul
>> W2TTY
>>
>> ITTY: HTTP://INTERNET-TTY.NET:8000/ITTY
>> <HTTP://internet-tty.net:8000/ITTY>
>> AUTOSTART: HTTP://INTERNET-TTY.NET:8030/AUTOSTART
>> <HTTP://internet-tty.net:8030/AUTOSTART>
>> EUROPE: HTTP://INTERNET-TTY.NET:8040/EUROPE
>> <HTTP://internet-tty.net:8040/EUROPE>
>>
>> On Jan 1, 2022, at 1:40 PM, Paul Wills <pdwills at cedarknolltelephone.com>
>> wrote:
>>
>> Here's an esoteric question:
>>
>> I have a KS-7771 tool case.  I have been led to believe that it was
>> intended for Teletype technicians.  I can guess where some of the tools go
>> (such as the spring gauges) but have no idea where anything else would go.
>>
>> Does anyone know whether AT&T ever had a BSP describing the contents and
>> configuration of each type of tool kit?
>>
>> PDW
>>
