[GreenKeys] Hubbell Twist-Lock Help (evidently "Twist-Tite")

[Nick England]

I found a 1949 electrical supply catalog with the 9213 "Twist-Tite"
receptacle.
https://archive.org/details/MadisonElectricCo/page/n175/mode/2up?q=%22twist+tite%22

The catalog included several other styles of Twist-Tite receptacles (pages
174-175) but NO PLUGS. It says that these take standard parallel blade
plugs/caps and provide greater retention. Weird - have you tried a standard
parallel-blade plug?

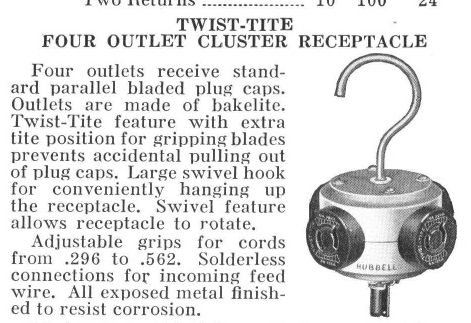

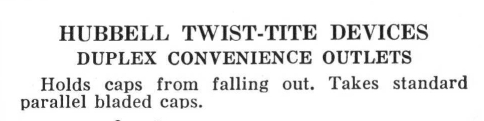

Photos from the catalog are attached -
Nick England K4NYW
www.navy-radio.com

On Mon, Feb 21, 2022 at 5:09 AM <pbirkel at gmail.com> wrote:

> I have an RA-87 loop supply that I’d like to resurrect but am having
> difficulty with the DC loop power connectors.  They are Hubbell
> “Twist-Tite” female receptacles as seen in the attached photo.  The
> diameter across the outer edge of the prongs is exactly 5/8”.  I’m not a
> “Hubbell guy” … but I’m trying to learn!
>
>
>
> TT 11-957 documents the RA-87 (see:
> https://archive.org/download/TM11-957/TM11-957.pdf), where Section V
> “Supplementary Data” references Stock No. 6Z7815, described as “Hubbell
> #9213 Twist-Tite”.
>
