Michael,

Thanks for the link!!

I was not aware that NCM had a youtube channel - looks to be new.

The TTY in there is a TT-30/AGA-1 (aka Teletype Corp. Model 31). The box
is a portable TTY and (SIGABA-type) encryption unit in one.  Never seen

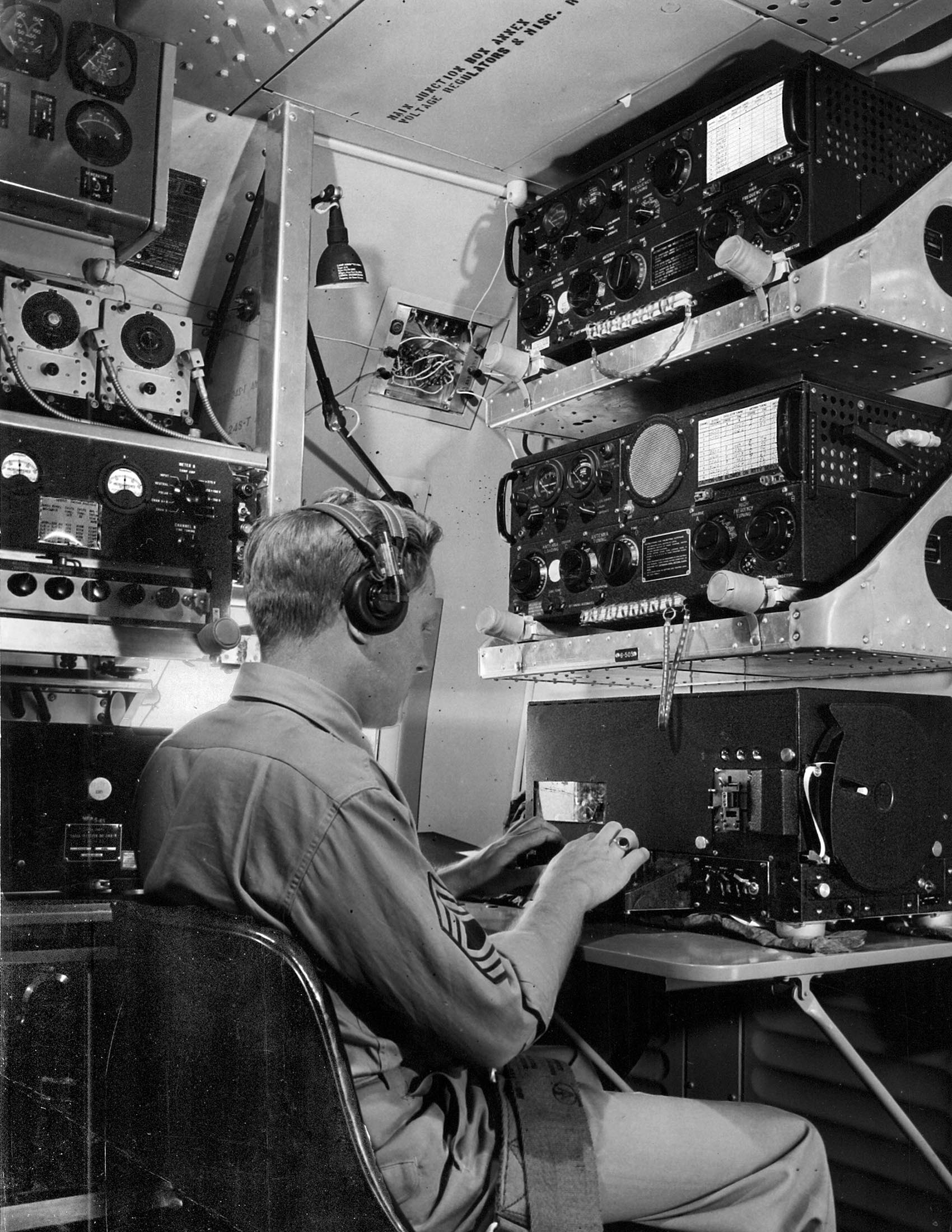

this version, but description enclosed.  There is a picture (enclosed)
of the communications position of President Truman's VC-118 aircraft in
1947 using a similar unit.  (note the AN/ART-12 modified for RTTY on the
shelf above.)

The original  "SIGABA" machine did not include a TTY.  It had a keyboard
and just generated the encrypted signal typed onto a paper tape to be
sent out over voice, CW or TTY. Later, there were modifications or
adapters to generate the 5-bit TTY code directly. SIGABA was
manufactured by Teletype Corp. for the government.

  I believe the proper nomenclature for the AFSAM 4A was "SIGNIN" and
"M-294"

Thanks  & have fun,

Duncan
K2OEQ



On 10-Feb-22 12:49, Michael Katzmann wrote:
> https://www.youtube.com/watch?v=bODkOdBLJbU&t=1s
> <https://www.youtube.com/watch?v=bODkOdBLJbU&t=1s>
>
> Has anyone seen one of these in the wild?  (I presume they all get
> destroyed upon retirement)
>
> Michael
>
> ______________________________________________________________
> GreenKeys mailing list
> Home:http://mailman.qth.net/mailman/listinfo/greenkeys
> Help:http://mailman.qth.net/mmfaq.htm
> Post:mailto:GreenKeys at mailman.qth.net
>
>>>> Jordan Spencer Cunningham's GreenKeys Search Tool:https://teletype.net/gksearch
>>>> 2002-to-present greenkeys archive:http://mailman.qth.net/pipermail/greenkeys/
>>>> 1998-to-2001 greenkeys archive:http://mailman.qth.net/archive/greenkeys/greenkeys.html
>>>> Randy Guttery's 2001-to-2009 GreenKeys Search Tool:http://comcents.com/tty/greenkeyssearch.html
> This list hosted by:http://www.qsl.net
> Please help support this email list:http://www.qsl.net/donate.html
> Message delivered toduncanancy at earthlink.net
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Truman's Radioman.jpg
Type: image/jpeg
Size: 522416 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20220210/6d0d38e4/attachment-0001.jpg>
-------------- next part --------------
US UK Comm Security Equip c1952.pdf  p.12

SECTION A;  U. S. COMMUNICATION SECURITY EQUIPMENT

PART II. TELEPRINTER SECURITY EQUIPMENTS

3. Non-Synchronous with Electro-Mechanical Crypto-Components


AFSAM 4A (SIGNIN)

	A combined teletypewriter and cipher machine. An eight rotor
maze produces five levels of key which are added baud by baud
to the plaintext to accomplish encryption. May be operated on-line
or off-line. Unit is mounted in a specially designed three-combination
safe. For PANDORA operation, impulses travel through maze from left
to right to produce five elements of key simultaneously. Rotor 1 is
fast and controls Rotor 2; Rotor 2 controls Rotor 3; Rotor 3 controls
Rotor 4; a mixed-wired stator is located between Rotors 4 and 5;
Rotor 5 is fast; Rotor 6 is controlled by Rotor 7; Rotor 7 is controlled
by Rotor 8; Rotor 8 is fast. For BALDER operation, impulses
travel through maze from right to left and are reflected back to the
right end-plate to produce the five levels of key. Rotors 1, 2, 3, 4,
6, 7, and 8 move as in PANDORA; Rotor 5 is a "bump" rotor, controlled
from one of the end-plate contact positions; a mixed-wired stator is
located between Rotors 4 and 5.

Size and Weight:  22 1/2" X 25 3/8" X 17"; 252 lbs.

Production Status:  Approximately 450 machines have been produced.

Radiation: Extent of spurious radiations from this equipment
has not been determined.
