[GreenKeys] cleaning 28ASR keys

[Kevin H. Phillips]

I know that others who have worked with these machines have encountered
similar problems but I can't remember the exact products used to clean
the keys and thought I would post about something I "discovered" while
working on the machine I picked up a few weeks ago in Houston, TX.


The keys tops, the plastic sleeves covering some of the internal wiring
harness, and other things were coated with a white "mold" or something.
In addition, the keys also seemed to have an "undercoat" of something
brown.  I speculated that it could have been tar and nicotine from the
machine having been in an environment for a long time where there was
heavy cigarette smoke in the air but I don't know if that is possible.
It was almost like varnish.


The Space key on this machine was repeatedly sticking and there were
problems with inserting random LF at times when I was punching a tape.
None of that was cured by localized lubrication on the spots I could
reach inside on the transmitter base.  I finally decided to remove the
keyboard cover to try cleaning/re-lubricating the Space bar mechanism at
the very least.  Once I saw the full condition of the key tops, I
decided to proceed with a full cleaning of the keys.  I also decided
that I would clean them one-by-one to avoid any confusion.


I flushed the mechanism/springs with degreaser followed by a water rinse
and then dried the mechanism with a heat gun.  I tried cleaning the key
tops with my old reliable, Simple Green, and even 409, but not even that
was completely removing the brown residue. I was afraid to leave
anything soaking in Simple Green for very long.  I tried some other
cleaning products at hand but nothing helped much.


Then I found an aerosol can of an automotive product I bought several
years ago being sold at a local fuel station ostensibly for charity.  I
had not paid much attention to the product.  It sprays out to create a
soupy foam.  The product was labeled "Cleaning Wax" and is by Fast Wax
(www.fastwax.com).  I do not see the exact product listed now on their
website but perhaps the "General Cleaner" is the same.  I started by
spraying a shallow puddle of this stuff in a bowl and letting the key
top sit for a few minutes before rubbing it with a cloth.  Most of the
residue from the key top disappeared easily.  Even the metal stud was
clean.  But, there would occasionally be some brown residue left. This
sometimes could be removed with applying a lot of "elbow grease" but I
also found if I soaked the key top again or let it sit in the cleaner
longer that the residue would be completely removed.  I just left one
key top sitting in the stuff overnight and it came completely clean with
no effort.  This obviously will take a long time doing this one at a

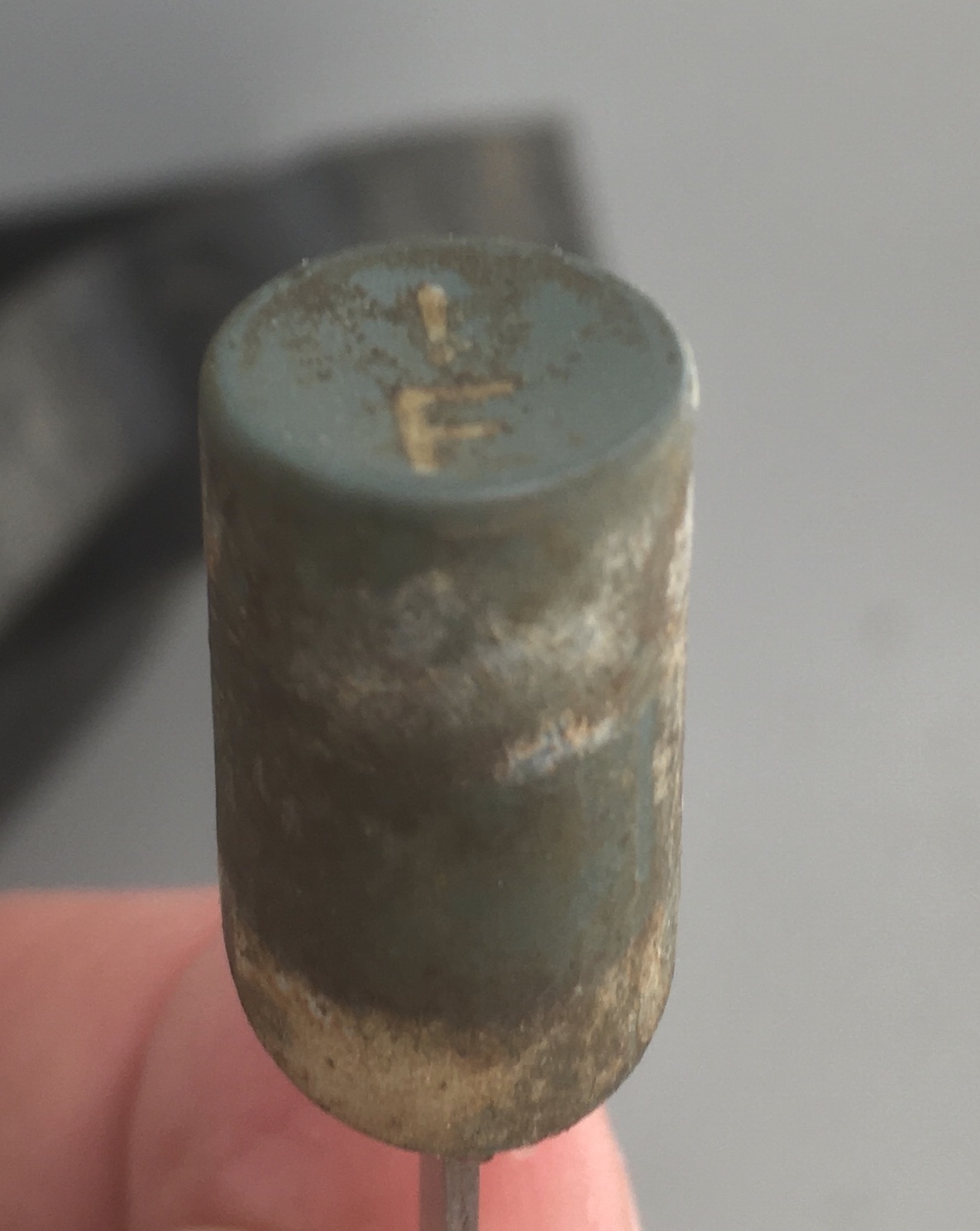

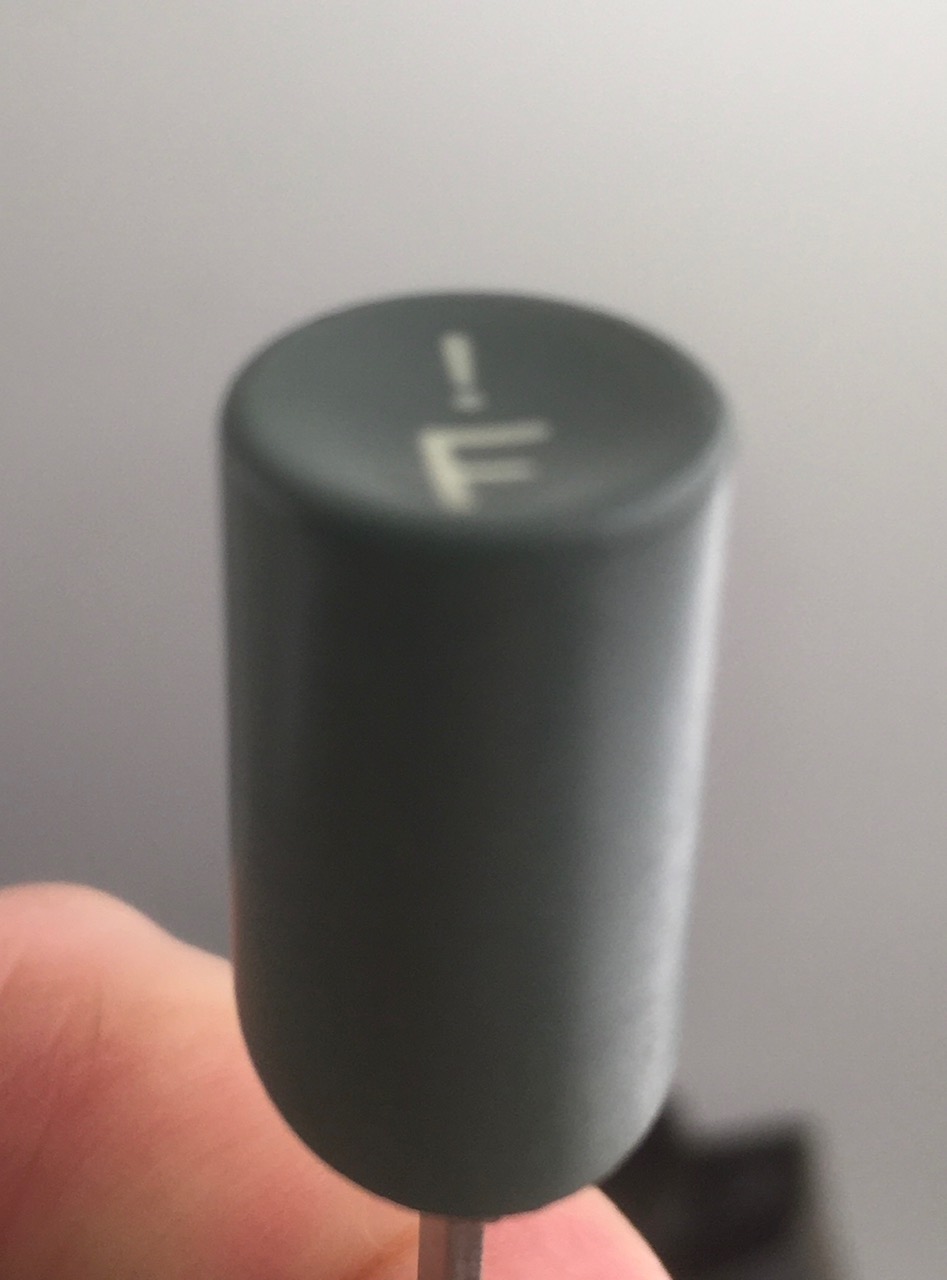

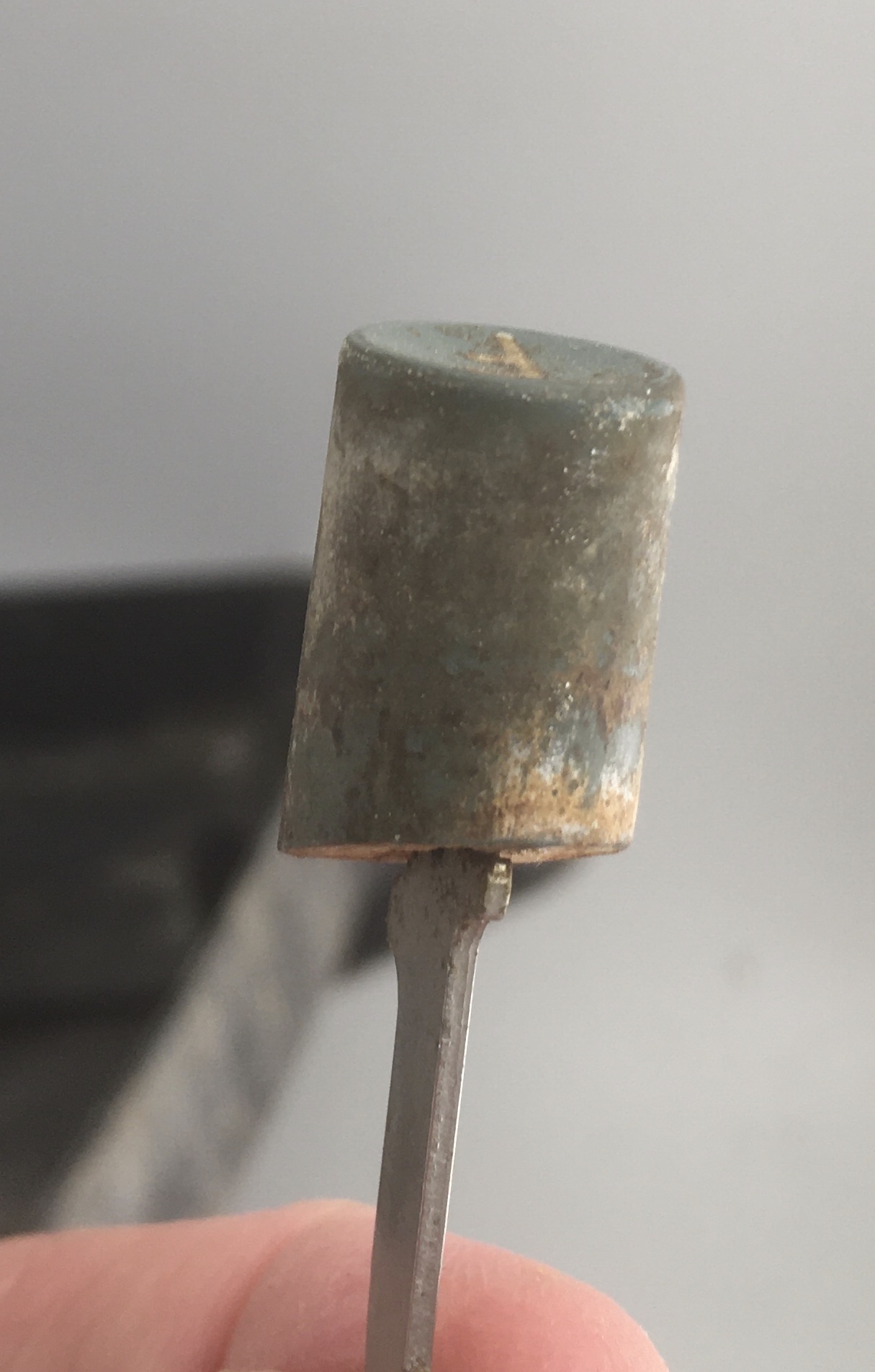

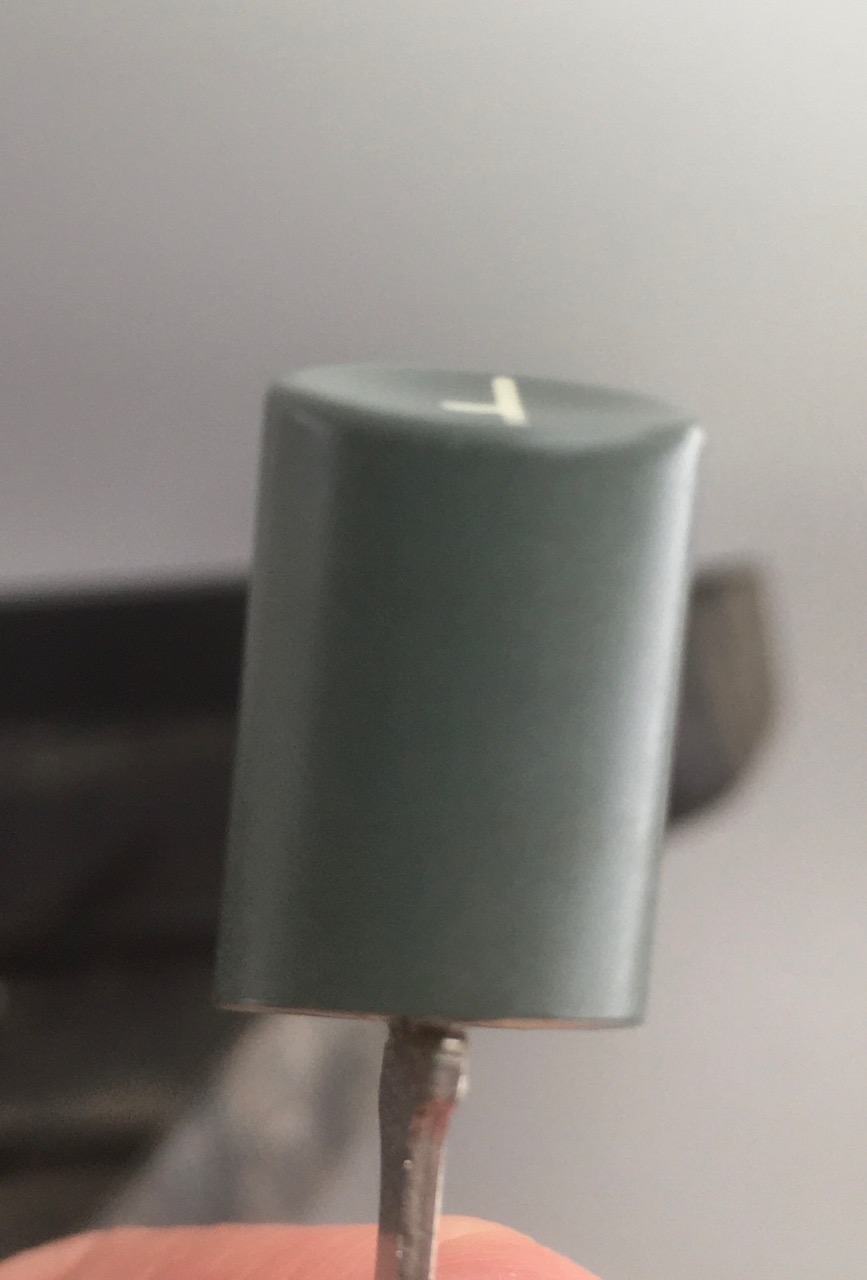

time but I am not willing to risk mixing up the keys!  Attached are some
"before and after" pictures of one of the worst key tops.  I have about
one-third to one-half of the key tops cleaned at this point.  I am
oiling the pivot points as I re-attach the key tops.


73


Kevin

W5TTY





--
