[GreenKeys] Wiring model 15 keyboard and printer in series

[chris johnson]

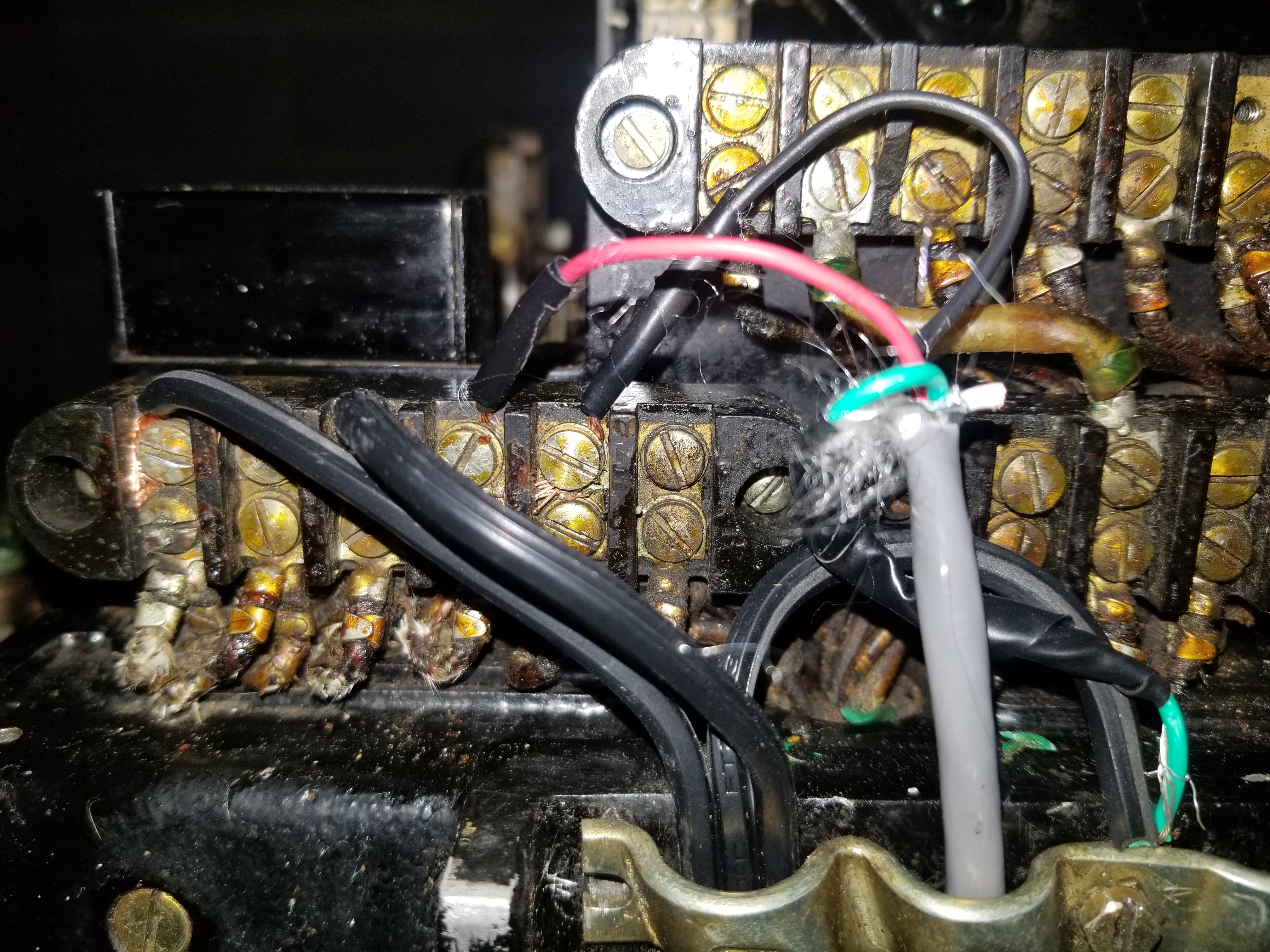

What terminals do I wire together with a jumper or jumpers to put the keyboard into series with the printer so it prints as I type???.? I believe I have the DC loop wired correctly as per the wiring diagrams Ive seen but want to ensure I have the keyboard in series before I apply DC power... Ive already tested the AC side it seems to be working well motor runs and keyboard encodes when keys are pushed...
