[GreenKeys] Setting M42 installer options

[Nick England]

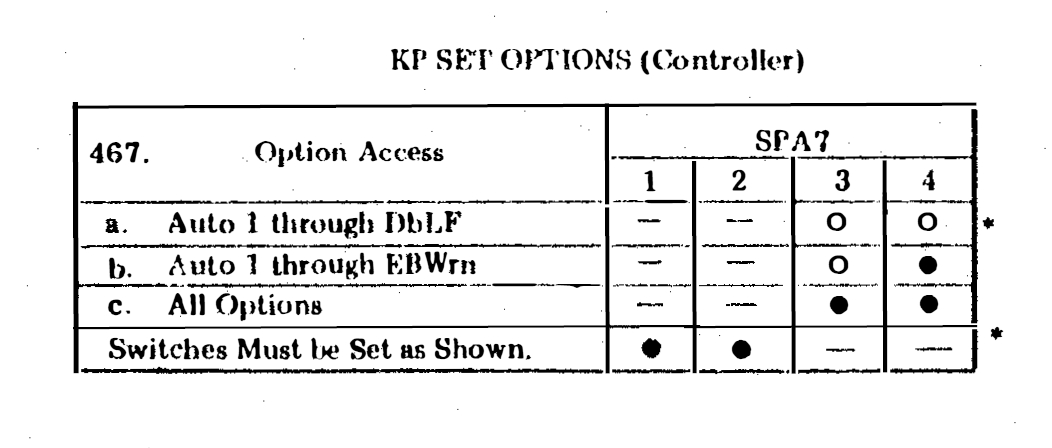

 OK - See attached. I have found this info on DIP switch settings for
option 467 in 455M (for the buffered M42). This is exactly what I need
except ----

My M42 is a "Basic" Telex unit (no buffer memory)  and I can't find a
similar set of DIP switches. Dang! There must be some way to enable an
installer to set options beyond DbLF (Double Line Feed) which is where my
M42 stops. Otherwise I can't set the Baud Rate or Answer-Back, etc.!
Does anyone have 518M which is installation info for the Basic M42? That
might give me a clue. Did any of you guys ever install a Telex M42 and have
dim memories of how to set the Answer-back?

Thanks,
Nick England K4NYW
www.navy-radio.com


On Thu, Sep 30, 2021 at 11:43 AM Nick England <navy.radio at gmail.com> wrote:

> FWIW, here is a list of the M42 options (thanks to Leanne W1WXS)
> https://www.navy-radio.com/tty/m42/m42_144908451.jpg
> The leftmost column options are listed in the 516M manual as "User
> Programmable" while the rest are the "Installer Programmable" ones which I
> can't figure out how to change,,,,
> Nick England K4NYW
> www.navy-radio.com
>
>
> On Wed, Sep 29, 2021 at 2:18 PM Nick England <navy.radio at gmail.com> wrote:
>
>> I have finally figured out some options on my Telex Basic M42 ASR (thanks
>> to greenkeyer Leanne for a copy of 516M).
>> But when I get to the end of the User Programmable Options list, I am
>> stuck.
>> How do I access the Installer Programmable Options like baud rate,
>> answer-back, etc.
>>
>> Probably the magic switch is staring me in the face, but I can’t figure
>> it out. I am fully prepared to slap my forehead and say Doh! if someone can
>> please enlighten me.
>> Cheers
>> Nick
>>
>> --
>> Nick England K4NYW
>> www.navy-radio.com
>>
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20211103/a2a4ffd7/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: installer-options-buffered.jpg
Type: image/jpeg
Size: 112934 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20211103/a2a4ffd7/attachment.jpg>
