[GreenKeys] Bi-annual veterans list

[Daniel Jones K6YIC]

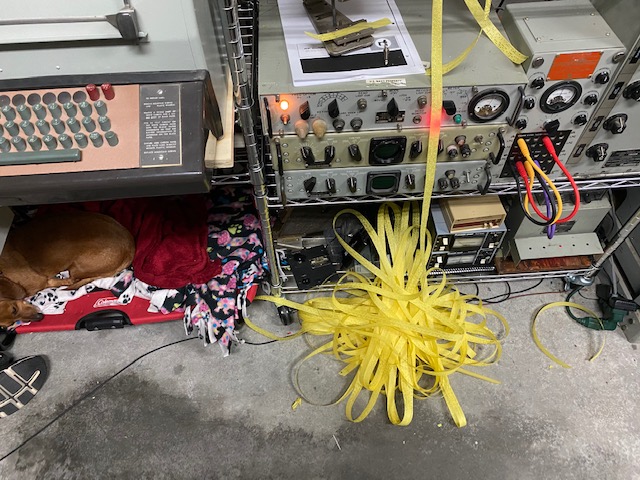

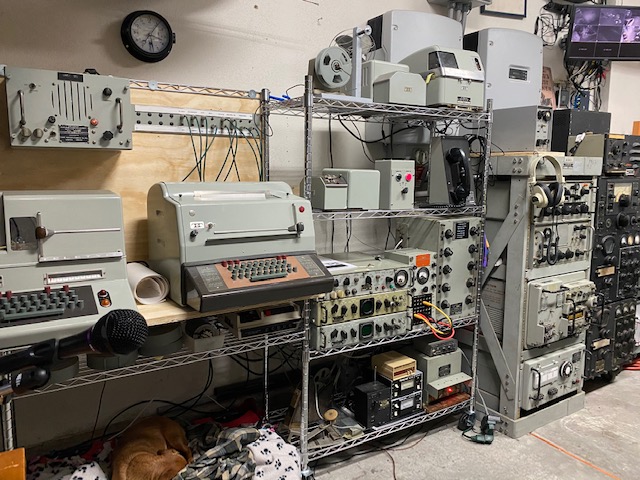

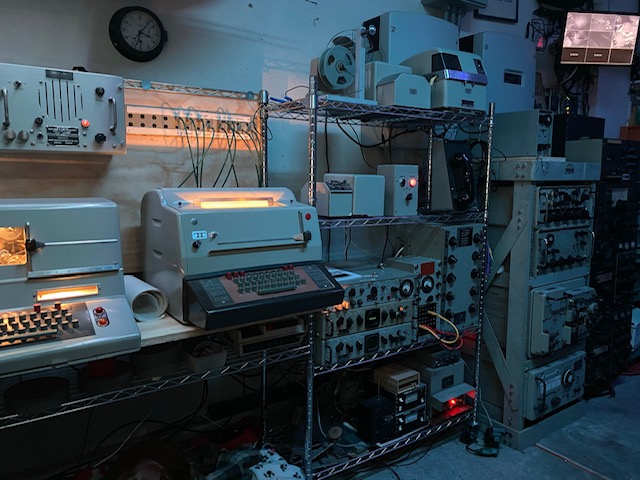

Here are a couple photos of the current setup.

I was using 3 out of the 5 terminal units.  CV-2460 transmitting, TU-170 receiving from ITTY to 192a, CV-483 receiving locally from a R-1051 receiver to verify correct copy on 28KSR.



Sent from my iPhone

> On May 31, 2021, at 10:07, Paul Heller <paul0926 at comcast.net> wrote:
>
> Nice! Take some photos. I’d love to see the setup
>
> Paul
> W2TTY
>
> ITTY: 		HTTP://INTERNET-TTY.NET:8000/ITTY
> ITTY100: 	HTTP://INTERNET-TTY.NET:8010/ITTY100
> AUTOSTART: HTTP://INTERNET-TTY.NET:8030/AUTOSTART
> EUROPE: 	HTTP://INTERNET-TTY.NET:8040/EUROPE
>
>>> On May 31, 2021, at 12:26 PM, Daniel Jones K6YIC <djones at k6yic.com> wrote:
>>>
>> I am doing this mostly with vintage equipment the only exception is I am using a Kenwood TS-570s for the transmitter. Otherwise this is the process;
>>
>> Autostart in through a Rasberry Pi to a Flesher TU-170 which will print out on a TT-192a (miniature typing Reperf so I can keep the whole exchange for future use) which will feed at the same time to a TT-187a (miniature TD) at that point it will go into a CV-2460 Navy Terminal unit and out to the Kenwood.
>>
>> I will be monitoring my own signal using a R-1051 to a CV-483 terminal unit and out to a TT-307 28 KSR.
>>
>> Daniel
>>
>> Sent from my iPhone
>>
>>>> On May 31, 2021, at 08:45, Daniel Jones K6YIC <djones at k6yic.com> wrote:
>>>>
>>>
>>> 7087 USB
>>>
>>> 850hz Shift centered on 2000hz (1575, 2425), 45.5 Baud, 5 bit (Baudot)
>>>
>>> Daniel
>>>
>>> Sent from my iPhone
>>>
>>>>> On May 31, 2021, at 08:21, steve bennett <raleigh_ranger at yahoo.com> wrote:
>>>>>
>>>>
>>>> Daniel,
>>>>
>>>>   For those of us not familiar with the military standard.
>>>> What baud rate? Stop bits? 5bit encodeing or ascii?
>>>>
>>>> I will attempt to copy this with FLDIGI and I have to go into custom settings to get 850hz shift.
>>>>
>>>> Thanks,
>>>> -Steve
>>>>
>>>> On Monday, May 31, 2021, 10:20:08 AM EDT, Daniel Jones K6YIC <djones at k6yic.com> wrote:
>>>>
>>>>
>>>> Good Morning,
>>>>
>>>> At 1915z (12:15 PDT, 3:15 EDT) I will be putting out a great Memorial Day speech by president Reagan from 1982 on autostart, this will be followed by the veterans list by Tom Tillson 15 minutes later.
>>>>
>>>> I am planning on punching both out and retransmitting on 40m live as it is coming over the Autostart wire.
>>>>
>>>> The set up will be 7087hz USB 850hz Shift (2000hz center) Military standard.  This will be from Eastvale, Ca.
>>>>
>>>>
>>>> I would appreciate it if people can send me feedback reports.
>>>>
>>>> Daniel Jones
>>>> K6YIC
>>>>
>>>> Sent from my iPhone
