[GreenKeys] Terminal block suggestion for Raspberry Pi?

[Nick]

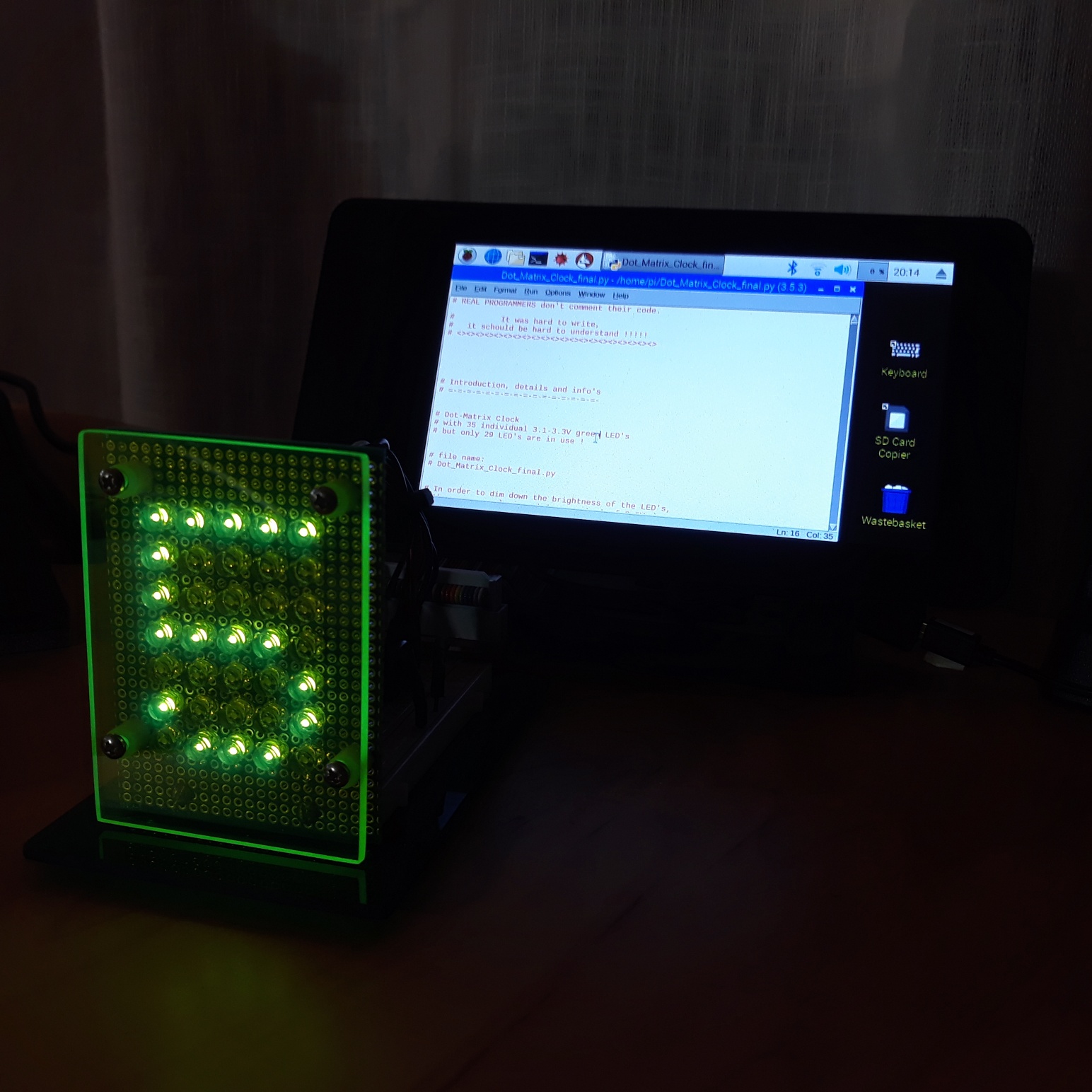

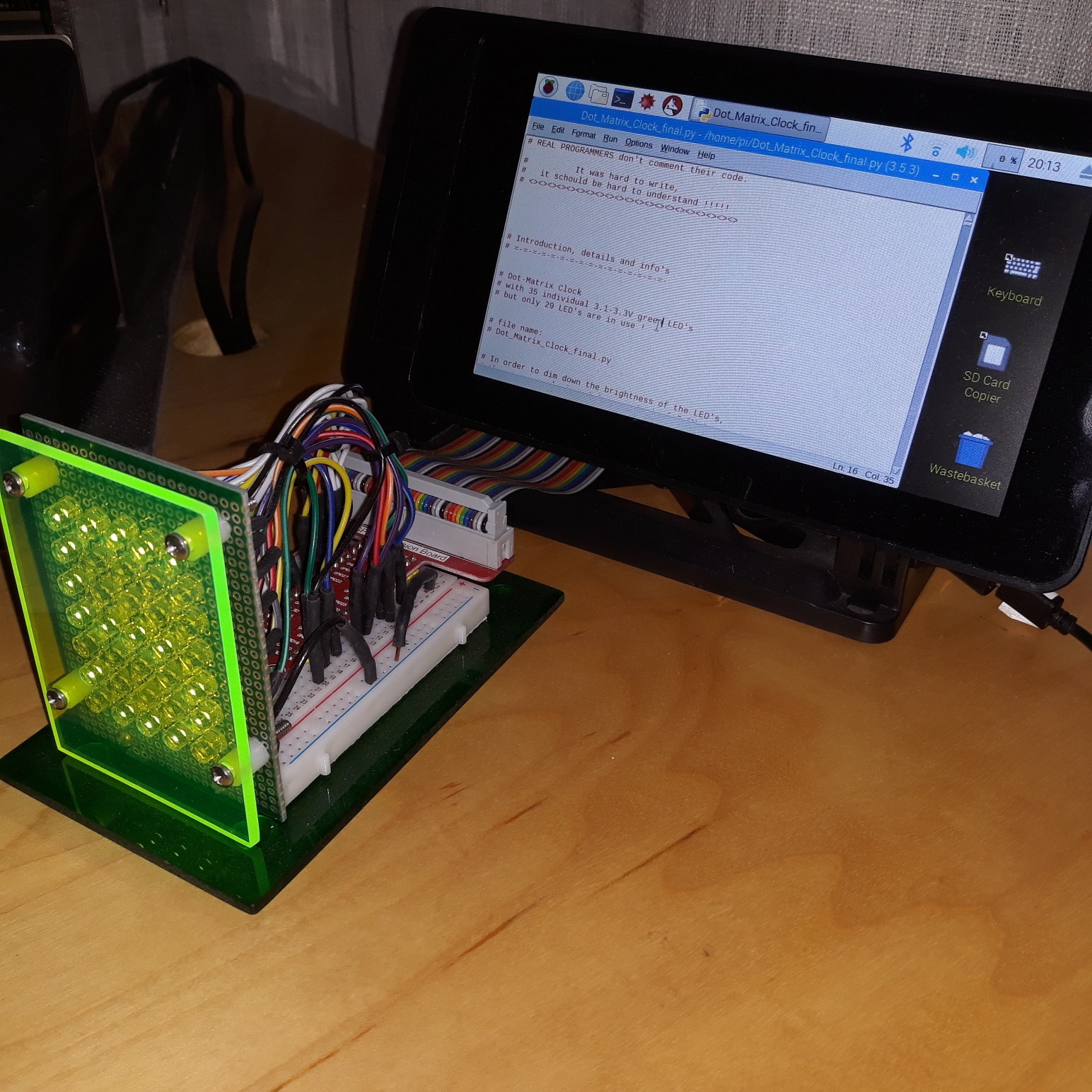

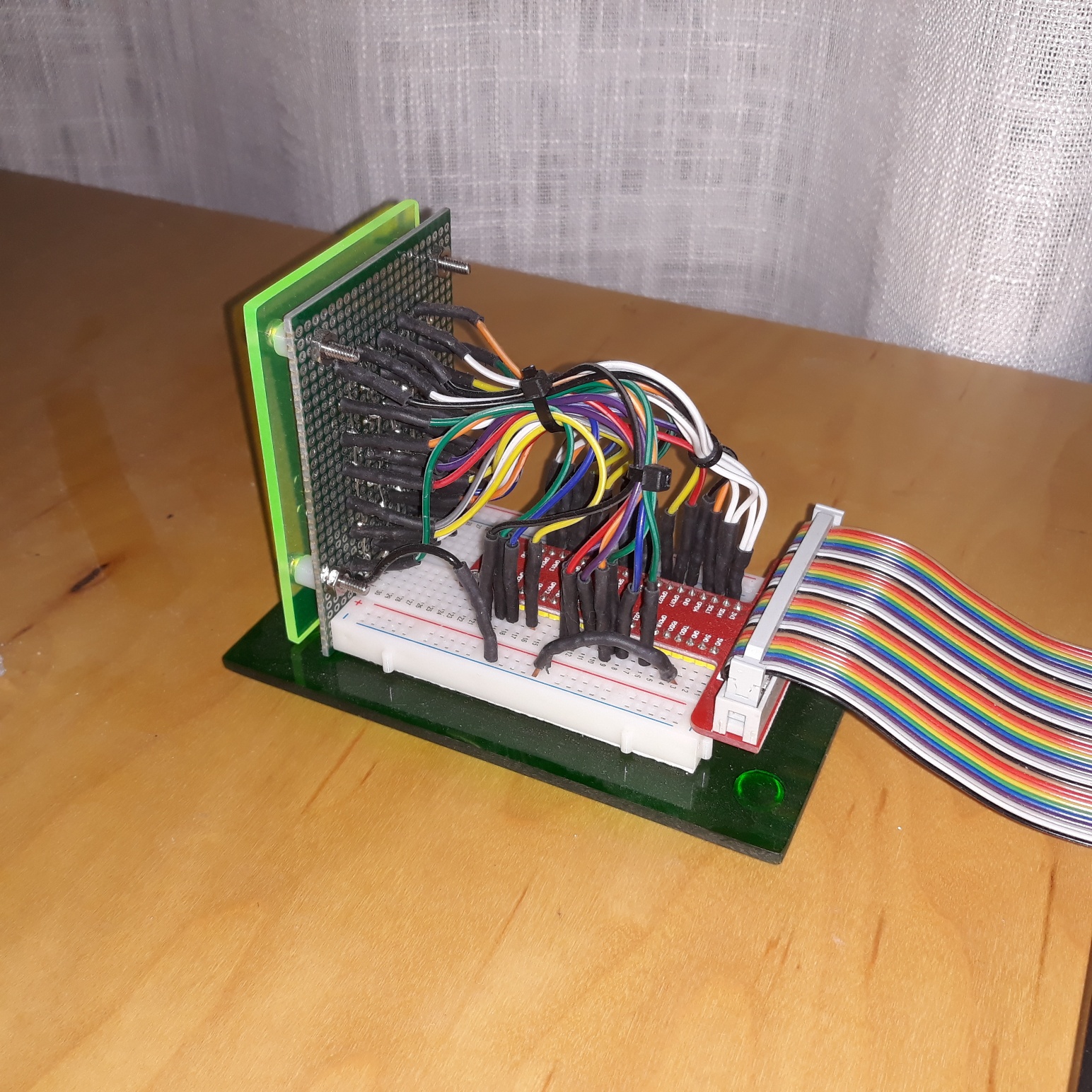

I accomplished that challange with a 10" extension going from the Pi to a terminal block behind a small LED dot matrix display I designed. 3 pics attached.

Nick  -  N0NCQ



Sent from my T-Mobile 4G LTE Device



-------- Original message --------
From: "E." <hanyou at xsmail.com>
Date: 3/30/21 5:42 PM (GMT-05:00)
To: AA6RK via GreenKeys <greenkeys at mailman.qth.net>
Subject: [GreenKeys] Terminal block suggestion for Raspberry Pi?


Hi!

Does anyone have a good suggestion for a terminal block for the Raspberry Pi 3 - in order to connect GPIO leads to the 40 pin extended GPIO on the board ;o ?  I have straight, push in connectors that go onto the pins… but with the little case the Pi sits in, the pins hit the top, the wires get bent and if you bump the leads just right, it shorts out.  Need something - like a terminal block, that can help turn the works 90° out the side slot (and not hit the top).  Anyone have any ideas out there ;o ???

Thanks must as always in advance ^^ !
