[GreenKeys] Chad Tube

Tue Mar 30 15:49:27 EDT 2021

Tomas,

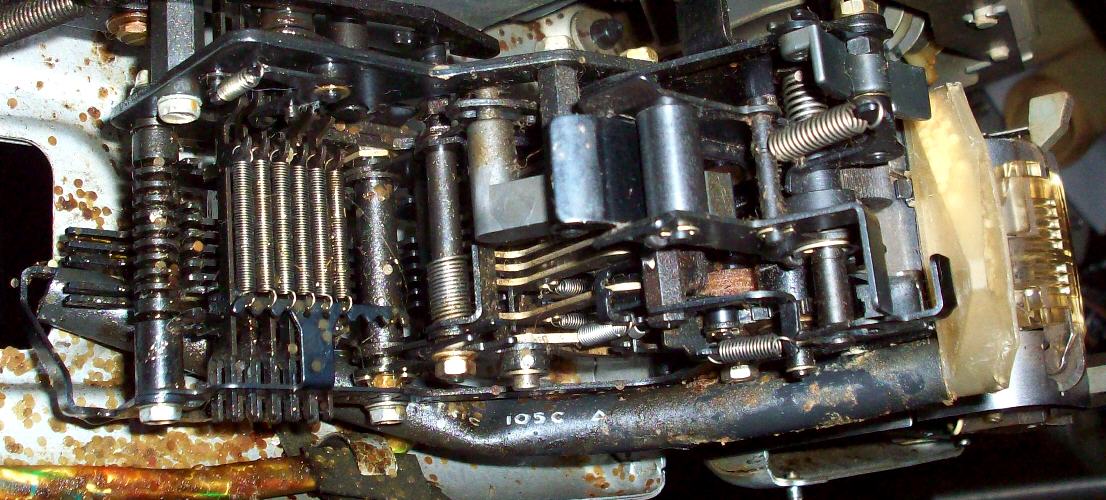

The tube on my 32 is about 3/8" in. in diameter and 7 in. long. It is a loose fit over chad collector above the tape punch. The metal bracket at the bottom keps it from sliding off. It is the hardness of un-shunk shrink-fit tubing. I am attaching the best photo I could take.

Tom   N3CRK
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Chad Tube.jpg
Type: image/jpeg
Size: 143230 bytes
Desc: Chad Tube.jpg
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20210330/d32a6aec/attachment.jpg>
