On 16-Mar-21 22:47, Jim Cooper wrote:
>
> How about the big, black, heavy
> vertical one with the tape roll flat on
> top that reperfed, but fully punched
> the tape?   The tapes out of that were
> perfect for sending and storing picture
> tapes because they were fully perfed
> and thus flat and wrapped up nice and
> tight!

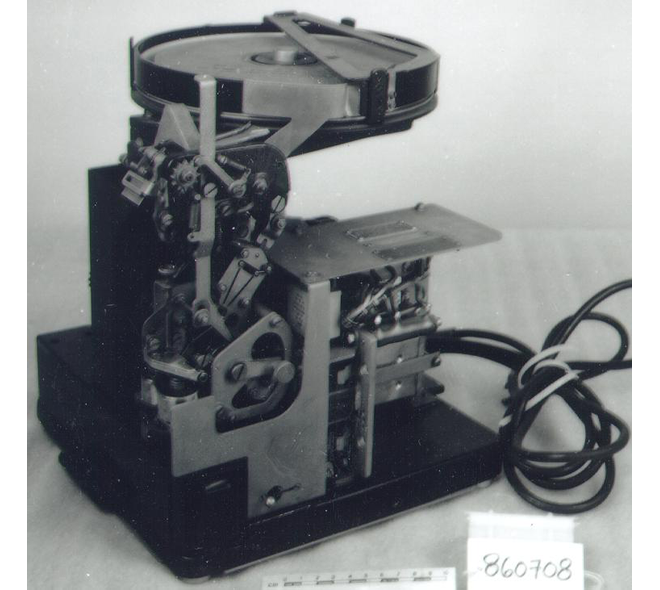

Teletype Corp originally referred to that machine as the "Single Magnet
Reperforator" (Bul. No. 147). I think it must have been Teletype Corp.'s
first reperforator. It was also know as the "RPE" model. ("Single
Magnet" refers to the fact that it was a Stop-Start, serial machine, as
opposed to the synchronous machines that had 5 magnets.)

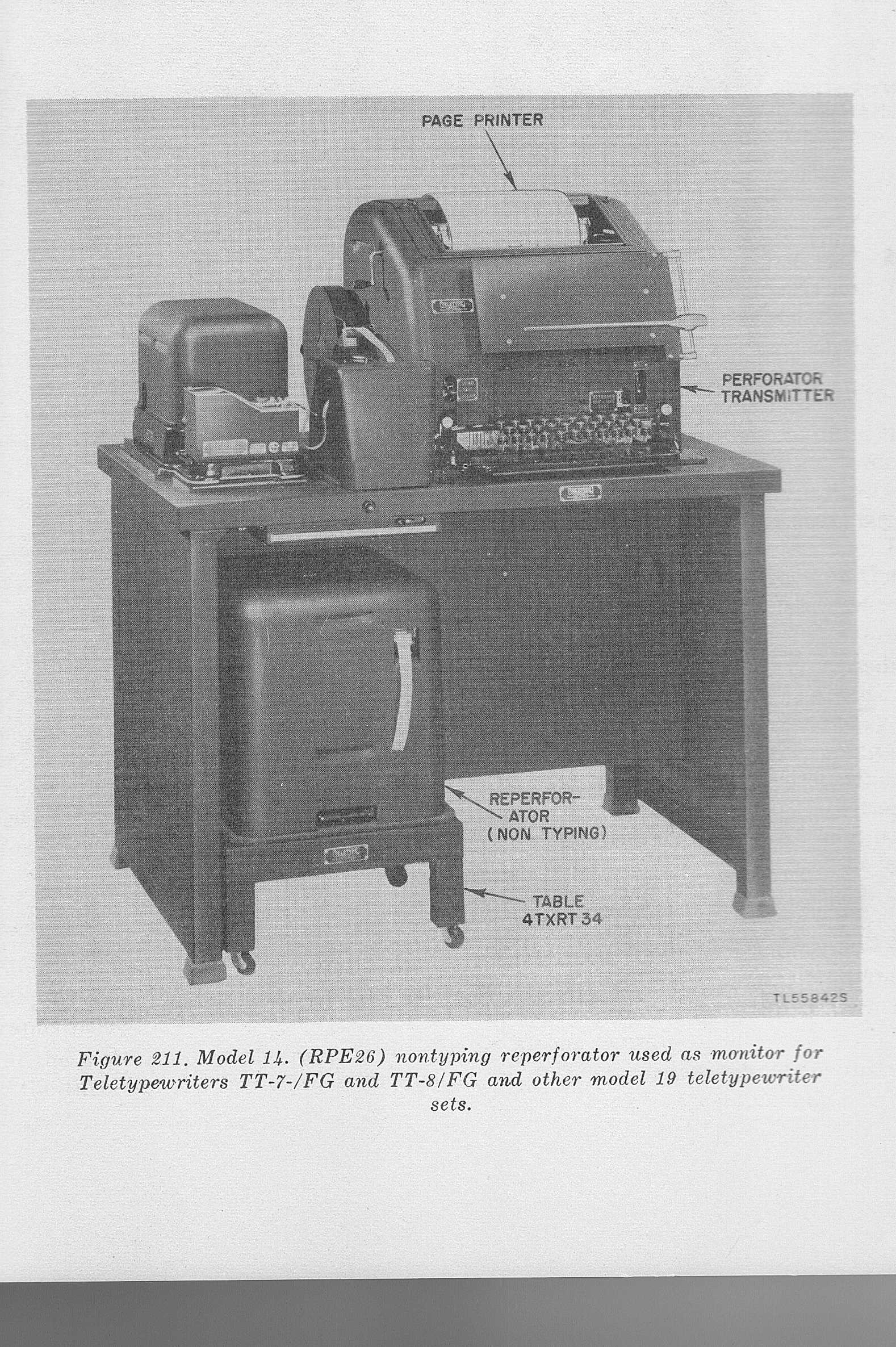

It was typically used with the M19 and sat on a little dolly that rolled
under the M19 desk.  There was a later version that had the same case,
but had a M14 reperf inside.

(pictures enclosed)


> How many still know the 'pro'
> way to wrap tape around your thumb
> and fingers so that when it fed out from
> the inside it did not twist up?
For details on how to wind tape, see RTTY Magazine, OCT 1977 (enclosed)

Have fun,

Duncan
K2OEQ
