[GreenKeys] Help: MITE connector ID

[Olaf Möller]

Hello Robert and Mite-Fans,

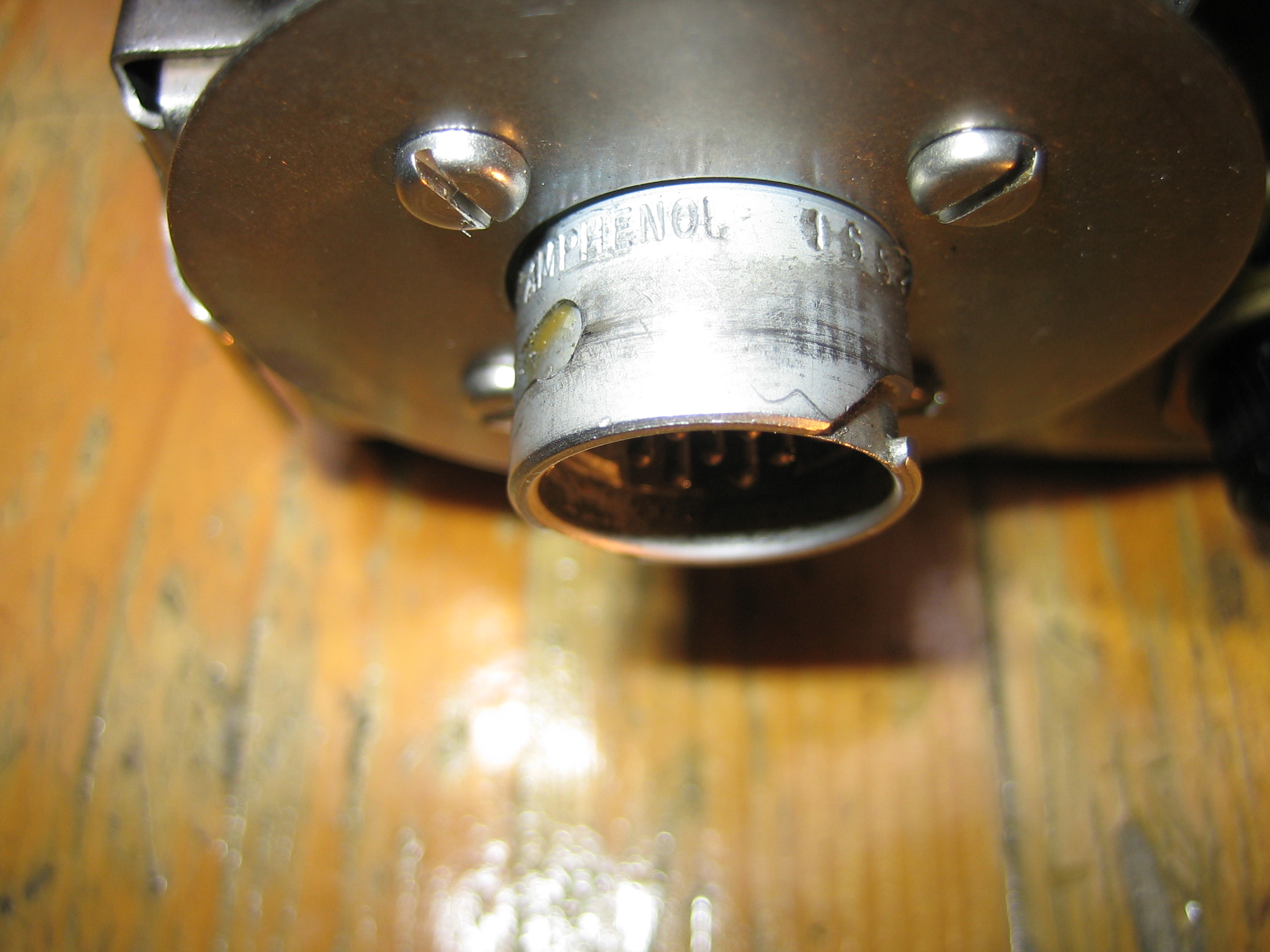

Plug: AMPHENOL 165 Series: 165-10 NSFP /  16510, very expencive, 70$ !!!!

I've got mine from RADWELL

When I got my mighty mite there was no cable or box with it.

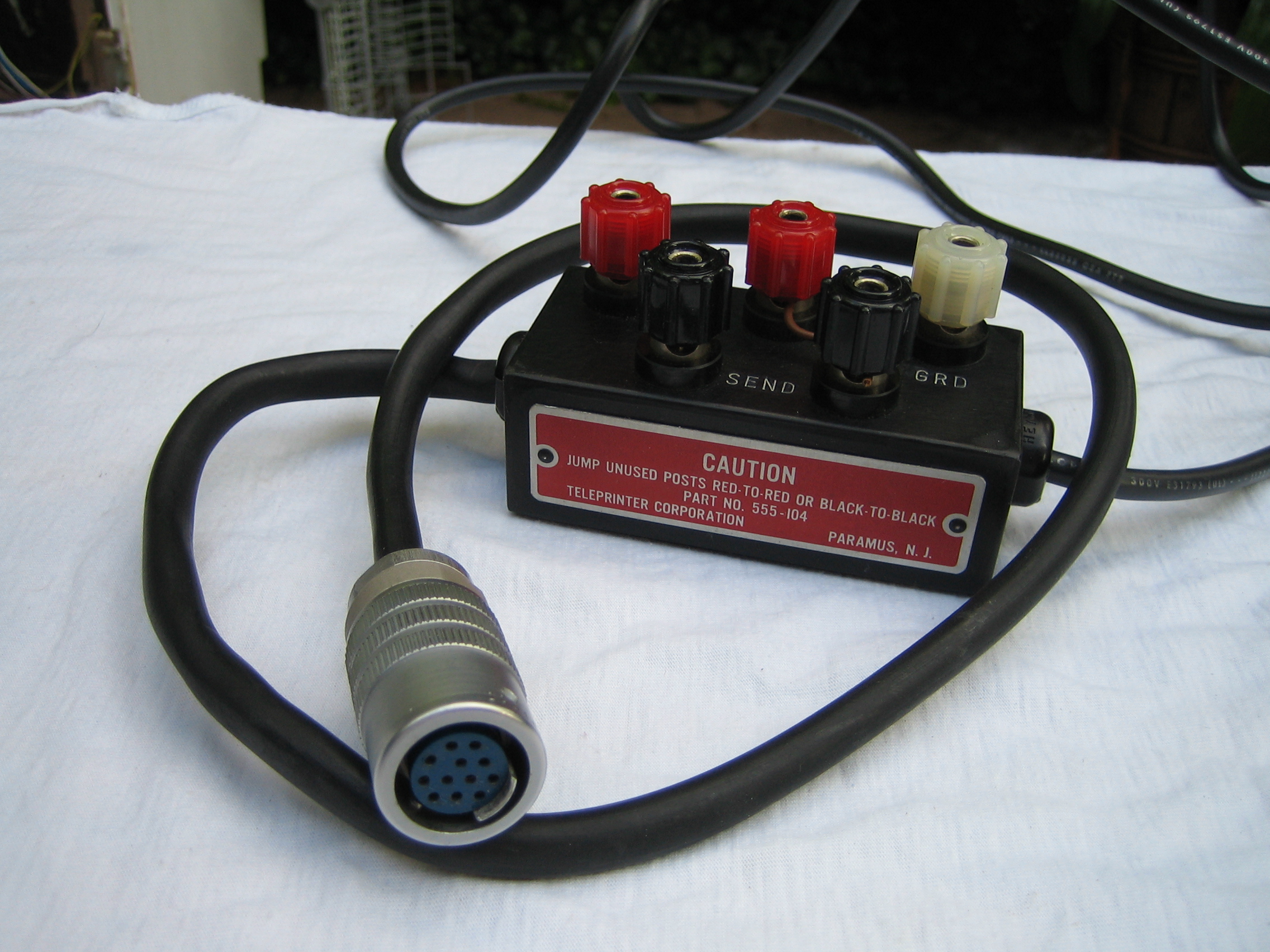

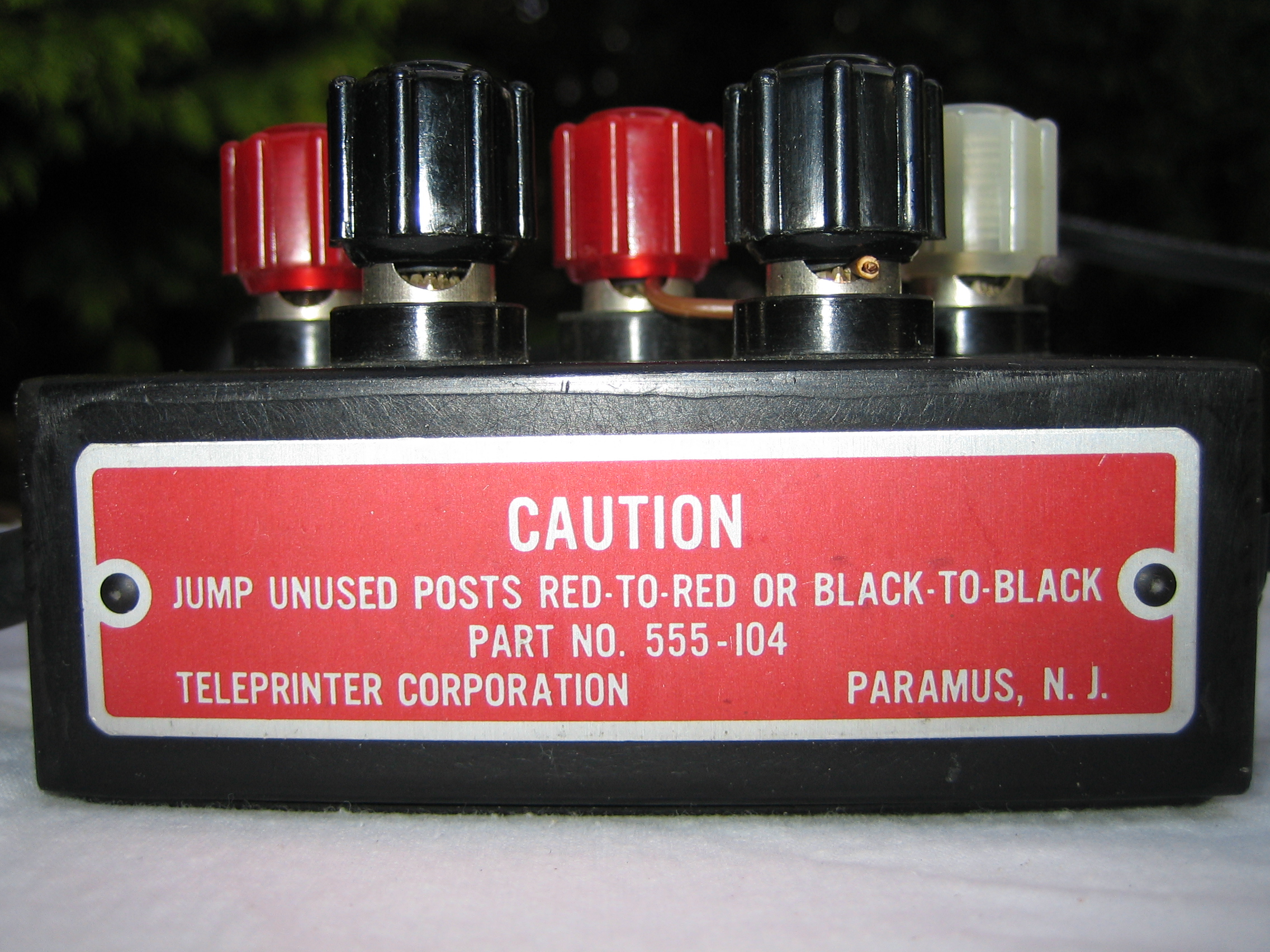

So I had to build everything myself. Unfortunately I didn't find any red
and white BellingLee "Piercing posts".

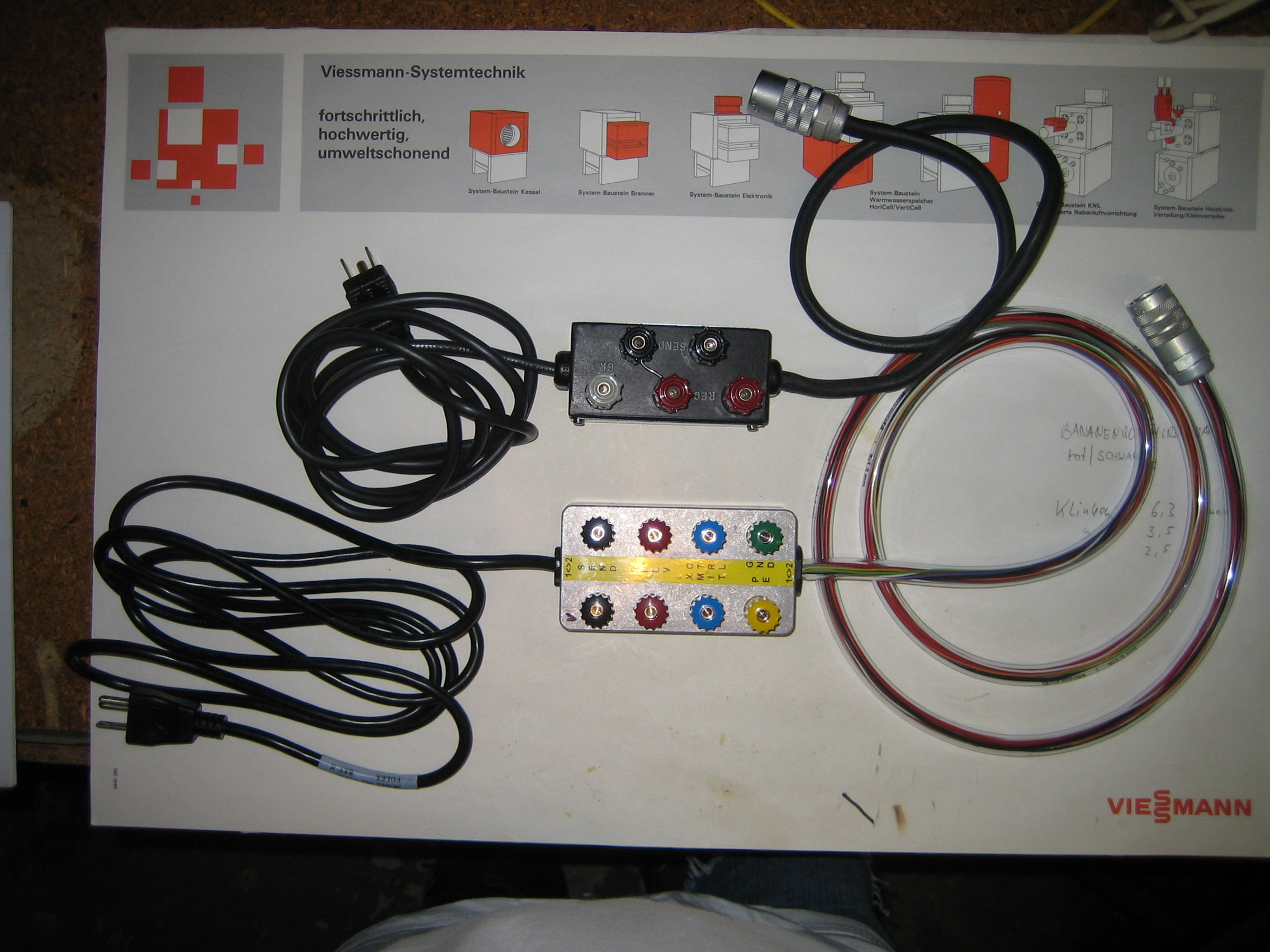

The "cable" consists of matching (current density) individual cores in a
PVC hose, almost like the original.

Goog luck, hve fun,
Olaf


Am 13.03.2021 um 01:18 schrieb Roy Morgan:
> A long time ago I found I could buy the right connector for a Mite but it was going to cost me over $50.00.
>
> Roy Morgan
> K1LKY Western Mass
>
>> On Mar 12, 2021, at 5:18 PM, Robert Goff <robert.h.goff at gmail.com> wrote:
>>
>> Hi,
>>
>> Can anyone find the Amphenol number for the power and signal connector
>> on the MITE teleprinter - specifically the TGC-14 version, which is a
>> different connector than UGC-38 thru 41.
>>

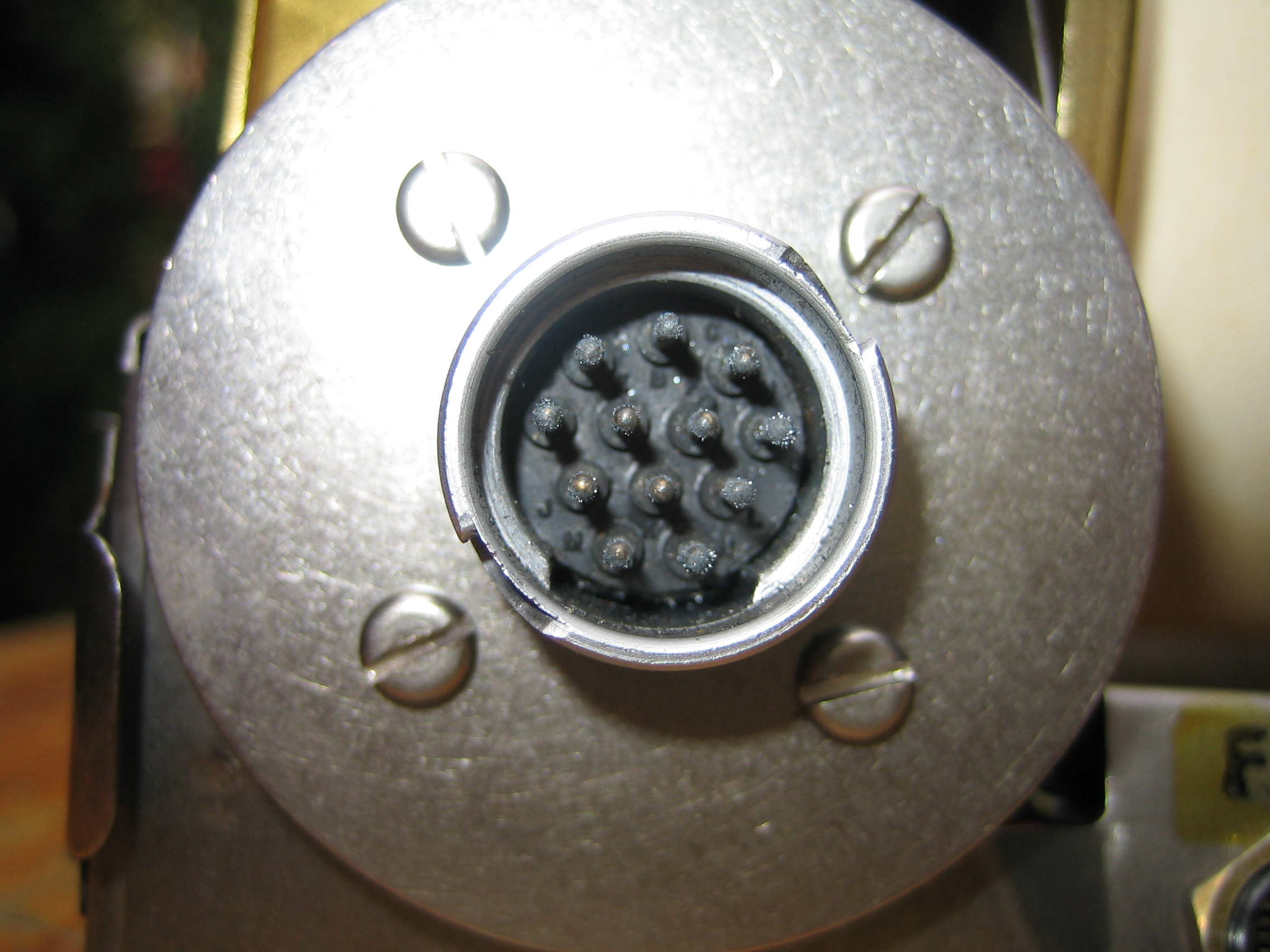

>> Could not find any sort of part number in the manual. It's MS type, 12
>> pin in rows of 3-4-3-2.
>> I'm planning on making a call to Bill Perry, but would like to give
>> him a little more information-especially since all MITEs are not the
>> same.
>>
>> Thanks,
>> de Robert W7MKA
>> Grants Pass, Oregon
