[GreenKeys] Back on the air!

[Harold Hallikainen]

I'm back on the air after our move from Arvada CO to Tucson AZ. Right now
I have a random wire in a tree for operation on 20 meters. I can run FSK
at about 70 watts.

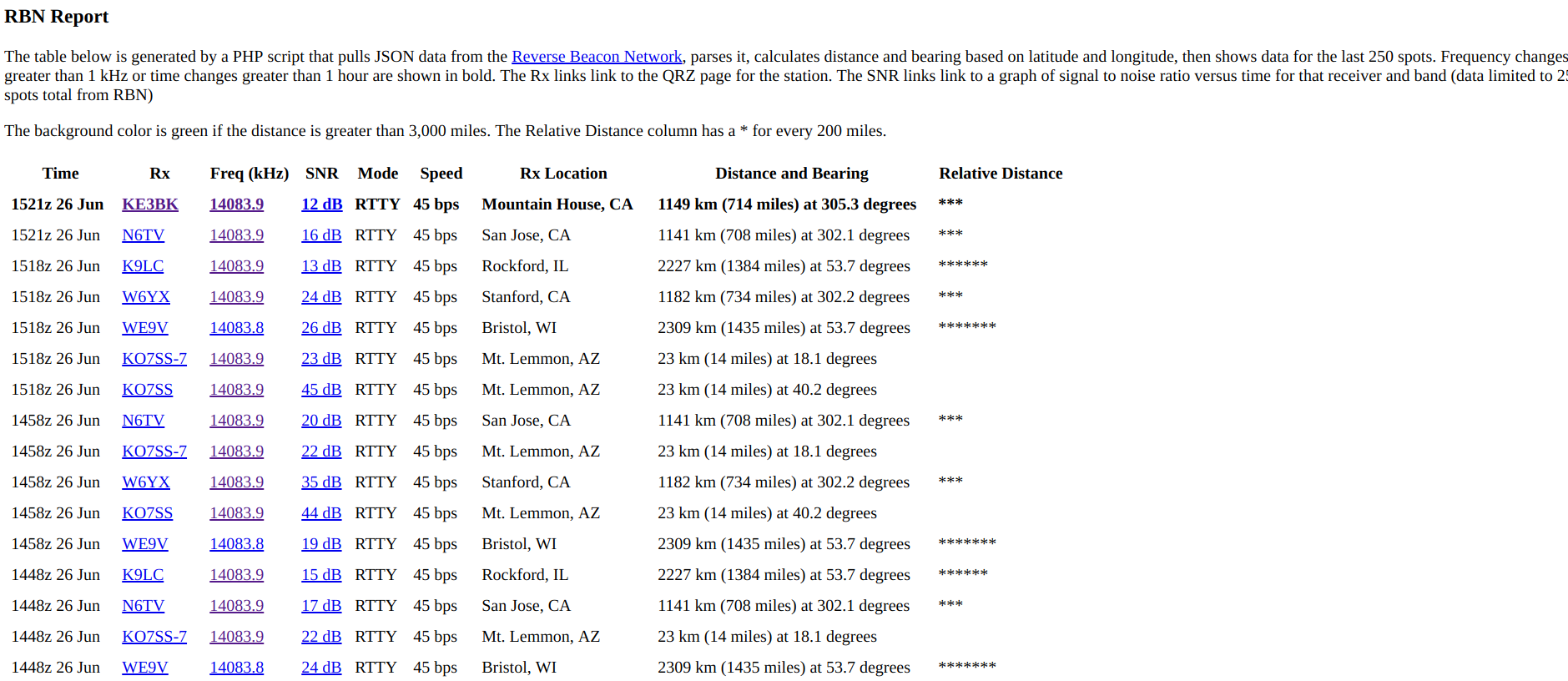

I've made some updates to my RBN report on https://w6iwi.org . A
screenshot of it is attached as RbnReport.png .

The relatively new stuff is the links of each line. They are:

Rx: Links to the QRZ page for that station.

Freq: Links to the KFS KiwiSDR on the antenna pointing southeast (towards
me in Tucson AZ). Selects the frequency and mode (CW or RTTY) and selects
and configures the decoder for CW or RTTY.

SNR: Links to a graph of the signal to noise ratio on this band on this
receiver over the last 250 spots. This often has a limited amount of data
points since the 250 spots may be scattered among many different
receivers. The graph can be zoomed in by dragging across an area with the
left mouse button down. A right click in the graph returns to full scale.

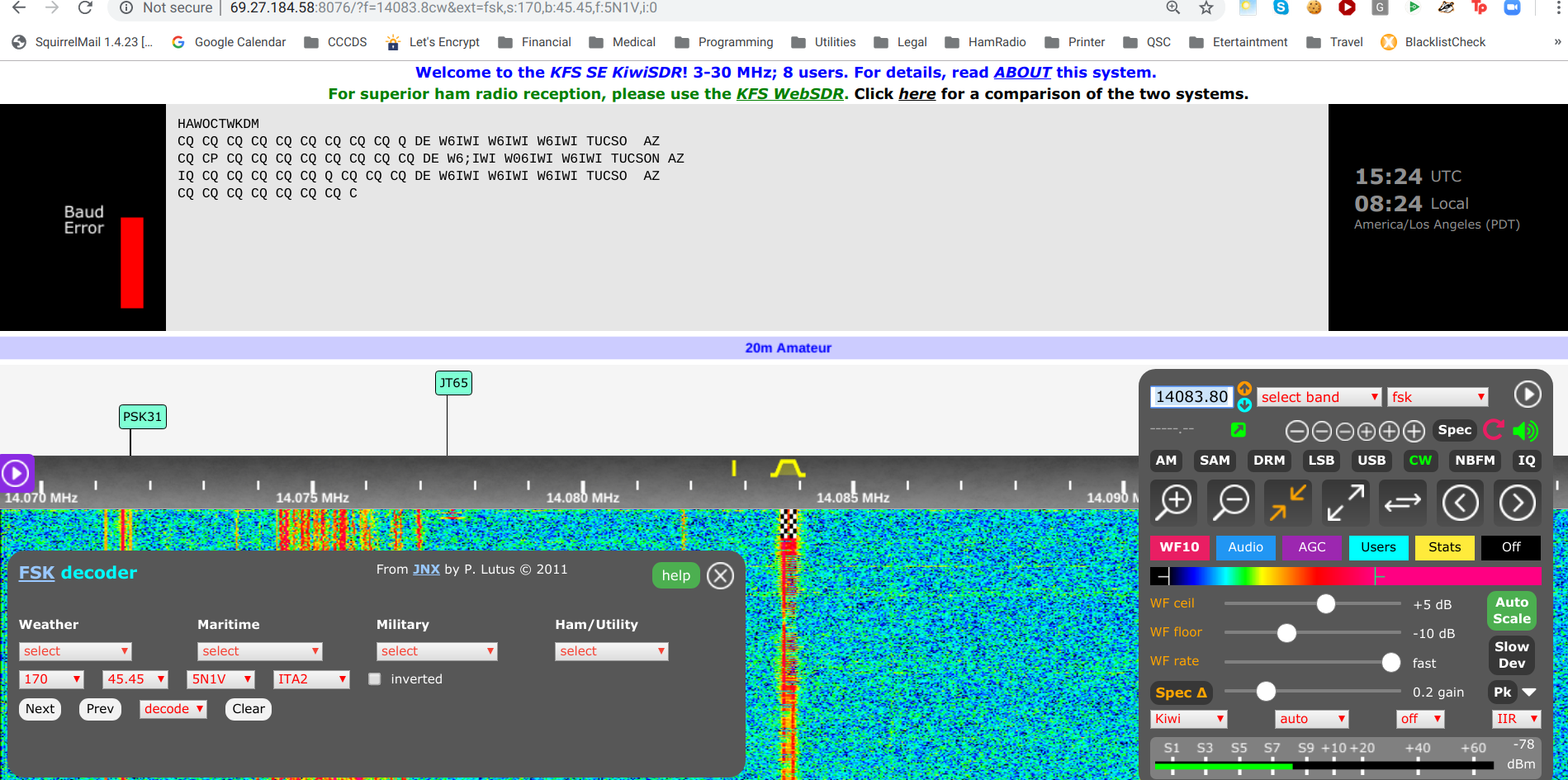

Also attached is a screenshot of the KFS Kiwi SDR showing it decoding my
signal.

In the move, something went wrong with my 14 TD, so, right now, I have to
hold down the clutch release for it to send. But, it works!

I'll be working on household project today, but the rig will be on
autostart on 20 meters (see https://w6iwi.org/rtty/ for frequency).

Harold
https://w6iwi.org







--
FCC Rules Updated Daily at http://www.hallikainen.com
Not sent from an iPhone.
