[GreenKeys] Ongoing Model 15 Issues

[John, W9DDD]

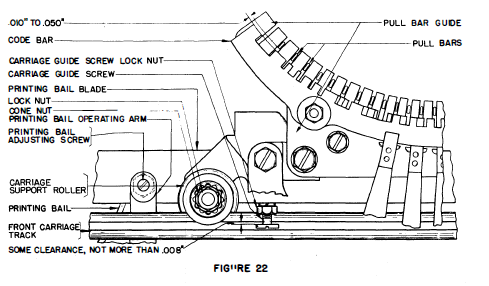

Maybe the carriage guide screws need adjusting?

---
----
The above comments or recommendations are SWAG. Use at your own risk.
John, W9DDD

On 7/27/2021 10:45 AM, Steve Garrison wrote:
>
> Well here I am again!
>
> Is there an adjustment that I’ve been unable to discover that might
> explain the back and forth ‘rocking’ (only word I could come up with)
> of the carriage when the M15 printing?  Hope that is clear enough.
> I’m not referring to rocking where the left and right sides of the
> carriage seem to pivot around the ‘Z’ axis, but where the front and
> back of the carriage seem to pivot around the ‘X’ axis.
>
> The Basket Guide Roller Assemblies on both sides of the carriage do
> not stay in contact with the Lower Track as the Printing Bail Blade
> moves back and forth, causing the rollers to lift as the bail moves to
> the rear and to come back in contact as the bail moves forward.
>
> Maybe this is normal, but, at least to me, does not seem like it
> should be.   I just haven’t had as much experience with 15/19s to know.
>
> Can anyone advise?   John Nagle are you out there this morning?
>
> Steve G./N4TTY
>
>
>
