Peter,



Whatever you do, do NOT discard the two ribbon spools.  Those spools are
just about unobtainium, so you'll need to wind a new ribbon on those spools
as each ribbon gets worn out.



Steve G./N4TTY



From: greenkeys-bounces at mailman.qth.net <greenkeys-bounces at mailman.qth.net>
On Behalf Of Peter Holtham
Sent: Thursday, July 15, 2021 6:14 AM
To: GreenKeys at mailman.qth.net
Subject: [GreenKeys] Kleinschmidt TT-4C



Hello,



This is my first post to the list, I have been active on rtty via MMTTY for
sometime and have finally now acquired some real hardware.



An estate sale locally turned up a Kleinschmidt TT-4C/TG for A$50, one of
five once owned by an ex Telecom Australia employee. The other four went to
re-enactors & museums. There was mountain of other scrap tty gear and other
ham radio stuff, plus apparently 2.5 tons (!) of teletype paper that went to
the dump before I got there.



The TT-4 is in aboslutely immaculate condition, and as far as I can see, has
had next to no use at all. When I popped off the immersion cover the smell
of the fungicide nearly knocked me out. A plate fastened inside stated it
was supplied by Amalgamated Wireless Australia (AWA) to the Australian Army,
in 1976.



I quickly built up a loop supply and a terminal unit (from the design by
Eric Volpe using a 2211 chip) and hooked everything up to ITTY. After a bit
of fiddling around (adjusting the motor speed using the tuning fork etc) I
started getting perfect copy.



So now a question. I have downloaded the relevant technical manuals for the
TT-4/C including the service manual TM-11-5815-206-34. Unfortunately all the
photos/diagrams are unreadable, completely black at worst or with the
numbers of the lubrication points visible but not the points themselves at
best. Does anyone have readable scans they could please provide me with?



I would like to check all the lubrication if possible before I use the TT-4
too much. Thanks very much.



Also a big thank you to the provider(s) of ITTY for providing me something
to demonstrate the machine with.

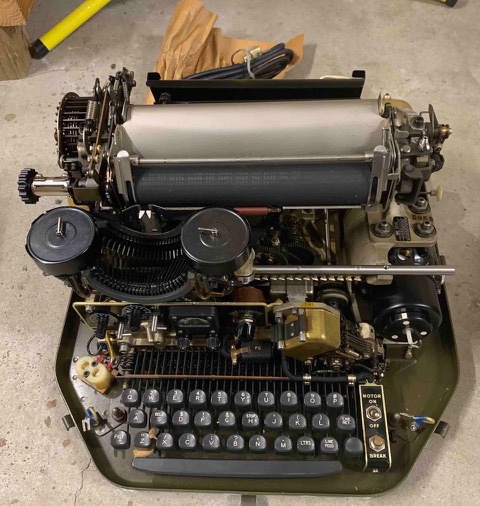

I attach a photo of the TT-4 as received standing on the floor of my garage.
All the tapes were still tied around the keys and all the variious keyboard
and platten locks were in place as described in the user manual. The power
cord was still wrapped in brown paper. The spare gears for 100 wpm were all
in place, as well as the spare fuses and the tuning fork.



regards



Peter VK4COZ in Brisbane, Queensland
