[GreenKeys] ARRL Handbook TU Limiter Circuit wanted

[Ralph Irish]

Alf

This might not be exactly what you specify below, but it might be of use.

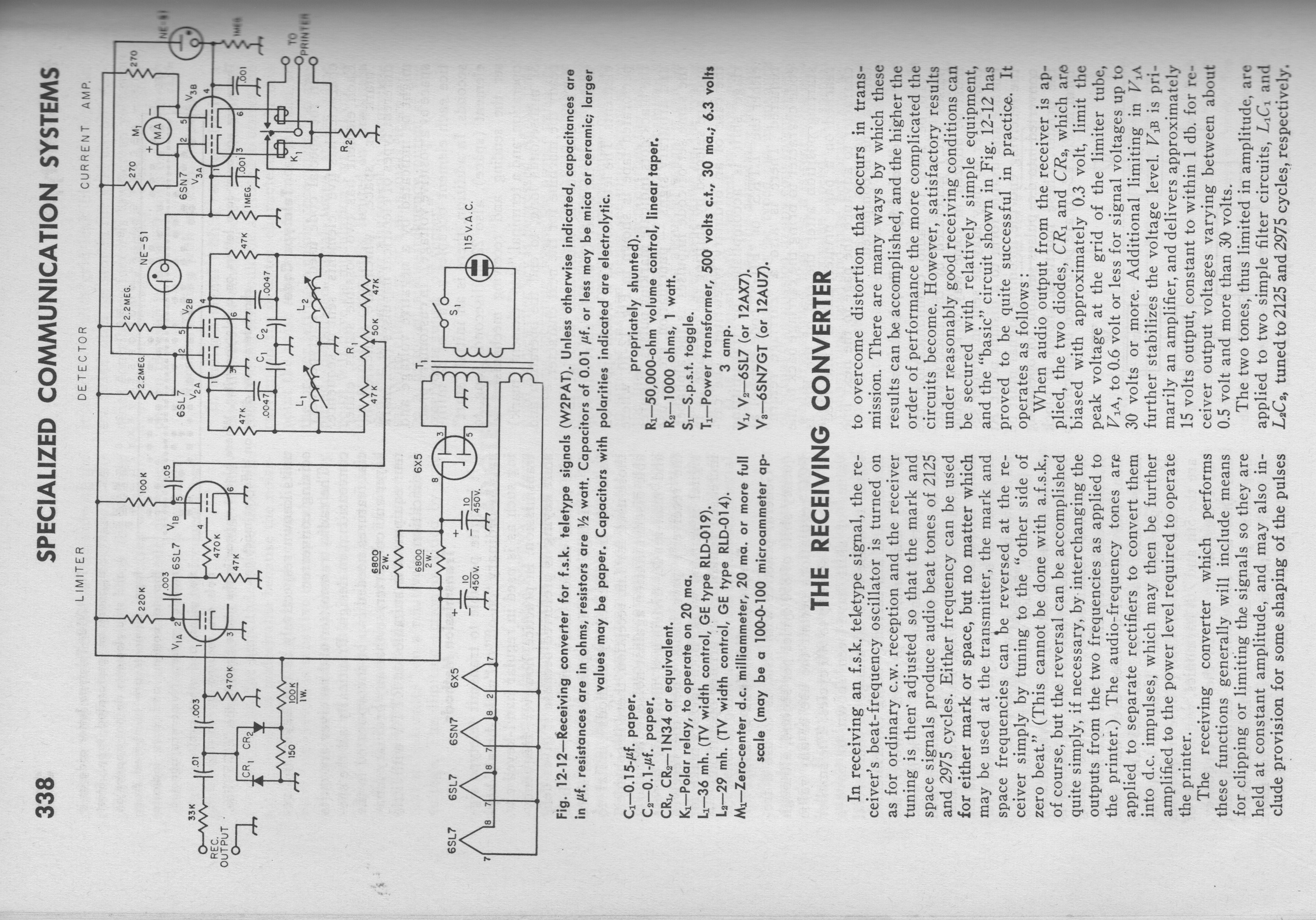

The Limiter shows cathodes both grounded, but is a different tube.  It is
a dual triode, though.

This came from the 1961 ARRL Handbook, the oldest one I own, other than
one from 1939, and I didn't even bother to look there!

Hope this helps some.

Ralph - W8ROI






-   -   -   -   -   -   -   -

On Jan 20, 2021, at 6:55 AM, Alf Fisher wrote:

> Hi folks,
>
> Please can someone find me a scan of the the input Limiter circuit used in a TU in an ARRL handbook - probably around 1955 to1960.
>
> It uses a double triode (6SN7 or 12AU7) with its cathodes connected together and the output is taken via a transformer.
>
> I have an article that claims to use that circuit but the there are errors in the drawing such as the grid of the right hand half isnt connected to anything and the transformer secondary feeds mark and space filters via pot (presumably for balancing) but there are no terminating resistors so the pot wont do anything.
>
> 73,
> Alf
> G3WSD
>
> ______________________________________________________________
> GreenKeys mailing list
> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:GreenKeys at mailman.qth.net
>
>>>> Jordan Spencer Cunningham's GreenKeys Search Tool: https://teletype.net/gksearch
>>>> 2002-to-present greenkeys archive: http://mailman.qth.net/pipermail/greenkeys/
>>>> 1998-to-2001 greenkeys archive: http://mailman.qth.net/archive/greenkeys/greenkeys.html
>>>> Randy Guttery's 2001-to-2009 GreenKeys Search Tool: http://comcents.com/tty/greenkeyssearch.html
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html
> Message delivered to w8roi at wowway.com

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20210120/9e9e0317/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: RTTY Limiter.jpeg
Type: image/jpeg
Size: 1648269 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20210120/9e9e0317/attachment-0001.jpeg>
