[GreenKeys] WU 9100 wiring cabinet

[John W9DDD]

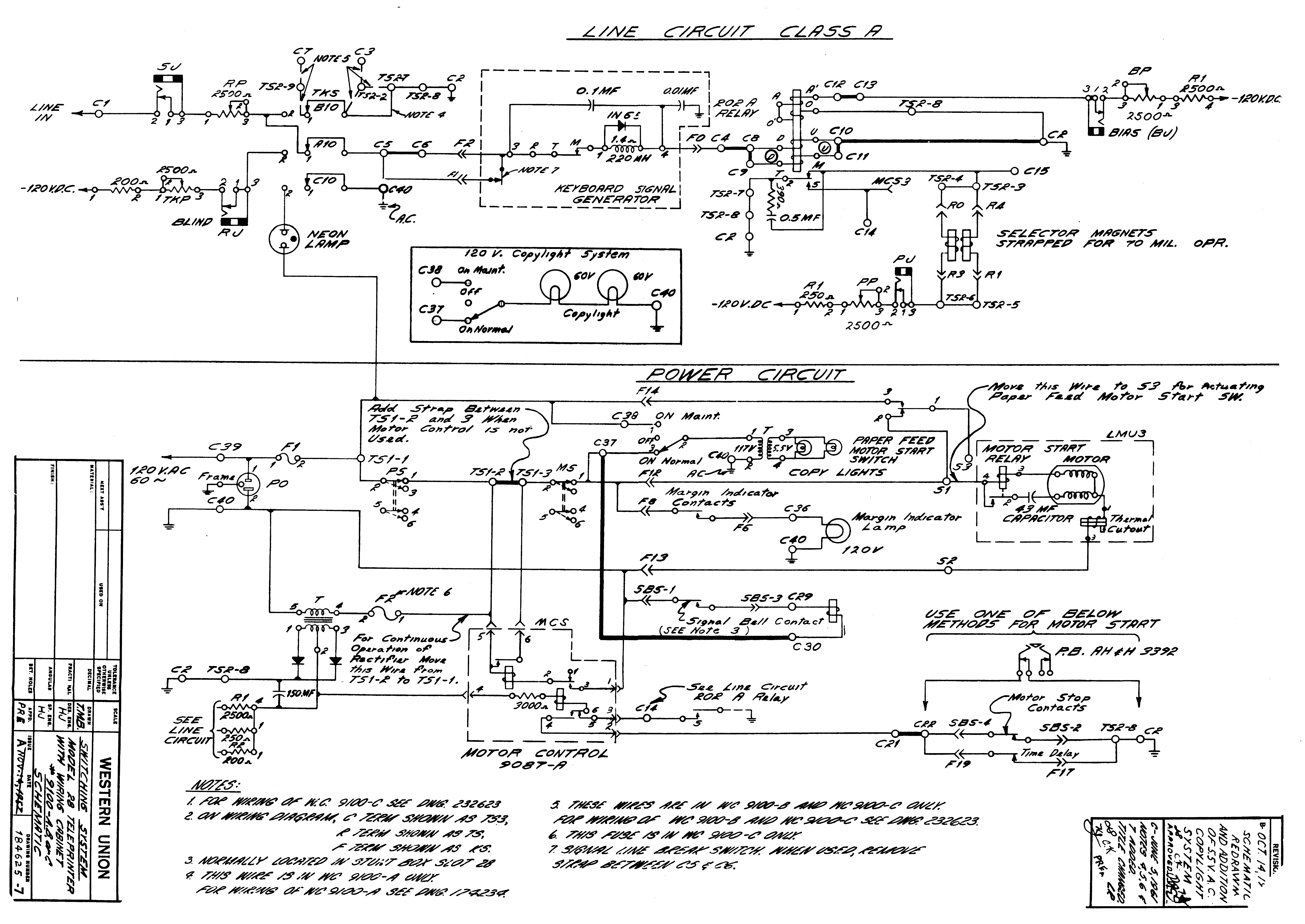

I don't know if many have the Western Union cabinets with their version of a LESU, but I chose this out of the large file of WU drawing as the,to me, most understandable of those for 9100 wiring cabinets.  Got it stitched from two pages into one that is easier to read on the screen.  If one wanted to print, then you might have better results printing pages 30 & 31 of the big PDF and manually stitching, YMMV.

John, W9DDD



-------------- next part --------------
A non-text attachment was scrubbed...
Name: pages 30 and 31 combined.png
Type: image/png
Size: 670908 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20211205/294d214e/attachment-0001.png>
