[GreenKeys] Model 28 "Typical" wiring diagram

[Ralph Irish]

G/K Gang

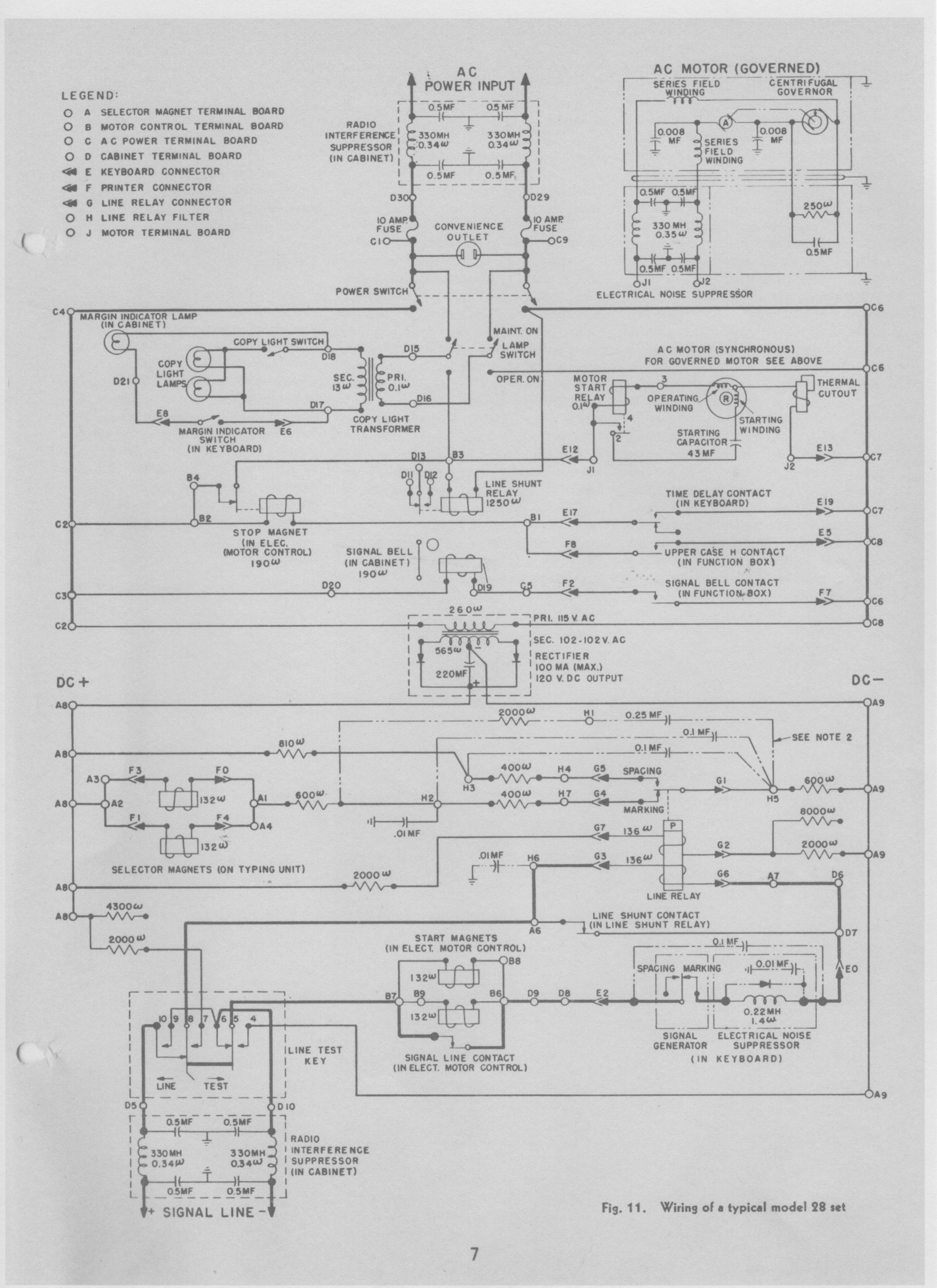

I found this diagram in some Teletype Manual, as might be
indicated with the two holes punched in the original page.

This is no more than a 'starting point' for someone who is
trying to get a Model 28 up and running satisfactorily in
their shack.

PLEASE  don't look at it as the 'last word' and what
everyone needs to follow.  It might be useful for some and
not others.

I scanned it at 240 DPI and it looks fairly 'clean'.

Hope it is of use to some on G/K.

73,

Ralph - W8ROI

-   -   -   -
