[GreenKeys] Seeking model 15 platen crank

[Jones, Douglas W]

On Friday, April 9, 2021, 01:04:39 PM EDT, Joe Clanin <macbax1 at gmail.com> wrote:

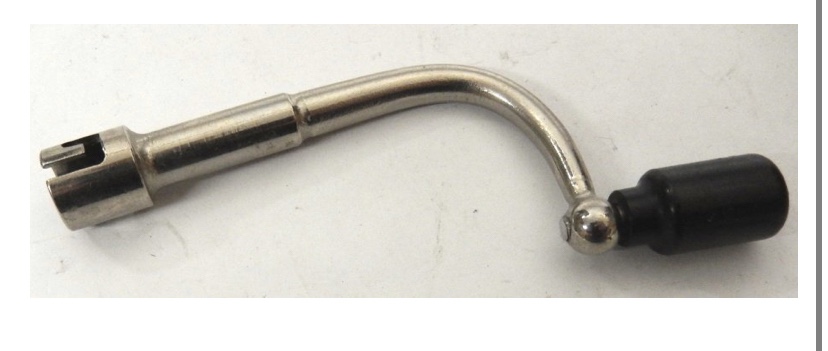

> For what it's worth, I have attached three pictures that compare a Kleinschmidt and a Teletype crank directly.

The photos make three things clear:

1) The TTY and Kleinschmidt cranks are incompatible.
2) The Kleinschmidt crank can be made into a TTY crank by cutting off the large diameter coupling and machining a TTY compatible coupling into the remains.  It might be doable with hand tools and it can certainly be done with a milling machine.
3) If you've got a lathe, a ball-turning attachment and a keyway cutting attachment, you can make either crank from scratch from a chunk of steel bar plus a chunk of wood for the handle.

Item 3 doesn't get you a chrome or nickel plated result, that's another step, but in terms of function, I'd be quite happy with a naked steel or a blued-steel result (bluing is easy).

          Doug Jones
          jones at cs.uiowa.edu
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image0.jpeg
Type: image/jpeg
Size: 58235 bytes
Desc: image0.jpeg
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20210409/53ef6968/attachment.jpeg>
