[GreenKeys] Polar relays

[til128 at juno.com]

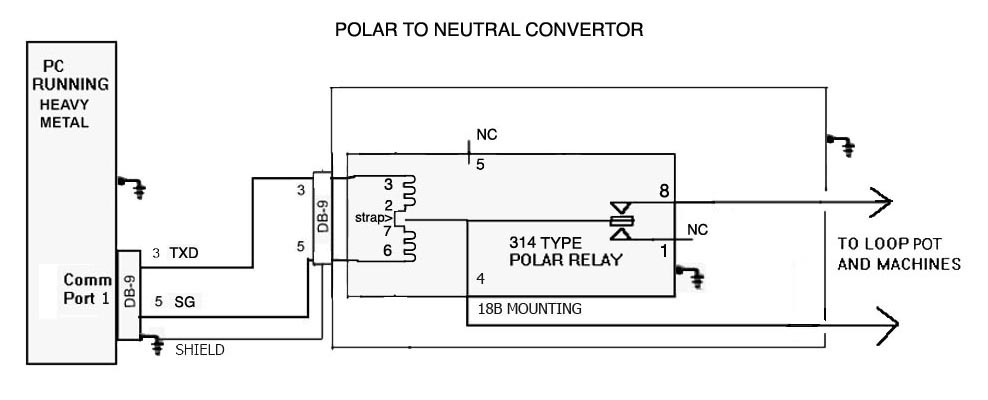

Hi all: If I could I would like to add my 2 cents to the fray of polar relays----a LONG time ago, Jack Hart (SK) taught me to use a polar relay for driving the TT loop from the RS232 port, and I thought I would share it. I don't know if this is his or someone else's design. It mentions a 314 relay but will work for all. I still use it for MMTTY and HeavyMetal. See Attached. Tom WB2TTY

____________________________________________________________
Choose to be safer online.
Opt-in to Cyber Safety with NortonLifeLock.
Plans starting as low as $6.95 per month.*
https://store.netzero.net/account/showService.do?serviceId=nz-nLifeLock&utm_source=mktg&utm_medium=taglines&utm_campaign=nzlifelk_launch&utm_content=tag995&promoCode=A23457
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20210406/00344e16/attachment.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Polar-NeutralConvertor.jpg
Type: image/jpeg
Size: 62981 bytes
Desc: Polar-NeutralConvertor.jpg
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20210406/00344e16/attachment.jpg>
