[GreenKeys] Model 15 keyboard question

[ad7i]

Well, shoot!  I should have included links to the photos and not the photos
themselves.

Sorry about that.  The photos below are linked via Dropbox.  If you are
asked to subscribe to dropbox just go to the bottom of
the nag screen and click "no thanks".  That should take you to the photo.

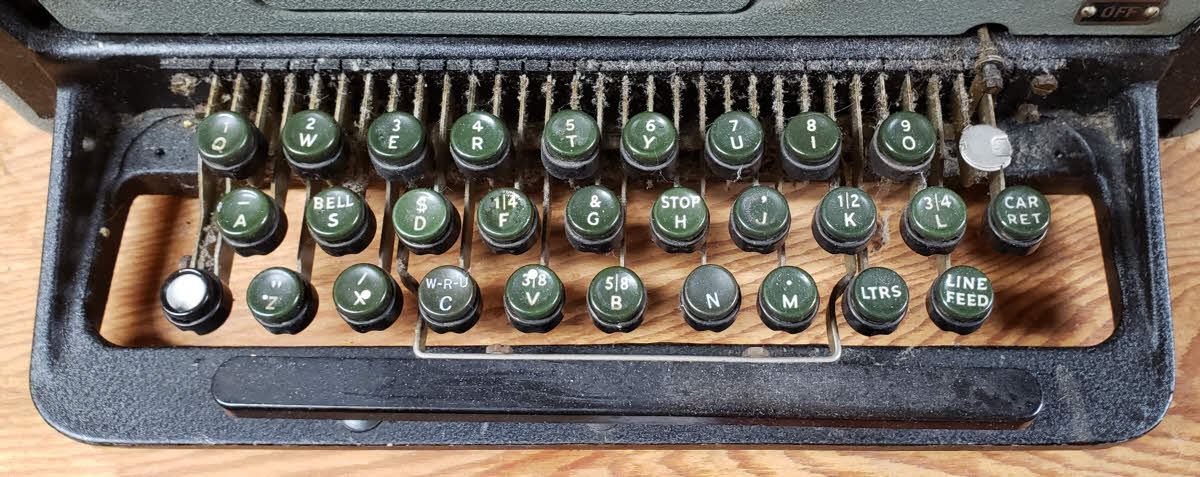

My model 15  keyboard :
https://www.dropbox.com/s/hufx5aqm4gzvcqp/tty-15-key-x1200.jpg?dl=0

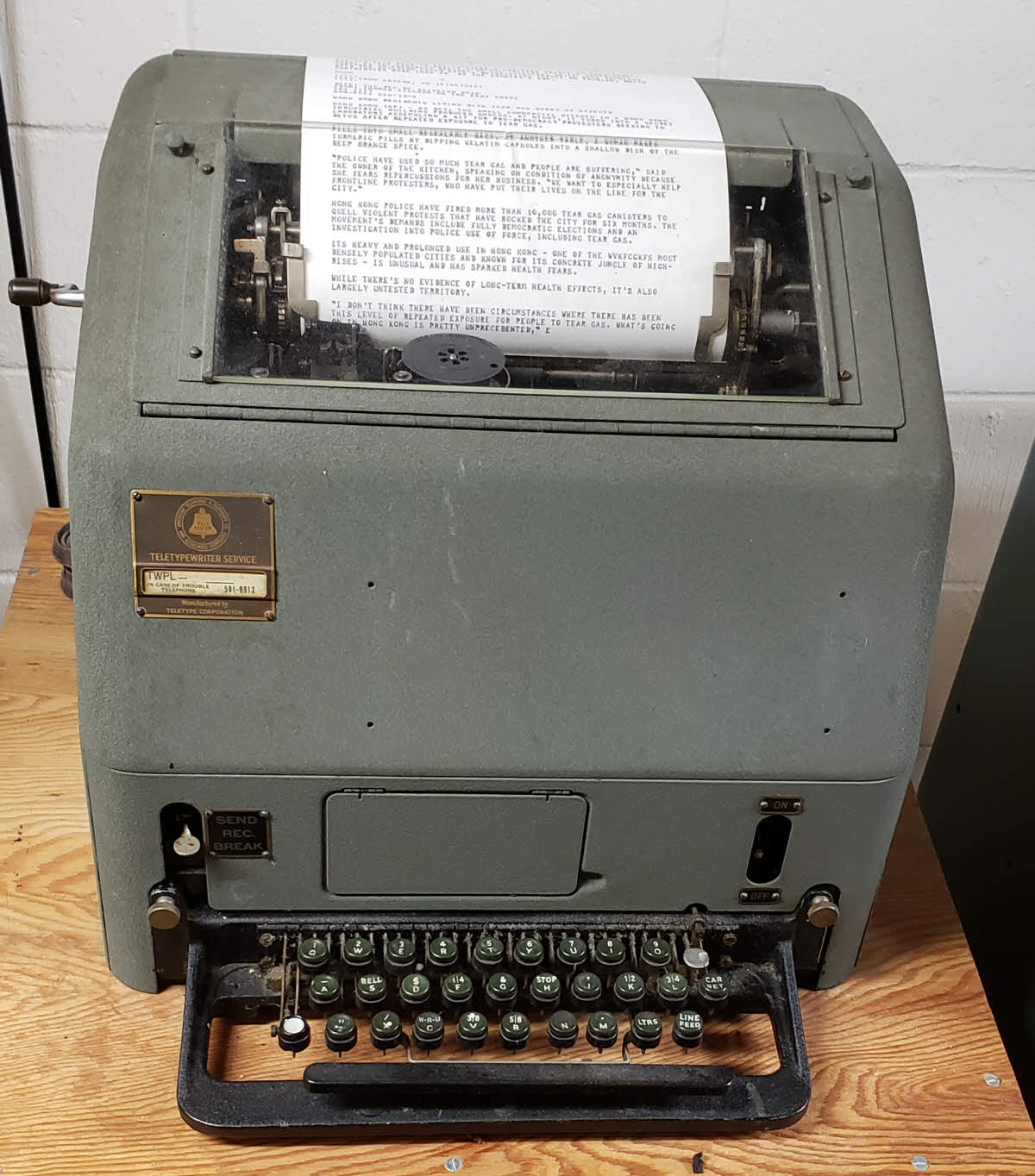

My model 15 cabinet:
https://www.dropbox.com/s/kf93zxccniymgjj/m-15-ttyx1200.jpg?dl=0

Paul, ad7i



On Sat, May 23, 2020 at 4:18 PM ad7i <ad7i at ad7i.net> wrote:

> Greetings --
>
> I'd like to ask fellow Greenkeyers for some advice regarding what to do
> about my Model 15 keyboard (photos pasted at the end of this message).
>
> Back in about the late 1990s fellow Bell Labs alum John Sheetz K2AGI gave
> me a very nice Model 15 TTY.  It prints well and I never really paid much
> attention to the keyboard, other than to determine that it initially
> worked.  In most all cases I've only used a PC to drive the TTY, operating
> it pretty much as an RO device.  And now I also use it to print ITTY.
>
> The cabinet has a placard that indicates Bell System Teletypewriter
> service.  I don't know if that indicates the heritage of only the cabinet,
> or perhaps also the typing unit and keyboard.  The typing unit prints all
> the expected standard punctuation [ . , / ? ; : ' "  ! # $ & (  ) - ] in
> the expected places.  The typing hammer for J has an apostrophe and FIGS-J
> prints apostrophe.  The hammer for S also has an apostrophe but FIGS-S
> rings the bell.  All of that is as I would expect.
>
> But as you can see from the photos, my keyboard has some oddities.  First,
> it's missing the blank key all together.  Second, keycaps are missing from
> FIGS and P.  Third, I have fractions on keys F, K and L, instead of normal
> punctuation.  I'd like to somehow get the keyboard back to a condition that
> matches the typing unit.
>
> So my questions for Greenkey members are:
>
> 1.  What should I do about the missing BLANK key?  Was it common to omit
> the BLANK key from Model 15s?  I tend to do a lot of testing with my TTYs,
> so a blank key would be handy.  If I had the correct parts is it likely
> that I could I install the bank key myself?  Is it relatively easy to do?
>
> 2.  For the missing and fraction keycaps, should I simply replace those
> keycaps or should I try to find a complete set of all keypads, to give the
> keyboard a more consistent look?
>
> 3.  Or would I be better off trying to find a complete replacement model
> 15 keyboard in order to get things back to normal?
>
> I'd be grateful for any comments or suggestions you may care to offer
>
> 73, Paul, ad7i
>
>
>
> [image: tty-15-key-x1200.jpg]
>
>
>
> [image: m-15-ttyx1200.jpg]
>
> ---ooOoo---
>
>
>
>
