[GreenKeys] 28KSR question...

[E.]

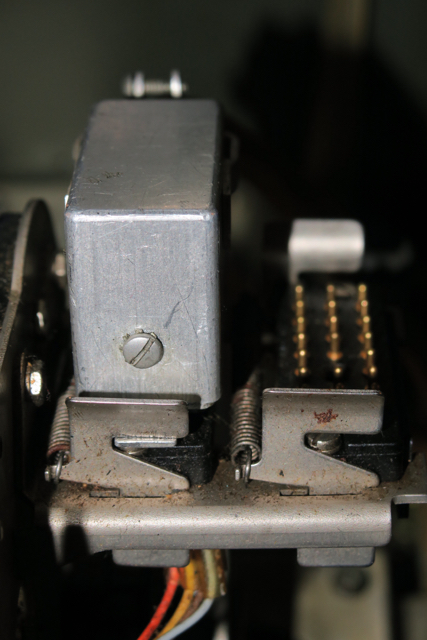

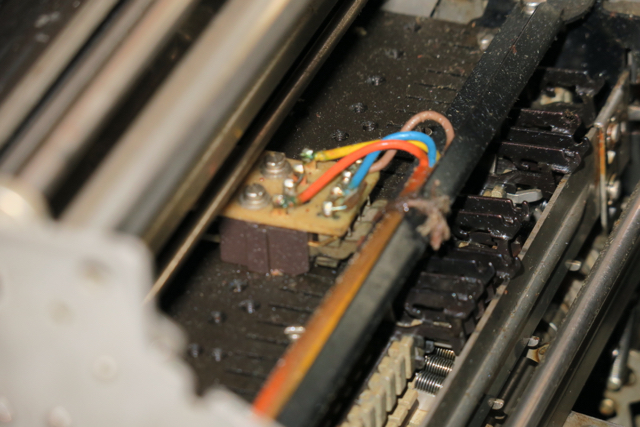

Thanks all for all the replies ^^ !  I believe the bell contact board is this little guy in the photo attached, right?  It appears that the wires from it go to the empty connector on the right - in the second photo (attached)… so it really goes no where.  If I’m looking at it correctly - why is this???  Is there a way to rectify the situation ;p ?  Will look at the wiring diagram after supper…..
