[GreenKeys] Got new Teletype writer,need help to make it work.

[Steve Garrison]

Jason, do you have the PCB from Nagle, or are you trying to build the device yourself?  John used to have the board and a case you could get then source the parts yourself.  Most of the components are surface mount and except for one very small SMD part I was able to get everything else mounted myself.  The one part I had done by a professional.  So far I have four of these devices and they work like a charm!



Steve G./N4TTY



From: greenkeys-bounces at mailman.qth.net <greenkeys-bounces at mailman.qth.net> On Behalf Of Jason
Sent: Tuesday, July 28, 2020 3:48 AM
To: GreenKeys at mailman.qth.net
Subject: [GreenKeys] Got new Teletype writer,need help to make it work.

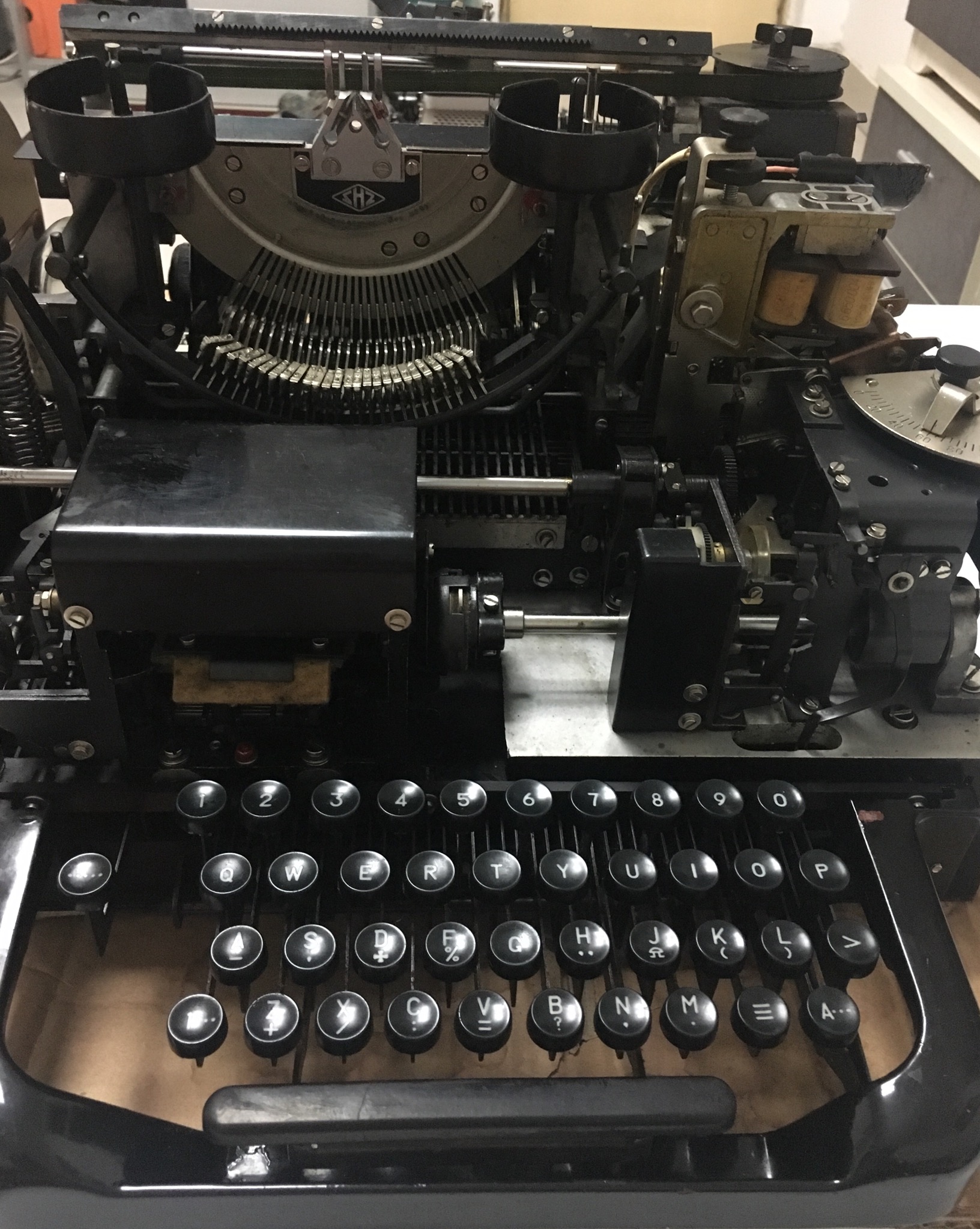

Hello ,I just got a teletypewriter ,it seems to be a imitation of RFT T51 which was an imitation of  the Siemens T37.

I love these mechanical computing things,and want to make it work again.

I'm trying to make a ttyloopdriver <https://github.com/John-Nagle/ttyloopdriver> (https://github.com/John-Nagle/ttyloopdriver) to connect it with my computer.But because of lack of hardware design knowledge,I encountered many problems.Last night after running awhile I saw smoke rising from the motor remote control part.

Another question is this one needs 40mA current to work,I want to know what if line in a 60mA current loop which is supplied by ttyloopdrive board.

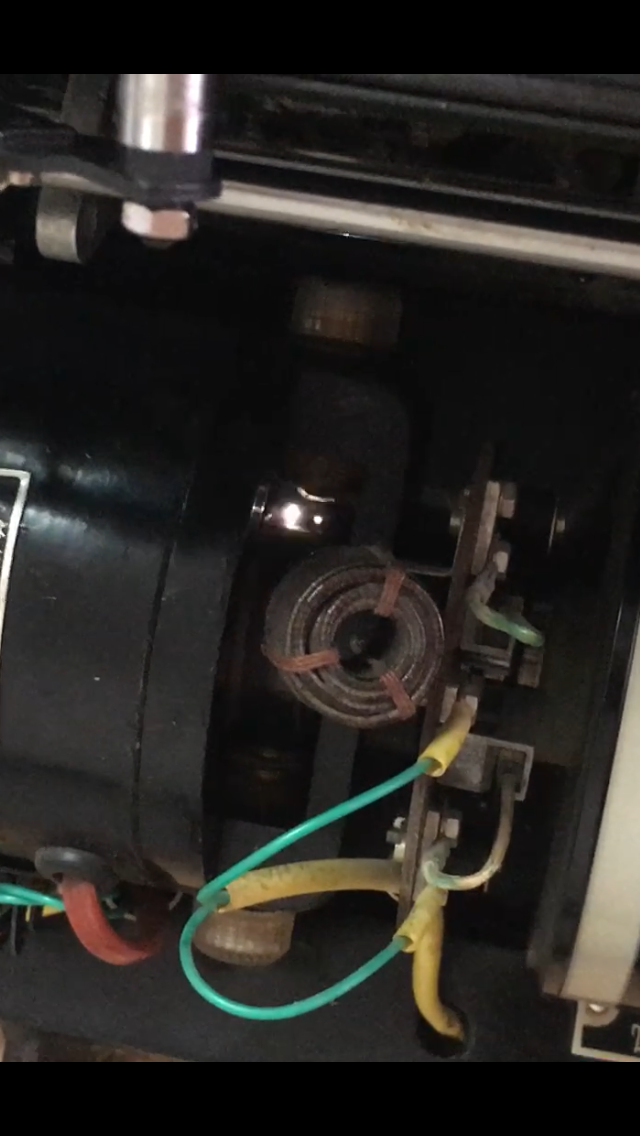

the motor runs with sparks in the carbon brush.



Thanks if you have any advice.
