[GreenKeys] KY-468A/FGC Pictures

[Robert Goff]

Here are a couple pictures of the keyer.

 Looks like there are three circuit cards inside and a terminal block
on the other end.  One of the two connectors on top is a 3-pin 120VAC
in (with a regular NEMA 5-15 plug on the end of the cord.)  The other
is an Amphenol 18-8P with fork terminals on the other end.

Ring any bells?

Thanks,
Robert
-------------- next part --------------
A non-text attachment was scrubbed...
Name: KY-468A top.JPG
Type: image/jpeg
Size: 330366 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20200216/cab7dfc9/attachment-0002.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...

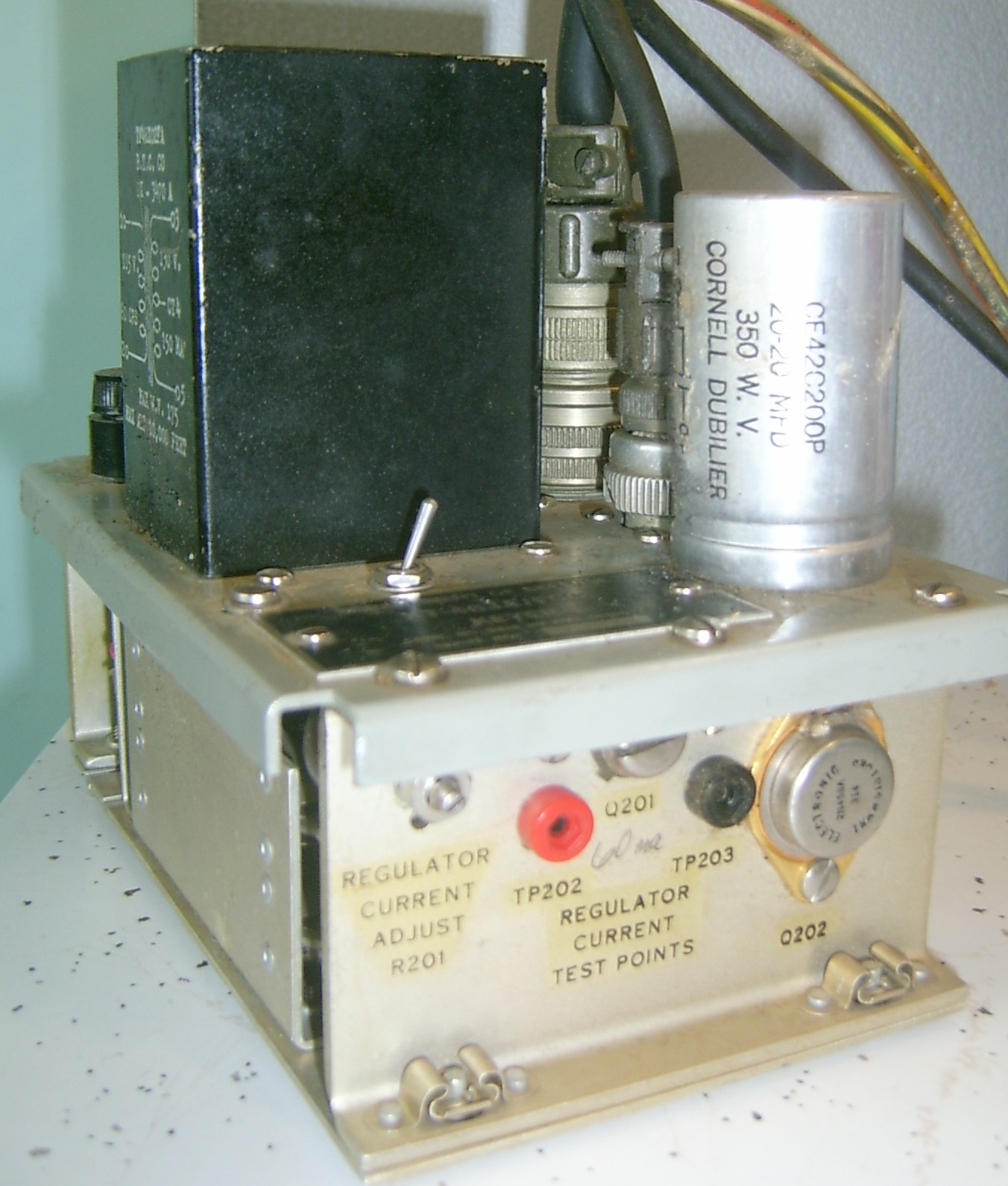

Name: KY-468A side.JPG
Type: image/jpeg
Size: 360219 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20200216/cab7dfc9/attachment-0003.jpe>
