[GreenKeys] 33ASR Nameplate

[Eric Moore]

The nameplate is 1mm thick precisely.

On Wed, Feb 12, 2020, 12:03 Paul Heller <paul0926 at comcast.net> wrote:

> Hi Mike,
>
> I don’t have the ability to measure the thickness at the moment, but here

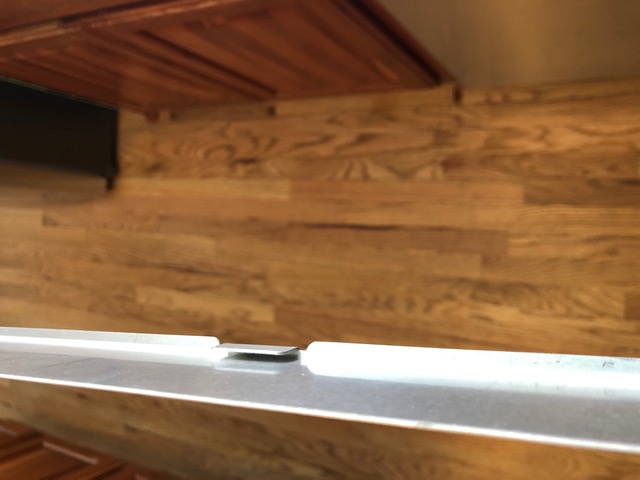

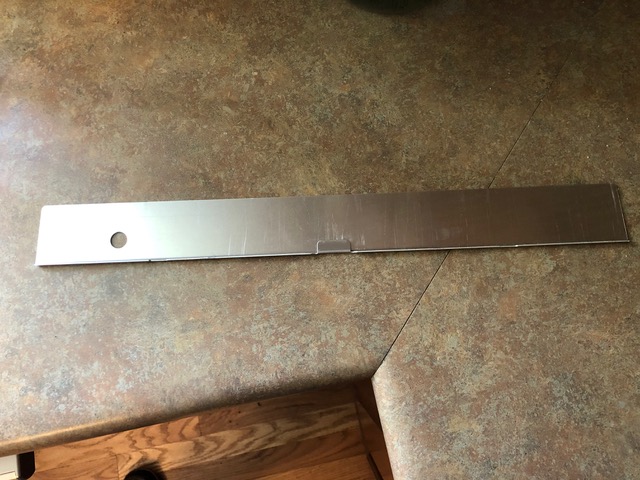

> are a couple of photos.  There is not much to it. There is a lip on the
> bottom that fits over the two protrusions on the machine (see photo), and
> there is a tab bent up in the middle. That’s what holds it.
>
> Question on how you hook it to the PDP-8E. My PDP-8E has the right card in
> it with a flat molex connector with 8 or so connectors.  But he wiring and
> colors have me stumped. Could you share some info on how to wire things up?
> I assume four wires, TX and RX. But which is which? Not sure about the
> punch control.
>
>
> Paul
> W2TTY
> i-Telex: 80003
>
> ITTY:   HTTP://INTERNET-TTY.NET:8000/ITTY
> <HTTP://internet-tty.net:8000/ITTY>
> ITTY100:   HTTP://INTERNET-TTY.NET:8010/ITTY100
> <HTTP://internet-tty.net:8010/ITTY100>
> AUTOSTART:  HTTP://INTERNET-TTY.NET:8030/AUTOSTART
> EUROPE:  HTTP://INTERNET-TTY.NET:8040/EUROPE
> <HTTP://internet-tty.net:8040/EUROPE>
>
>
>
>
>
> On Feb 11, 2020, at 5:48 PM, Gil Smith <gil at baudot.net> wrote:
>
> This was caught by the greenkeys system as a bounce for some reason -- I
> am forwarding this on.
>
> gil
>
> gil smith, AF7EZ
> greenkeys moderator
> gil at baudot.net
>
>
> -------- Original Message --------
> Subject: 33ASR Nameplate
> From: "mike" <m.zahorik at sbcglobal.net>
> Date: Mon, February 10, 2020 1:08 pm
> To: "'GreenKeys'" <greenkeys-bounces at mailman.qth.net>
>
> I have a 33ASR that I use with my DEC PDP8E computer. It is a rescue from
> the dumpster. It toke me a year or so to get it to work and have been using
> it for a few years. I do not have the front nameplate and thought that I'd
> like to add one to make it look a little better, but have not been able to
> find one. I thought of making my own from some sheet aluminum. I'm not
> sure of how it mounts. There doesn't seem to be any mounting screws. Could
> it fit in the slots at the bottom and get pinched in somehow? How thick
> is the original nameplate? Thanks
> Mike Zahorik
> (414) 254-6768
>
