[GreenKeys] M28ASR Wiring

[Steve Garrison]

Some updates!



I have now seen some notes about 20mA vs 60mA operational changes that had
to do with some wiring changes in the line relay and line test switch areas.



But I think I am going to just by-pass all that and wire the A-Block as

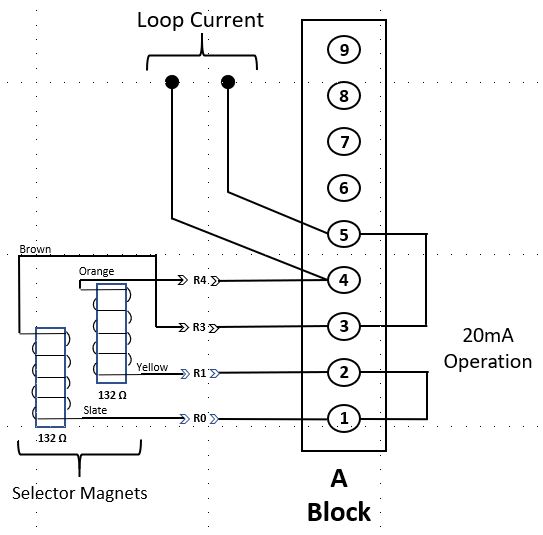

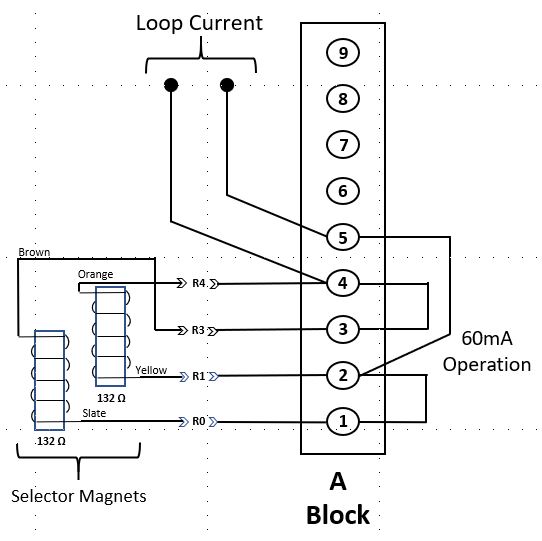

shown in the two attached pics.  One for 60mA and the other for 20mA.



Anyone with any comments.  Boy does that open the door!



Steve G./N4TTY
