On 8/5/20 6:22 PM, Larry Goga wrote:
> I highly recommend the ???K0TTY Motor Controller??? circuit.
I modified John's auto start to take into effect that the idle state
on i-Telex is Space, not Mark.

1. Motor is turned on within 1 mS of loop activity.
2. Motor is turned off after ~220 mS of loop inactivity.


--
"I am a river to my people."
Jeff-1.0
WA6FWI
www.foxsmercantile.com

-------------- next part --------------
A non-text attachment was scrubbed...

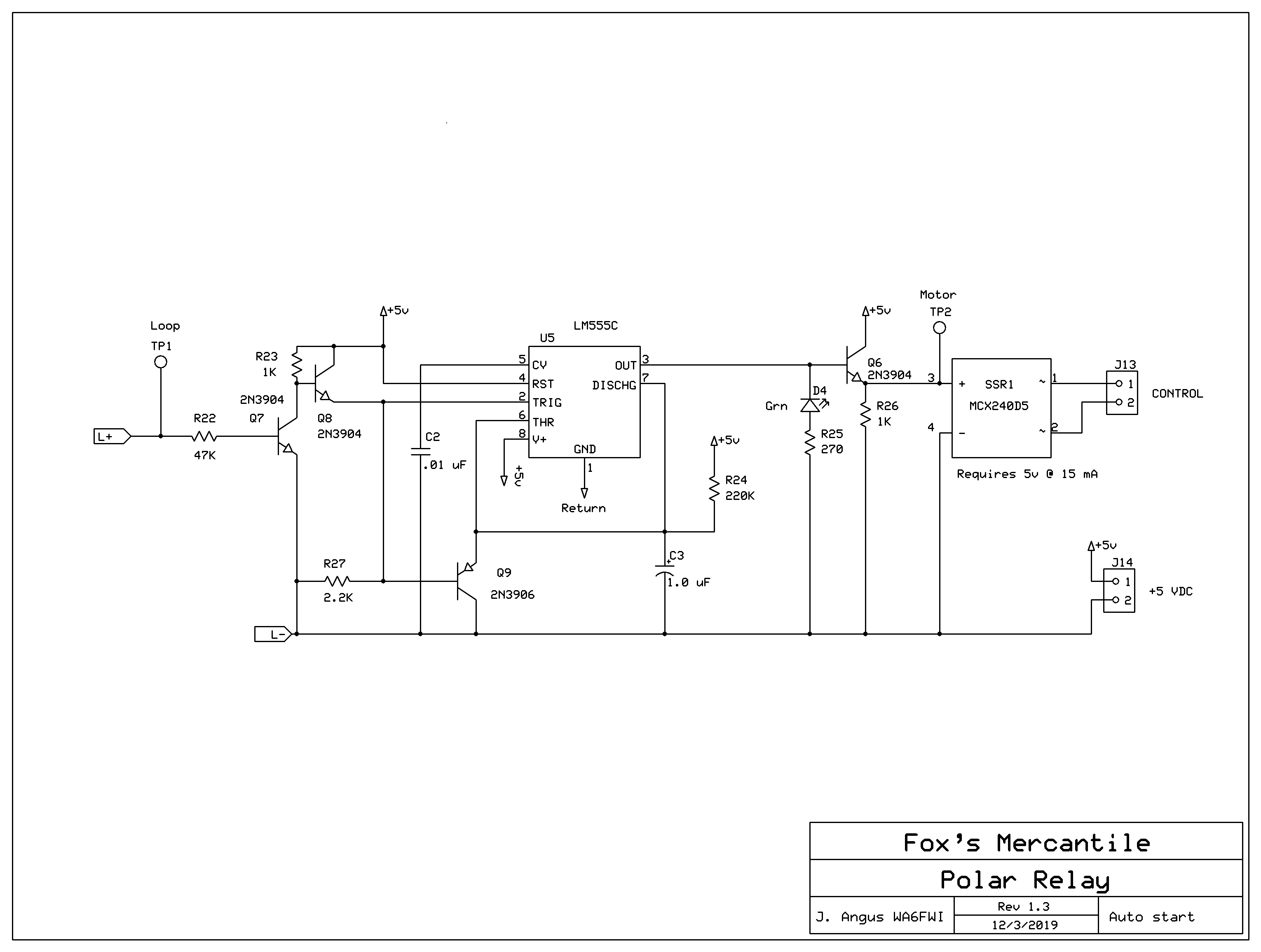

Name: Polar Relay Auto Start.png
Type: image/png
Size: 22779 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20200806/daa8c722/attachment-0001.png>
-------------- next part --------------
A non-text attachment was scrubbed...

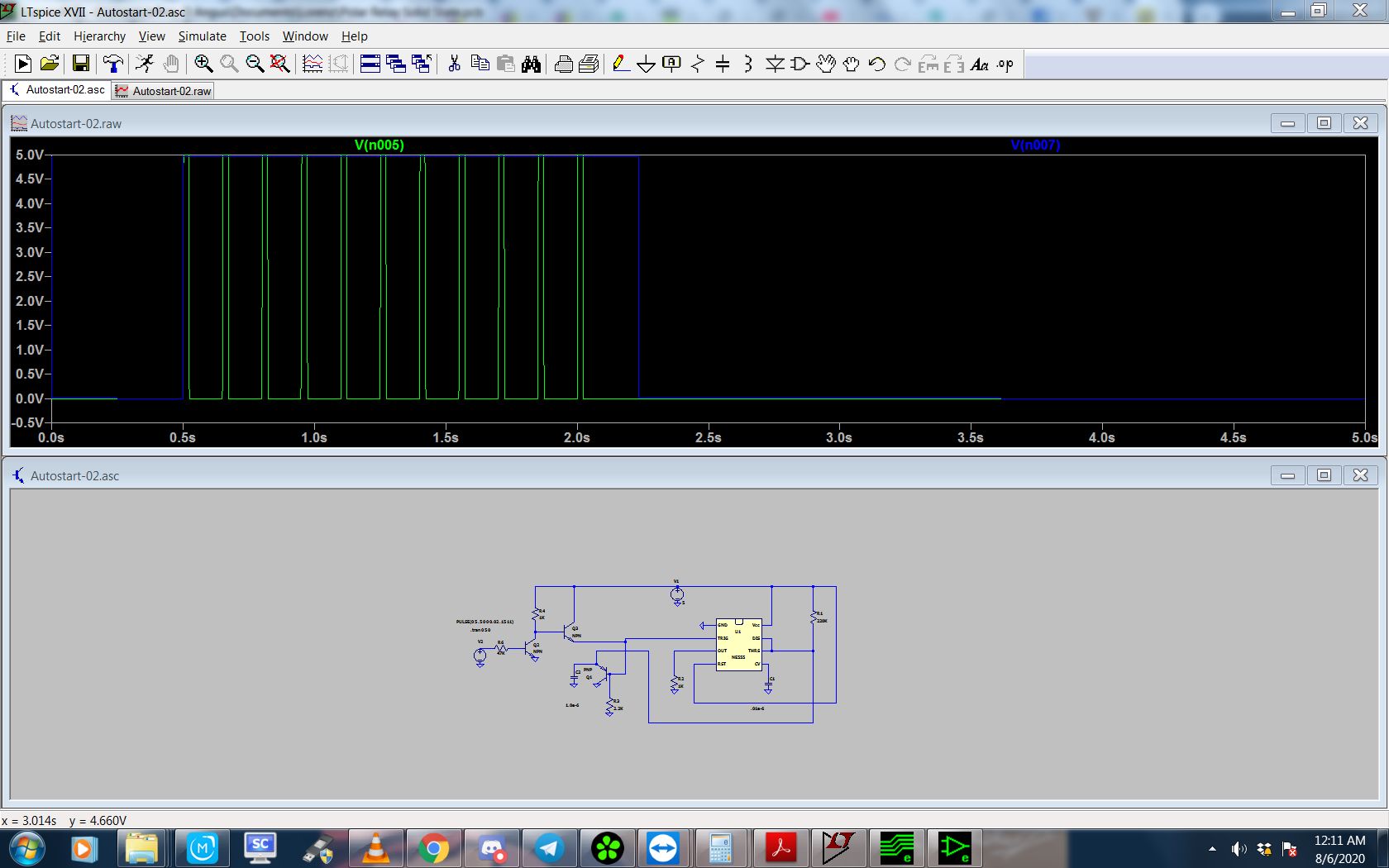

Name: Polar Relay Auto Start Simulation.jpg
