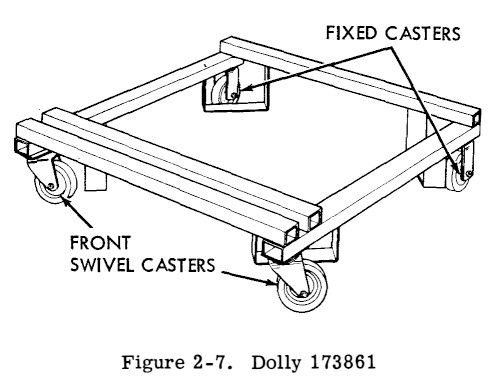

The Dolly is a frame of welded rectangular steel
tube construction. It mounts a rubber wheeled
caster at each of its four corners and has four
brackets, one welded diagonally across each
corner behind the casters, to support the LAC-
214 cabinet. The cabinet recesses down into
the frame where it rests on the brackets. The
rear casters on the frame are fixed while those
at the front swivel 360 degrees for maneuver ability.

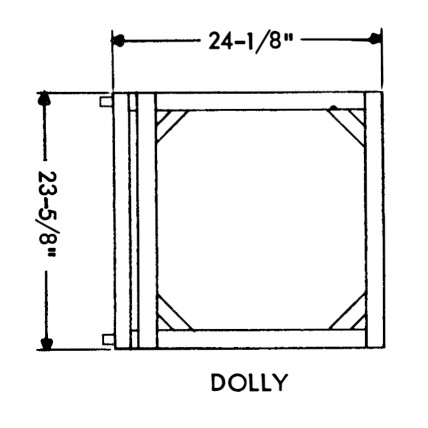

The frame is approximately 23 - 3/4
inches wide across the front, 24 inches deep
and 5 - 5/8 inches high. The cabinet, when
resting in the frame, is raised about 1 - 1/4
inches off the floor.

More drawings are attached
Nick England K4NYW
