Hi Kevin and GK,

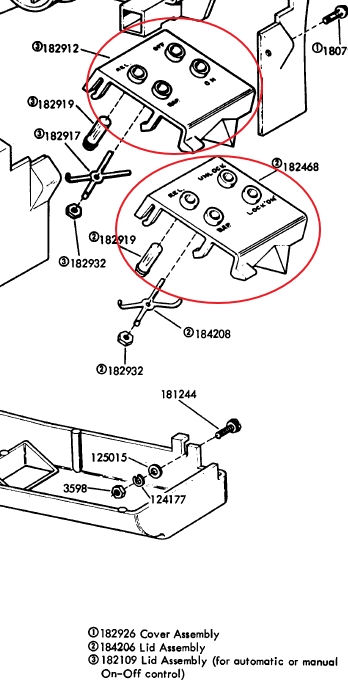

I should have said "lid", not "cover". See attached from parts book, two variants circled. I think the only difference between the variants might be the button labels (which would be irrelevant for the purpose of reproducing the basic lid).

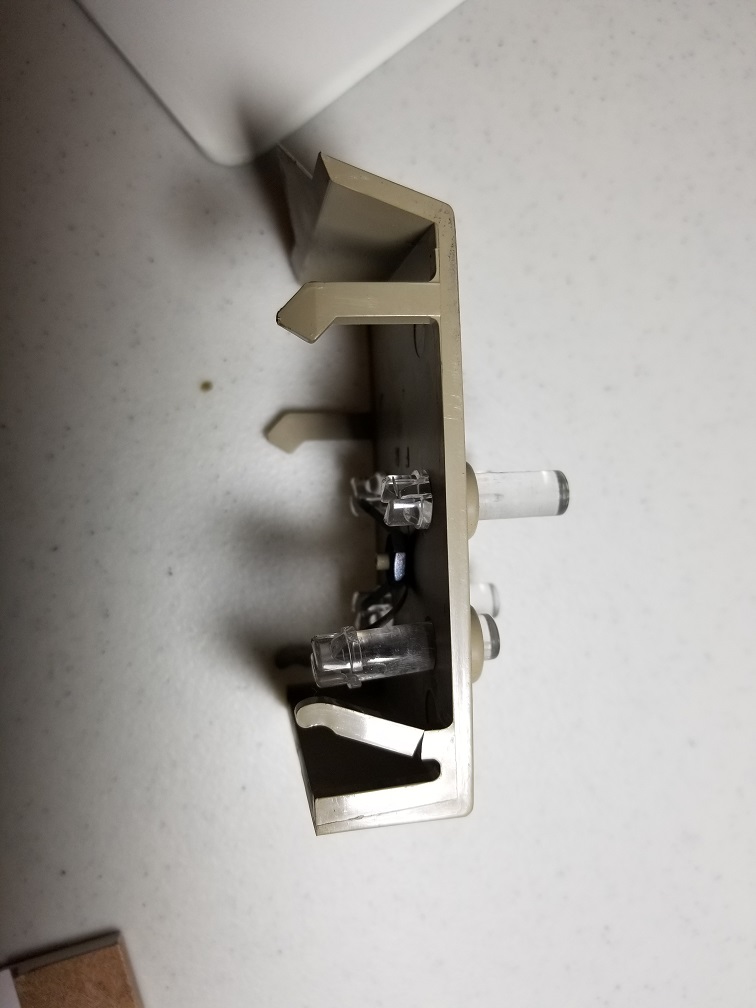

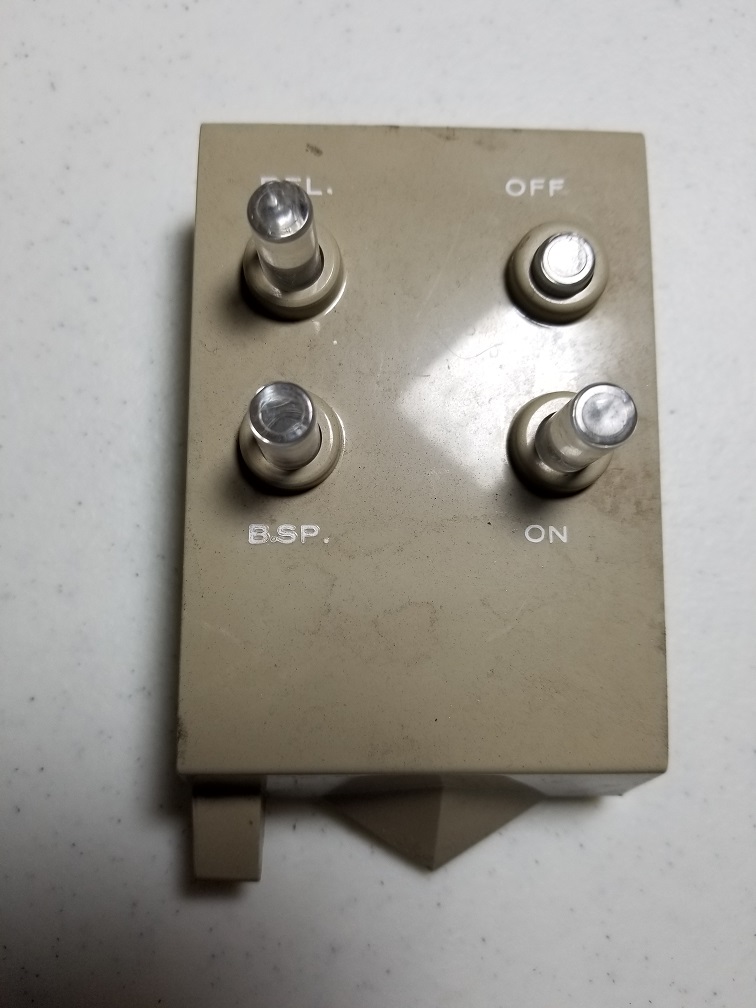

Also two pics attd for clarity.

Anyway, the lid is a much smaller and simpler part than the cover itself.

Thanks!

Ken


On Tue, Sep 10, 2019, at 06:48, Kevin DeWitt wrote:
> Hi Ken,
>
> The short answer is I would need to see and measure it. The Chad box is about 3X bigger than I imagined and there is a limit to how big my machine can handle. The Chad box is a 16 hour long print. From the 33 parts book it looks like there are 3 parts to the 'cover'. If the "front left" cover is the one you want it might be small enough. The 2 larger pieces that make up the back cover look too large.
>
> Kevin
>
 <https://www.avast.com/sig-email?utm_medium=email&utm_source=link&utm_campaign=sig-email&utm_content=webmail&utm_term=icon>
> Virus-free. www.avast.com <https://www.avast.com/sig-email?utm_medium=email&utm_source=link&utm_campaign=sig-email&utm_content=webmail&utm_term=link>
 <https://www.fastmail.com/mail/compose/M7ce0953757ebf01f1acfd4bd?u=030141ad#m_-4664053809699460039_DAB4FAD8-2DD7-40BB-A1B8-4E2AA1F9FDF2>
>
> On Sun, Sep 8, 2019 at 9:40 PM Ken Wiebe <me at networkguy.com> wrote:
>> __
>> Hi Kevin,
>>
>> Would it be possible to 3D print a punch cover for a 33?
>>
>> What would you need to do that?
>>
>> Thanks!
>>
>> Ken
>>
>> On Sun, Sep 8, 2019, at 15:08, Kevin DeWitt wrote:
>>> Oh, there's a chad box on Thingiverse already. No need to reinvent the wheel I suppose.
>>>
>>> https://www.thingiverse.com/thing:3353088
>>>
>>> Kevin/ww2tty
>>>
 <https://www.avast.com/sig-email?utm_medium=email&utm_source=link&utm_campaign=sig-email&utm_content=webmail&utm_term=icon>
>>> Virus-free. www.avast.com <https://www.avast.com/sig-email?utm_medium=email&utm_source=link&utm_campaign=sig-email&utm_content=webmail&utm_term=link>
 <https://www.fastmail.com/mail/compose/M7ce0953757ebf01f1acfd4bd?u=030141ad#m_-4664053809699460039_m_7392343551948010281_DAB4FAD8-2DD7-40BB-A1B8-4E2AA1F9FDF2>
>>>
>>> On Sun, Sep 8, 2019 at 11:11 AM Kevin DeWitt <kevin.dewitt at gmail.com> wrote:
>>>> I did this before my first cup of coffee, please excuse anything I omitted.
>>>>
>>>> It would need dimensioned since I based it loosely on photogrammetry. Can it be printed? Sure, it could be improved for FDM (filament machines) and that could be banged out in a few hours. A resin machine could likely print it 1.clear and 2. as is. I just don't have (a chad box) to copy. I would need someone with calipers to measure a few important things.
>>>>
>>>> Kevin/ww2tty
>>> ______________________________________________________________
>>> GreenKeys mailing list
>>> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
>>> Help: http://mailman.qth.net/mmfaq.htm
>>> Post: mailto:GreenKeys at mailman.qth.net
>>>
>>> 2002-to-present greenkeys archive: http://mailman.qth.net/pipermail/greenkeys/
>>> 1998-to-2001 greenkeys archive: http://mailman.qth.net/archive/greenkeys/greenkeys.html
>>> Randy Guttery's 2001-to-2009 GreenKeys Search Tool: http://comcents.com/tty/greenkeyssearch.html
>>>
>>> This list hosted by: http://www.qsl.net
>>> Please help support this email list: http://www.qsl.net/donate.html
>>> Message delivered to me at networkguy.com
>
> *Attachments:*
>  * lid.png
