[GreenKeys] Dangling Part

Tue Jul 23 20:01:29 EDT 2019

 You probably need to be looking from the bottom.  There's not much to see
from the front.  See Wayne's picture of the front.

This is from my 2 months of experience on my Model 33's repair:
I recommend that the H plate that connects the typing unit to the keyboard
be disconnected first. Put a screwdriver in the slot and push it towards
the spring.  It should clear the keyboard side.
There's a lever on the typing unit that extends under the keyboard,
activated by the "here is" key.  Be careful not to bump it into something.
Pull the plugs that go to the typing unit into the Electrical Service Unit
(ESU).
In the rear, there's a ground wire that plugs into the base.  You'll need
to unplug it.
There's a 2-wire cable going to the answerback unit.  That along with its
clip will need to be disconnected.
Remove the bolt from the bottom of the the base that holds the typing
unit.  There may be more if the shipping bolts are still there.
Pull the typing unit up.

I've only done this once so I defer to any other guidance you may receive.
Good luck!

On Tue, Jul 23, 2019 at 2:31 PM Ken Wiebe <me at networkguy.com> wrote:

> Mike and Wayne,
>
> Thanks for your help.  I think tonight I will make progress, now having
> some pics to compare to.  I'm thinking I will have to remove the typing
> unit to inspect the front side, right?
>
> I have printed out some instructions for doing that but are there any
> special caveats?
>
> Ken
>
> On Tue, Jul 23, 2019, at 11:48, Mike Arrington wrote:
>

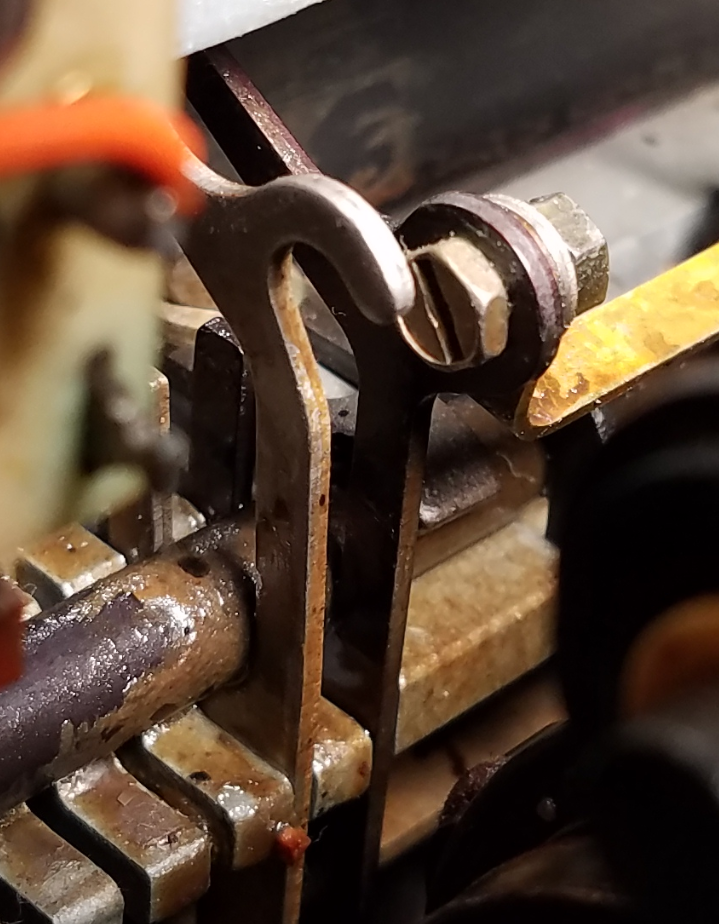

> I took another look at your original picture.  It looks like the function
> pawl is pushed way down into the function block.  It also looks like the
> function block in that area may be a bit worn, but it's hard to tell from
> the photo.  I can see the u-channel in your photo.  It's way down and
> forward (from the photo's point of view).  That u-channel should be setting
> underneath the rod like the pawl to its left.  Can you push it back under
> the rod.  There should be a spring somewhere that pushes/pulls it up.
>
> Here's what mine looks like.
> [image: Bell Pawl.png]
>
> On Tue, Jul 23, 2019 at 1:17 PM Ken Wiebe <me at networkguy.com> wrote:
>
>
> The clapper is firm to the pawl - it is the pawl itself that is just lying
> in there loose.
>
> Ken
>
> On Tue, Jul 23, 2019, at 11:02, Mike Arrington wrote:
>
> You probably just need to tighten the nut that holds the spring lever to
> the function pawl (what I was calling the function lever). The function
> pawl should just move down and then back up.  You should be able to push it
> down with a finger and it should come back up.  Is the pawl stable and the
> spring level and clapper (181464) is just loose?
>
> The pawl is engaged by the function lever that goes under the code bars.
> When selected, the code bar pulls the pawl down.  When the stripper bail is
> operated, the pawl is released and the clapper should hit the gong briefly.
> The top of the pawl where the u-shaped channel is is held in place by the
> fixed rod (180772) that runs the across function box.
>
> On Tue, Jul 23, 2019 at 12:32 PM Ken Wiebe <me at networkguy.com> wrote:
>
>
> Thanks much, that helped a lot.  It's clear from your video that my signal
> bell pawl, that the clapper attaches to, is disconnected.  At least at the
> bottom.  I can reach in there and it just flops around.
>
> It's not clear from the parts diagram what the bottom of that pawl is
> supposed to engage with.
>
> Can you tell?
>
> On Tue, Jul 23, 2019, at 10:20, Mike Arrington wrote:
>

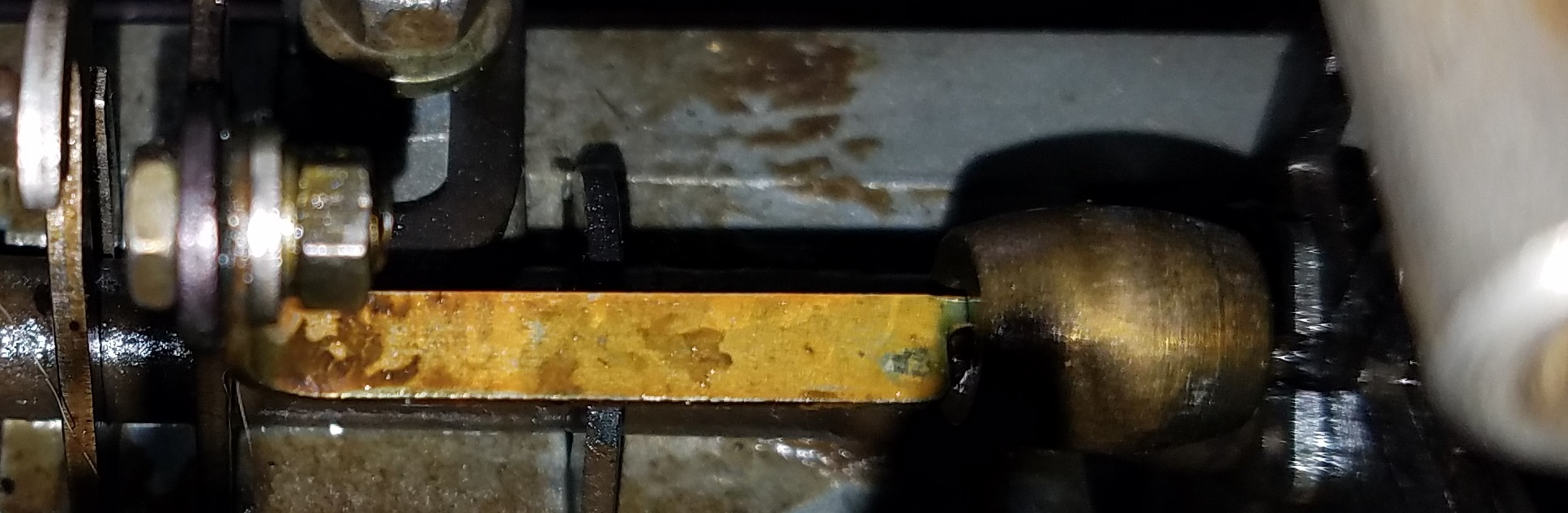

> [image: Clapper Lever.jpg]
>
> Very short video of it in operation:  <https://youtu.be/a3so42YxWP8>
>
> On Tue, Jul 23, 2019 at 11:42 AM Ken Wiebe <me at networkguy.com> wrote:
>
>
> Thanks.  Anyone have a pic of it hooked up correctly?
>
> Obviously it's in a tight spot but a picture is worth 1000 words
> regardless.
>
> Ken
>
> On Tue, Jul 23, 2019, at 06:00, Mike Arrington wrote:
>
>
> That springy lever connects to the bell function lever on the left.  On
> the right side, there is a clapper that is loosely connected to the lever.
> When the function lever is selected (control-G) and released, the clapper
> rings the bell above it.
>
> On Mon, Jul 22, 2019 at 10:31 PM Ken Wiebe <me at networkguy.com> wrote:
>
>
> Found this part kinda dangling, doesn't look right (33 ASR) - see picture.
>
> Anyone know what it is/how it's supposed to be?
