[GreenKeys] 28KSR - AN/UCG-47 wiring

[John Lawson]

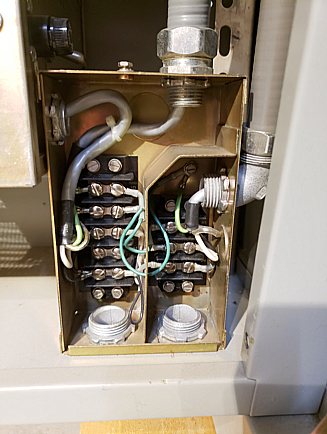

I took the cover off the J-boxes, the left is empty, the right has the connection strips. The 115V part is obvious, at least.

HIHI


Cheers

John KB6SCO

On 8/3/2019 3:56 PM, Thomas Tillson wrote:
Hi John:

According to NAVSHIPS 91713, the outside loop gets connected on the "C" board (TB751) with the POS + on terminal 5 and the NEG - on terminal 10.

AC power should be 29 and 30. Hot is 30.

Tom WB2TTY

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20190803/22bb5a01/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: UGC-47 Junction Box.jpg
Type: image/jpeg
Size: 208551 bytes
Desc: UGC-47 Junction Box.jpg
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20190803/22bb5a01/attachment-0001.jpg>
