I can only see six pins.  If you are looking at it with the ‘pointy’ end up,  5 pins are in all down the right side, and the one pin on the bottom, just to the left of that column, is also in.



There is no supply in front of the UCC-6… the wire with the connector for the TR PS is long and hangs down from the back of the machine, which seems to indicate to me that it was intended to reach the PS in your first photo, I assume mounted in the (now missing) stand somewhere.



From: WAYNE [mailto:teletypeparts at comcast.net]
Sent: Thursday, September 27, 2018 4:08 PM
To: Brad via GreenKeys <greenkeys at mailman.qth.net>; Brad <unclefalter at yahoo.ca>
Subject: Re: [GreenKeys] Mod 33 Paper Tape Reader Power Supply



Brad,



The TR PS gets its power from the 33.  Just needs to be plugged in to the Molex.



Does your Molex female plug have all the pins in it or just 7?  Its the one hanging down in back.

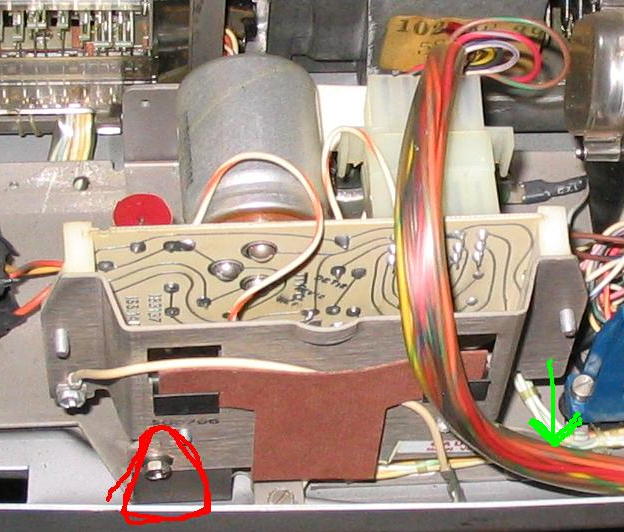

Did you check that the TR supply might be in the UCC-6 just in front of the Line/Off/Local switch?  See second pic for one in the UCC-6.



I might be able to supply you one after we know what you have.



Auto TR has all the pins and Manual TR has 7.

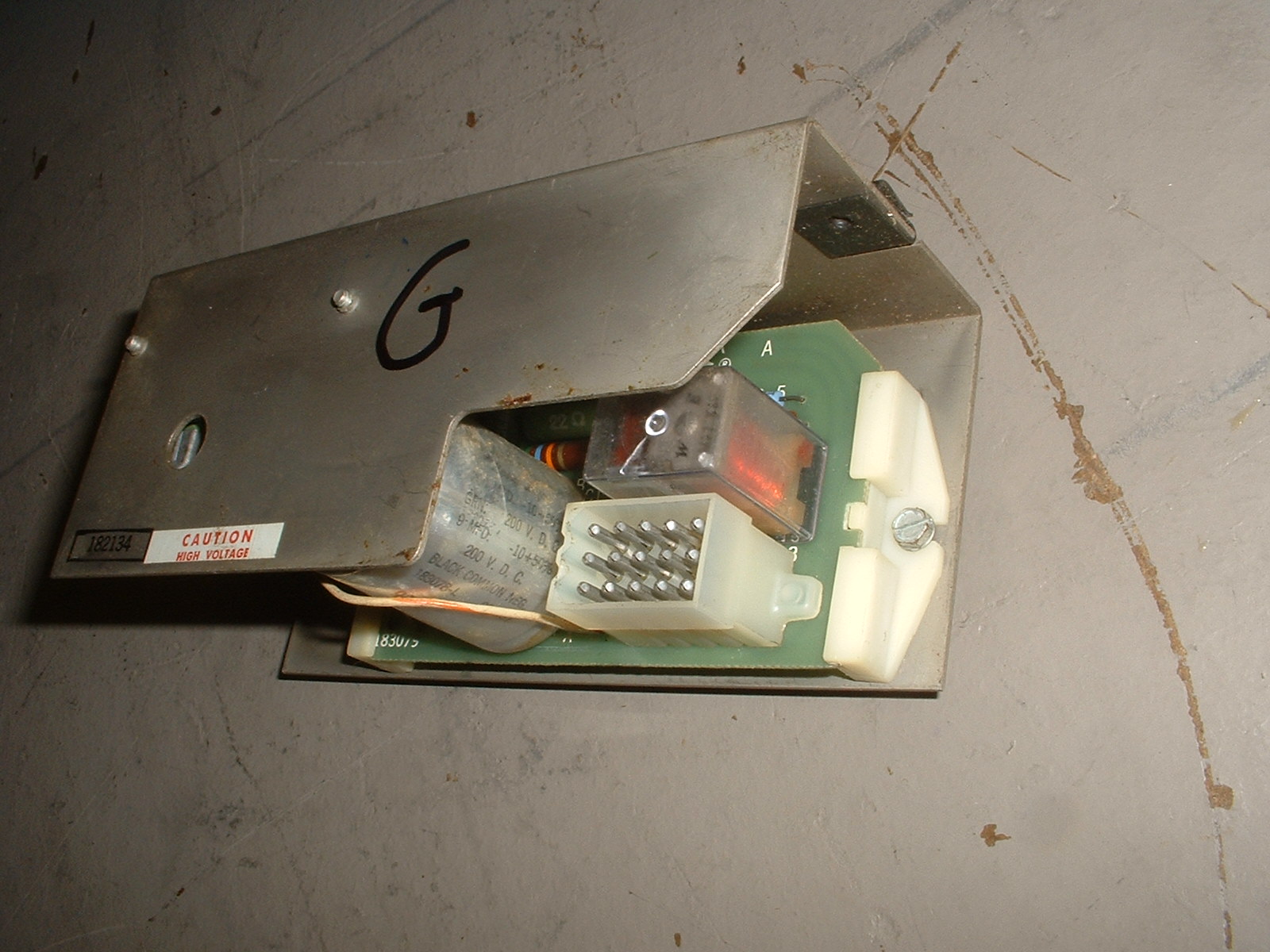

First pic shows the PS that goes in the pedestal.  Its an Auto.



73,



Wayne

KB1FDW
