[GreenKeys] Adjustment challenge on 28KSR

[Nick]

I was asked so many times what the fix was. So, here it is  !!!

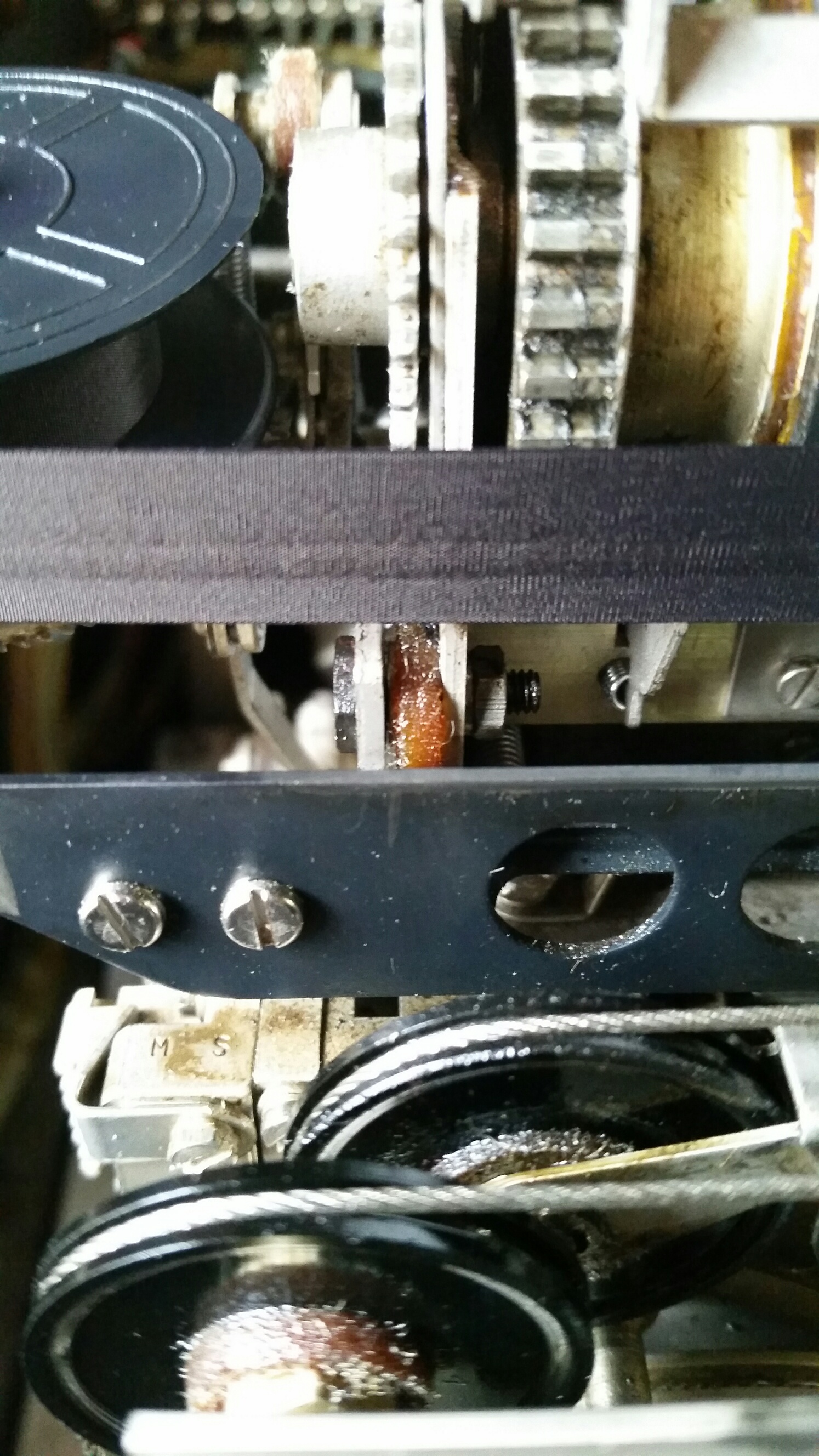

See attached pic, there is a 1/2 inch long bolt (horizontal) in the center of the pic, below the ribbon and above and slightly behind the black bar where the printing block is riding on (the bolt head is on the left). Surprisingly,  the bolt was hanging there by itself but the spring washer and the nut were missing. The assembly was loose and therefore the distance between printing block and paper was a hair or two greater than on the right side. There was no need for an adjustment - just a replacement of a missing nut.

Now you can say:
"Nick had a nut loose"   haha  :-)

Nick  -  N0NCQ
I-Telex  212503



Sent from my T-Mobile 4G LTE Device


-------- Original message --------
From: Nick <creativegardening at hotmail.com>
Date: 5/5/18 2:21 PM (GMT-05:00)
To: GreenKeys at mailman.qth.net
Subject: RE: [GreenKeys] Adjustment challenge on 28KSR

Hey guys,

Thanks to all the good advice.
The print is perfect now and my 28 seems to be very happy, so do I.
 :-)    :-)    :-)

Nick



Sent from my T-Mobile 4G LTE Device


-------- Original message --------
From: Nick <creativegardening at hotmail.com>
Date: 5/5/18 11:22 AM (GMT-05:00)
To: GreenKeys at mailman.qth.net
Subject: [GreenKeys] Adjustment challenge on 28KSR

Finally, I have my 28KSR back together - only one small challenge left to tackle.

All printed characters on the right side of the paper are much more pronounced - the print on the left side is noticeable lighter (please see attached picture).

Wondering if this can be balanced out with a tiny adjustment. Anybody with the right fix?

Nick  -  N0NCQ
i-Telex  212503



Sent from my T-Mobile 4G LTE Device
