Hi All,

The first of John Nagle's USB - 60mA Loop Driver is almost complete. I
am just waiting for switches and the CP2102 breakout boards to arrive.

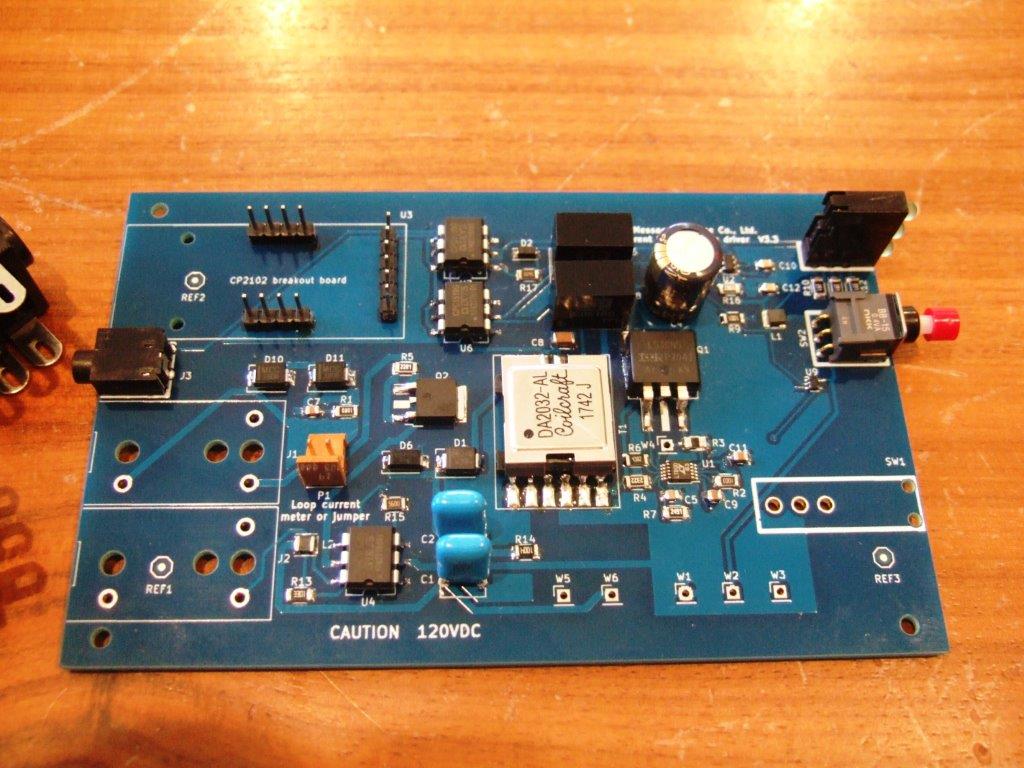

Here are some photo of the build so far:



Once I have this completed and tested I will finish off the design for
the case, and start screen printing the panels.

Regards,
Bruce
