Ken,

The TT-4 was the first TTY that I really got to know. I spent a year in
Viet Nam servicing them.

Thanks for posting the Nov 1951 supplement. I had not seen it before.
It answers some questions of the early TT-4 history, but raises others!

1. In Edmund E. Kleinschmidt's book, "Printing Telegraphy... a New Era
Begins" (http://www.gutenberg.org/ebooks/53481), he says that the Signal
Corps approved the KLI design for a new tactical printer, to be
designated "TT-4/TG", and gave KLI an order for 2,000 units in 1949. On
17 Apr 1950, the first KLI pre-production samples were sent to the
Signal Corps for their approval. Soon after, production began on the

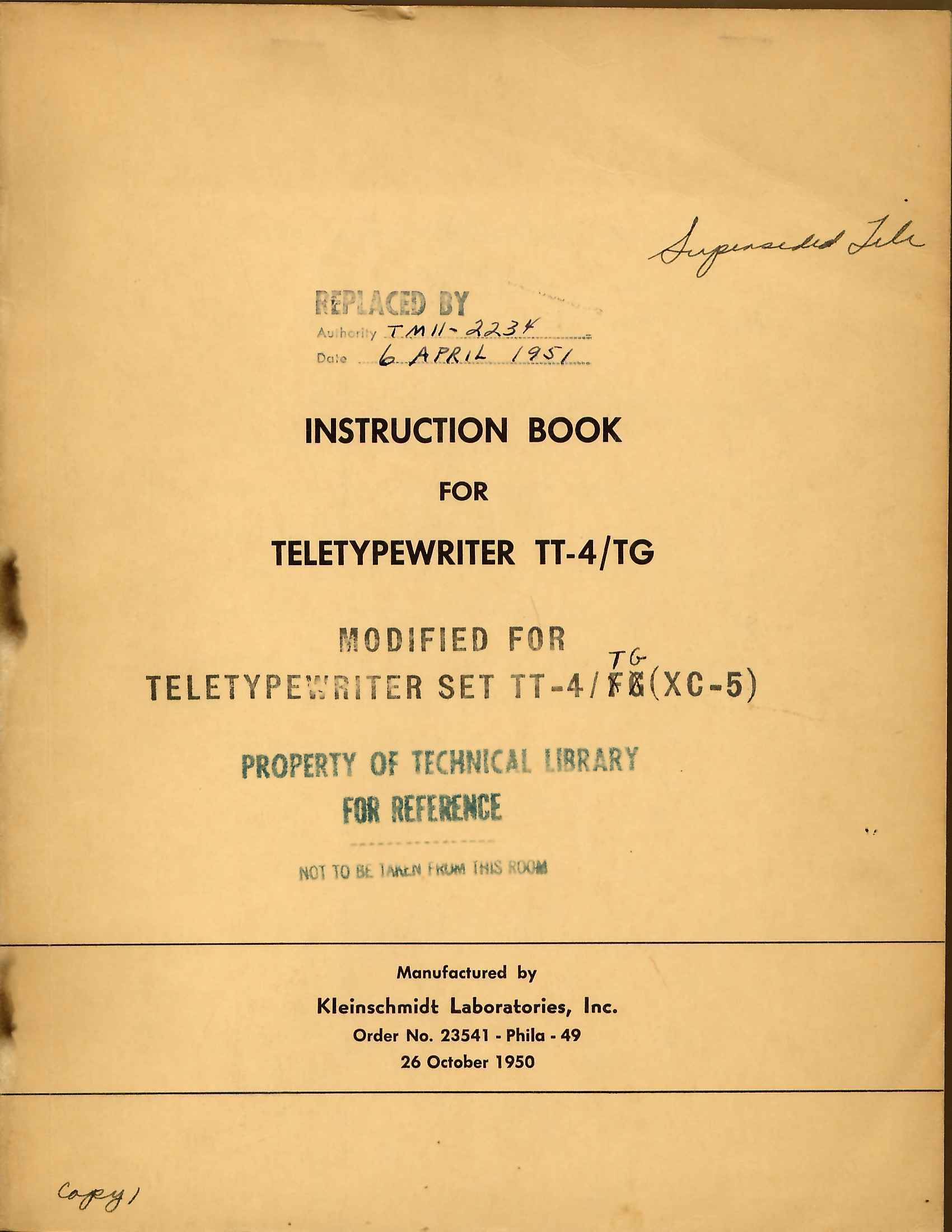

contract awarded in June 1949. A copy of the front of KLI's preliminary
TT-4 manual with contract number (235410-0Phila - 49) enclosed.

2. The first official Army TT-4 manual was TM 11-2234, "TT-4/TG", 6 Apr
1951.

3. Ken's "Supplement to TM 11-2234, Teletypewriter TT-4/TG" is dated 28
November 1951. It adds the TT-4A/TG for serial numbers 1392 upwards.  It
implies that Order Number 1671-Phila-51 covers these TT-4As from SN
1394.  My first thought was that the SNs from the TT-4/TG models
continued with the TT-4A/TGs (ie, everything 1392 and below was a TT-4/TG).

Having worked in new-product hardware design, I know that  a lot of
problems can surface after you have manufactured hundreds of units that
you didn't see in the first prototypes. So it is not inconceivable to me
that, somewhere in the midst of the first 2,000 TT-4/TG units, they
switched over to the TT-4A/TG model.

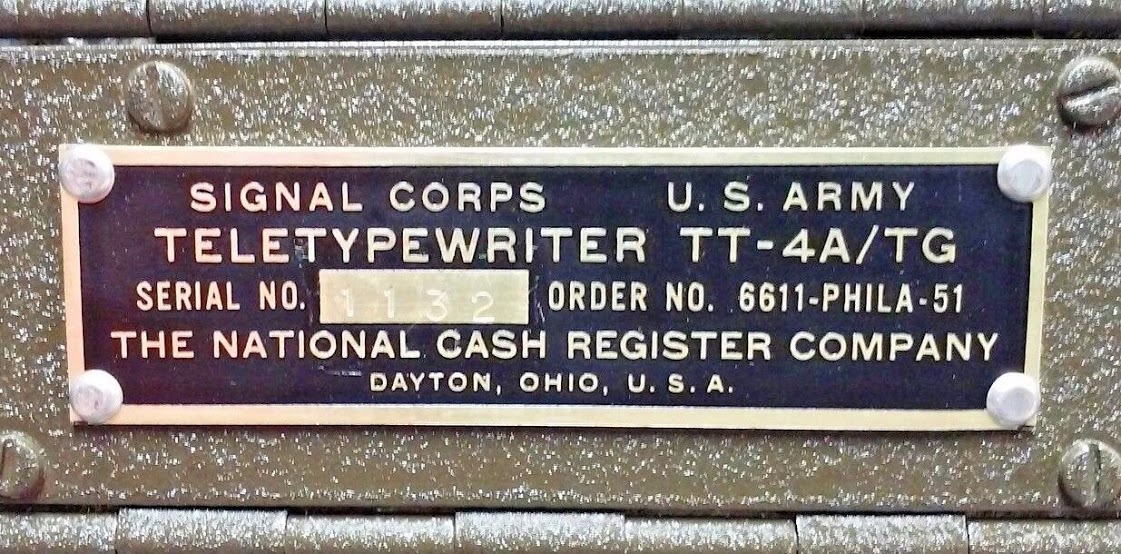

4. But there are TT-4A/TG models, manufactured by NCR, out there with
SNs below 1392 (eg #316, #1132) . The NCR units were built to order
number 6611-PHILA-51. So the NCR units were not covered by this Nov 1951
supplement?  (I have seen mentions in other TMs  of differences between
different Order Numbers within the same model number.)

5. The statement on the Nov 1951 supplement, that it is not an official
DA publication, implies that it came from the manufacturer (KLI?). Was
there another supplement for the earlier TT-4As made by NCR?  It also
seems strange that they waited until 1959 for the official next edition
(TM 11-5815-206-12, -35). The fact that the later TMs do not mention the
"TT-4/TG", implies that there were none in the military system by then.

6. Pete - what is the label on your TT-4A?

7. In Viet Nam in 1967, we had TT-4Bs & TT-4Cs that were running 24/7
and getting pretty beat up. We were able to negotiate for some "new"
replacement units. I was looking forward to the new units and was very
disappointed  when they appeared as "rebuilt" TT-4As!  But I'm pretty
sure that they all had KLI labels on them, as I don't think I knew about
the NCR units until relatively recently.  Does anyone out there have a
KLI branded TT-4A??

Thanks for any further comments or info on the TT-4 family

Duncan Brown, K2OEQ
USASA  31J30

Antique Wireless Association Museum Asst. Curator, Commercial Equipment
(also Chief TTY operator & repairman)
