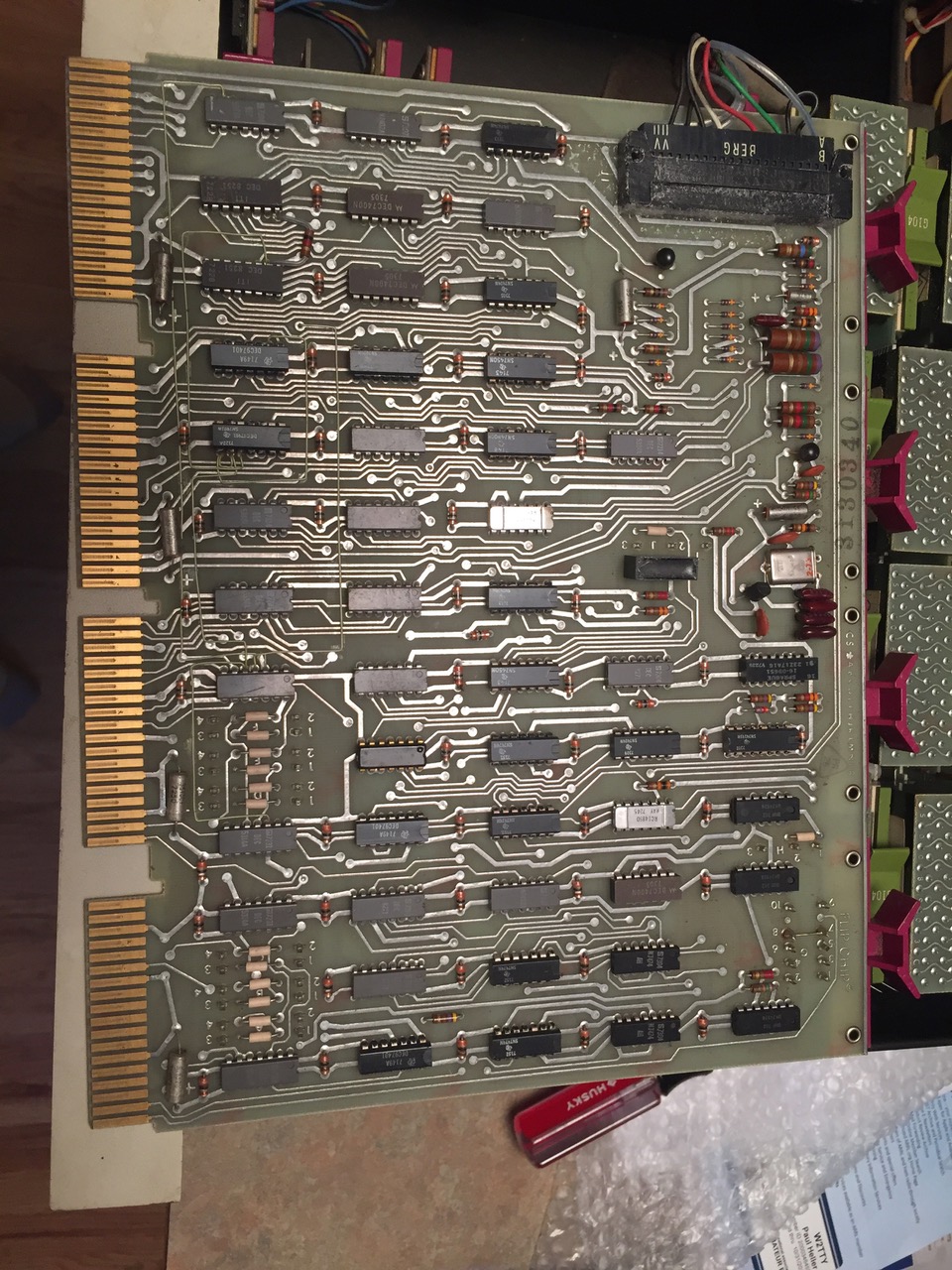

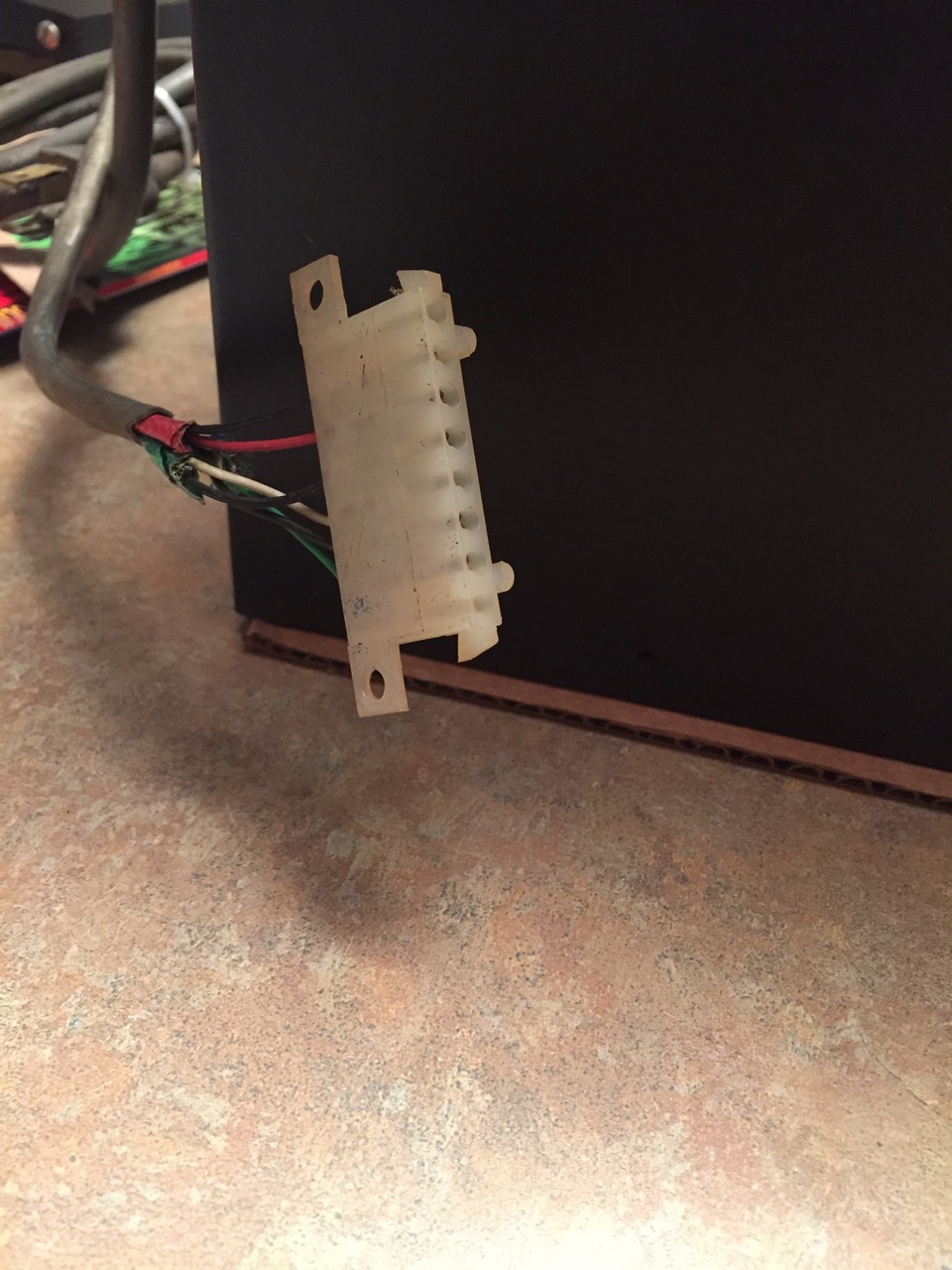

Thanks to Marc, Dave, Pete and Wayne for the replies thus far.  It is a PDP-8M.  The interface board is M8650. Photo is attached for both the board and the connector. The connecto has 8 femal pins, but only 6 are wired.

6?? I’ll have to figure the pinouts for that!

I’ll be searching and reading up on this board.  And looking for a male matching connector.

It’s great to have you folks in the community to help me through this identification step

Paul
W2TTY




> On Sep 15, 2017, at 3:43 PM, Paul Heller <paul0926 at comcast.net> wrote:
>
> After looking a long time I finally got hold of a PDP8. I got it from another ham. The guy I got it from said he used to have a teletype hooked up to it.
>
> Is there a way I can determine if it is a current loop or an RS232 interface?  I assume if I guess wrong I could damage the teletype or the terminal board in the computer. Is this a valid worry?
>
>
> Thanks for any help. I'm a newbie to DEC computers. Maybe I can finally put that tape relay in my teletype to good use.
>
> Paul
