Julien,


I will attach some pics for you.  Mike at deramp email took my idea a step further.  You can use either his or mine.  The homemade part goes on the PS (print suppress) codebar on the right side.  The first 3 pics are my homemade one (a split spring-style clothespin is the rough part to modify) and the last 4 are Mikes machined parts.


Best regards.


Wayne

> On May 29, 2017 at 12:52 PM Julien Scrofani <julien.scrofani at gmail.com> wrote:
>
>     Hi  guys,
>
>         > >
> >         I know there were severals topics on greenkeys regarding the possibility of punching long tape without printing, but I cannot find them anymore.
> >         Could someone indicate me where to look for, please ?
> >
> >         Bests regards,
> >         Julien
> >
> >     >     ______________________________________________________________
>     GreenKeys mailing list
>     Home: http://mailman.qth.net/mailman/listinfo/greenkeys
>     Help: http://mailman.qth.net/mmfaq.htm
>     Post: mailto:GreenKeys at mailman.qth.net
>
>     2002-to-present greenkeys archive: http://mailman.qth.net/pipermail/greenkeys/
>     1998-to-2001 greenkeys archive: http://mailman.qth.net/archive/greenkeys/greenkeys.html
>     Randy Guttery's 2001-to-2009 GreenKeys Search Tool: http://comcents.com/tty/greenkeyssearch.html
>
>     This list hosted by: http://www.qsl.net
>     Please help support this email list: http://www.qsl.net/donate.html
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20170530/18c54da2/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

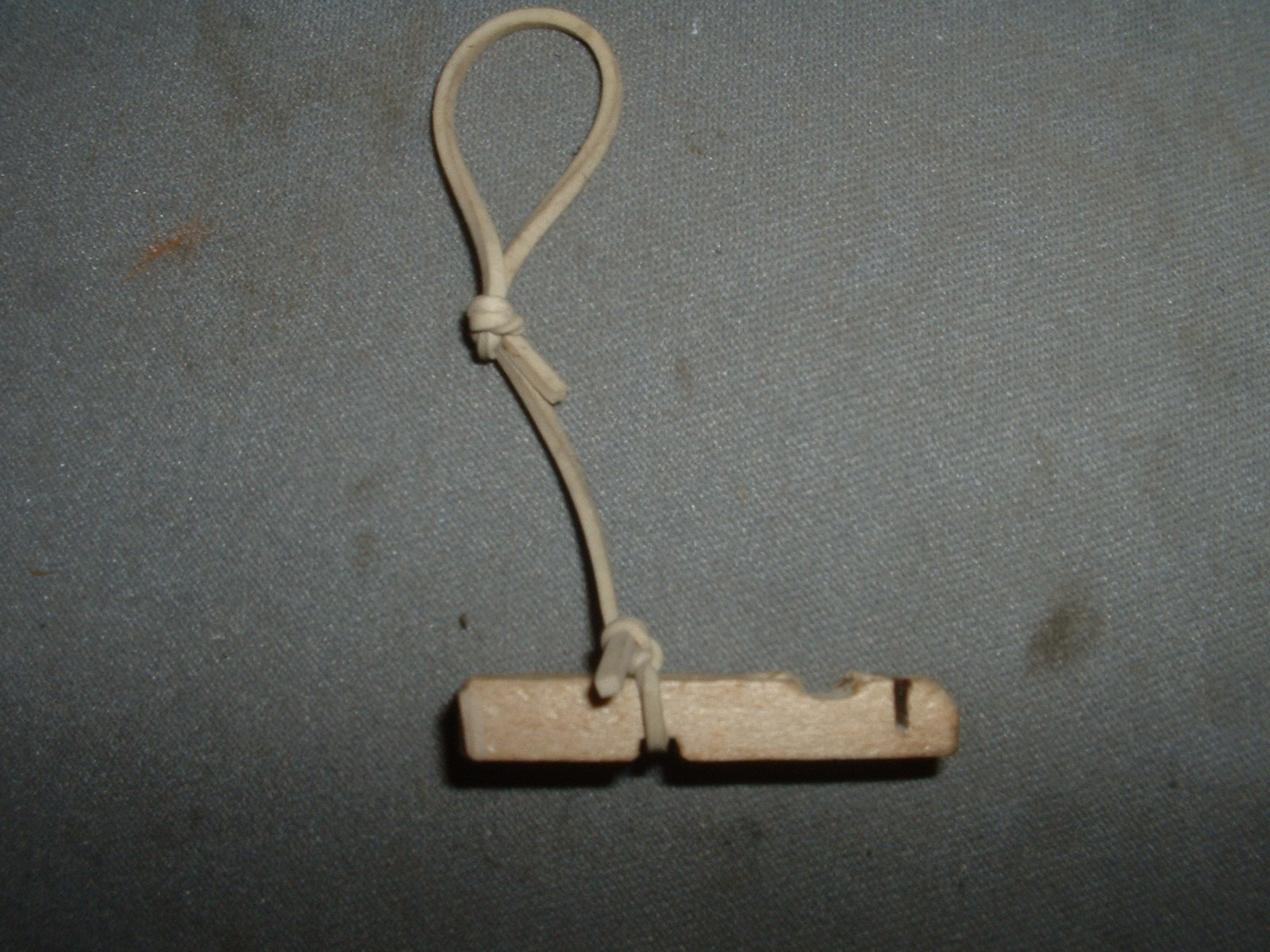

Name: A the part.JPG
Type: image/jpeg
Size: 385463 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20170530/18c54da2/attachment-0003.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...

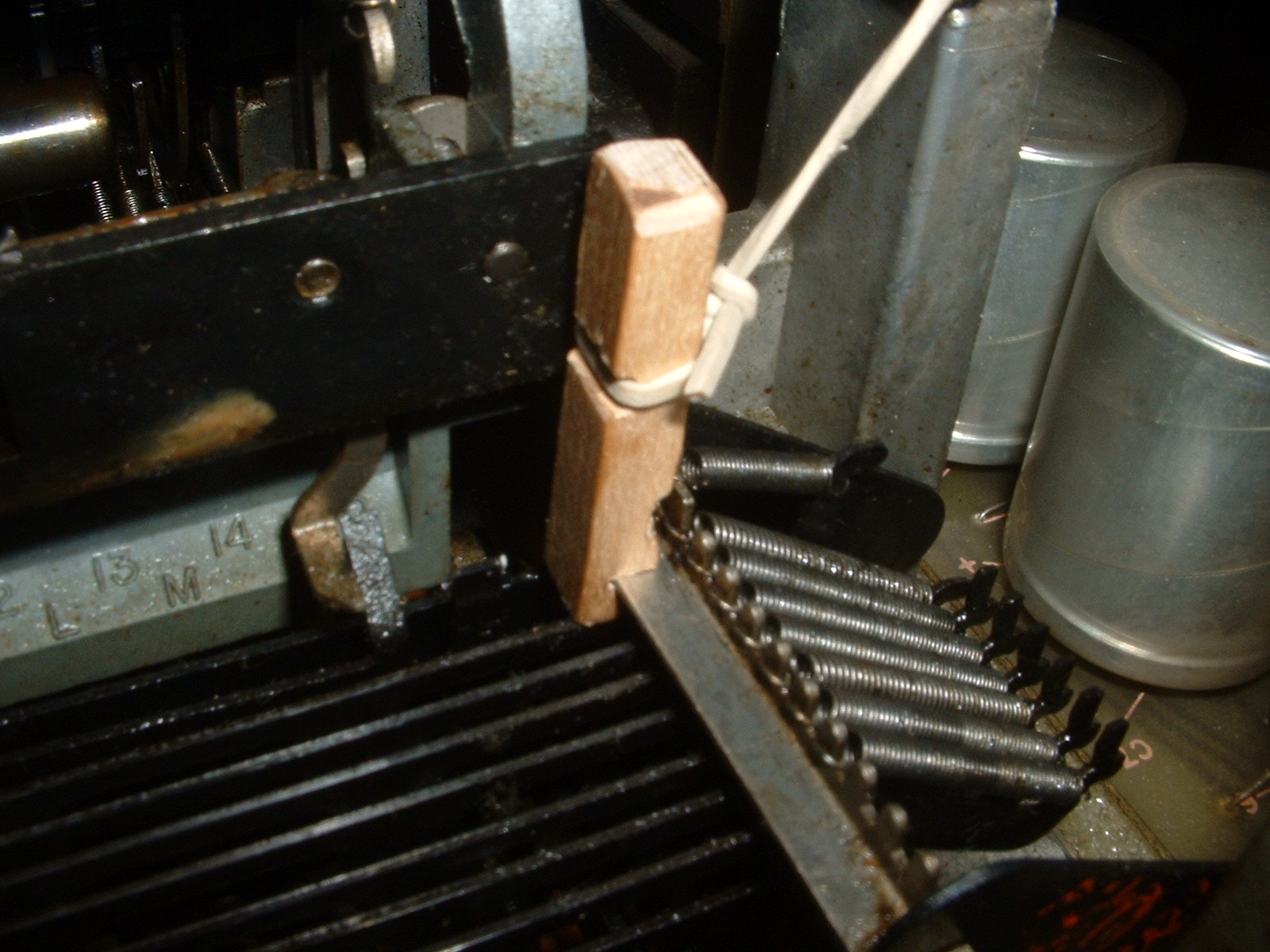

Name: B in place.JPG
Type: image/jpeg
Size: 376438 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20170530/18c54da2/attachment-0004.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...

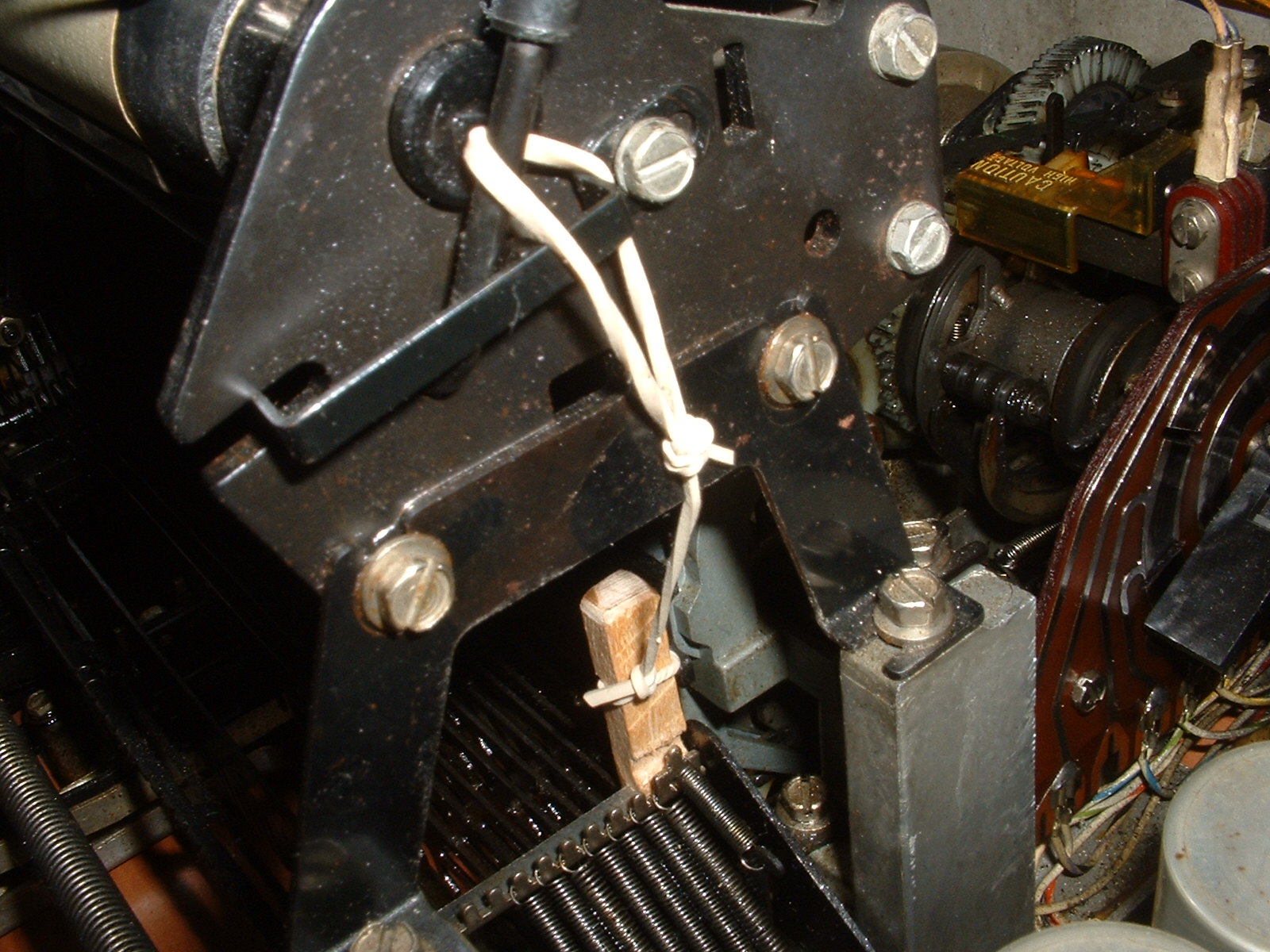

Name: Rubber band to help hold in place.JPG
Type: image/jpeg
Size: 407227 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20170530/18c54da2/attachment-0005.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Final version in place.bmp
Type: image/bmp
Size: 766134 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20170530/18c54da2/attachment-0004.bmp>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Final version.bmp
Type: image/bmp
Size: 797814 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20170530/18c54da2/attachment-0005.bmp>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Improved metal part.bmp
Type: image/bmp
Size: 919094 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20170530/18c54da2/attachment-0006.bmp>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Metal part in place.bmp
Type: image/bmp
Size: 919094 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20170530/18c54da2/attachment-0007.bmp>
