[GreenKeys] Comma on [J] (was Teletype Pallet Set Available)

[Richard Knoppow]

    What is shown in the picture is AFAIK a Signal Corps inspection
stamp. I have mostly seen these in combination with the MFP stamp for
moisture proofing but I don't know if they always go together.
     The book I have was published in 1956. The "code card" shows ten
versions, all of course differing in upper case but being the same in
lower case. It does NOT show the weather symbols. I copied them from
another source so that makes eleven sets. I strongly suspect there are
others. It does not show the upper case combinations for the ARQ Moore
code. I have not yet searched Nick's Navy web site but I would expect
there to be more there.

On 1/9/2017 4:14 PM, eric wrote:
> On 2017-01-09 15:00, Richard Knoppow wrote:
>> FWIW the list in "Reference Data for Radio Engineers" 4th edition
>> shows a comma on upper case N for Army, old Navy, Teletype A, British
>> Standard, Western Union 101 and 102, and CCIT 2. In these codes upper
>> case J is Bell for British Standard, WU 101,102 and CCIT 2
>>
>>    Coma on upper case J is shown for: New U.S. Navy Standard, TWX
>> (Teletype C) and Western Union 101-C and 102-C.
>>    There is no apostrophe on
>> New Navy Standard
>> TWX C
>> WU 101C and 102C
>> CCIT 2
>> American Cable and Radio
>>    It would be interesting to know what code combination works the
>> bell on this machine. If its upper case J the comma may be there
>> because it would never be used anyway.
>>
>
>
> Duncan and Richard --
>
> Thanks for the interest! There are more type arrangements than I would
> have suspected. This particular machine has bell on S, comma on J, and
> also comma on N. It has an unused apostrophe on S, which never prints
> since figs-S is bell and inhibits print. But it is there on the type
> pallet.
> This machine also has "STOP" (ie, disable keyboard) on figs-H, and the H
> pallet has an unused pounds-sterling symbol on its H pallet.
>
> I don't know anything about this machine's provenance except that it once
> belonged to a Northern California ham (K6VIT). There are no "AN/UGC"
> numbers
> anywhere.  The typing unit's nameplate says "15-AA TYPING UNIT". There's a
> random mysterious nameplate on the base that says only "PEX25LE".
>

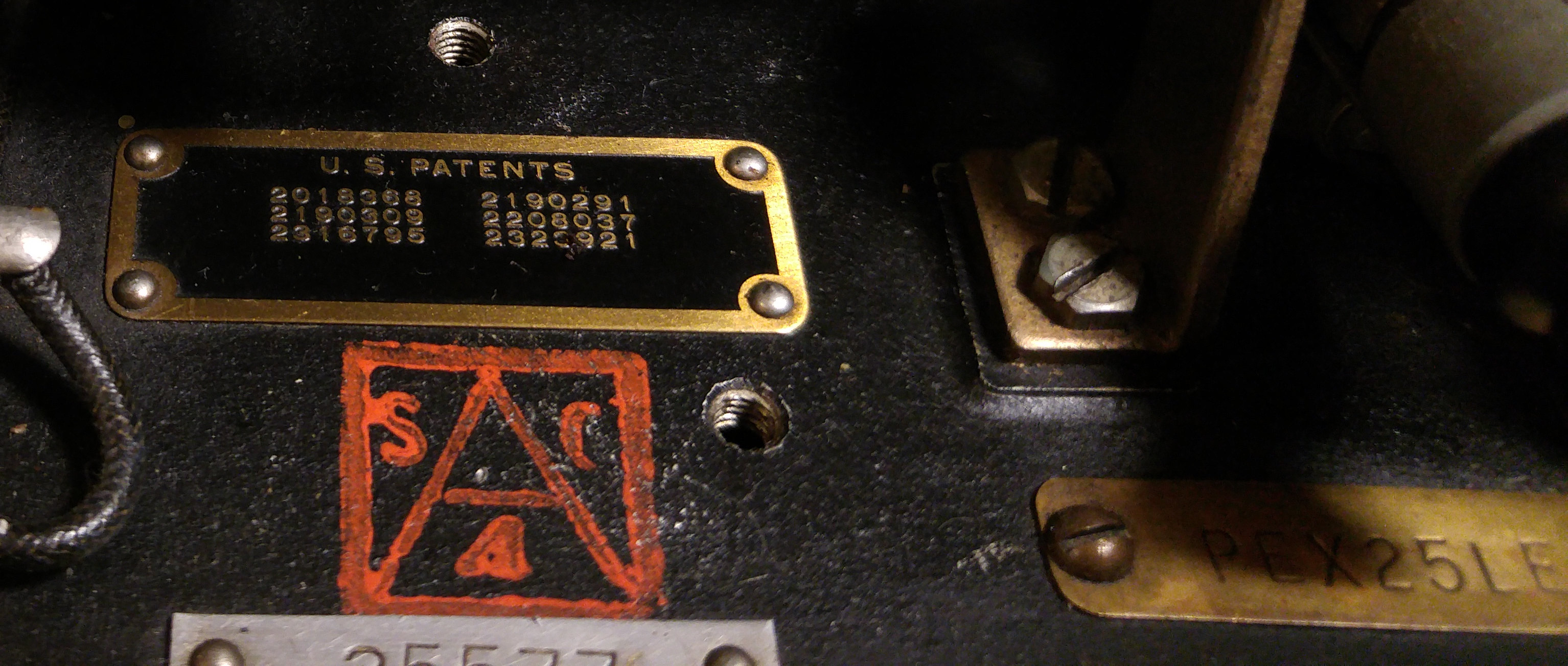

> It's been MFP'd with a paint logo on it, http://wtrc.net/~eric/label.jpg
>
> eric
>

--
Richard Knoppow
1oldlens1 at ix.netcom.com
WB6KBL
