[GreenKeys] getting an asr33 teletype

[Wayne Durkee]

Devin,

Its 3 small bolts.  10/32 by 1 inch with no board under the 33.  Add inches if you mount it on a board.  3 small flat washers as well.  Here are pics of where they go.  Put the front middle one in first as you can see it go in.

Also, the 33 should be removed from the pedestal.  Remove rear panel and there are 4 screws that go into the pan of the 33 to hold it to the pedestal.

See pics.  The first pic is where the screws go in from the bottom to hold the printer in place for shipping.  The second pic shows where to remove the 4 screws that hold the whole 33 to the pedestal.  The third pic shows the front printer shipping screw installed.  After removing the 33 from pedestal you can place all 3 shipping screws in place.  Start with the front one as you can see that one go in.

Ship FedEx Ground.  Never UPS.  Lots of labels.  This side up etc.

You will need a heavy duty cardboard box with lots of packing.  No peanuts unless you put them in a trash bag.

Wayne
KB1FDW




> On February 9, 2017 at 11:13 PM Devin <lyokoboy0 at gmail.com> wrote:
>
>
> Ive been listening in on the list, first mail to the list though. I am
> getting an asr 33 teletype shipped to my shop. I was told there are
> shipping brackets that should be put in place to prevent damage in
> transit, but have found little information on them. Can someone here
> give directions on how to put the shipping brackets into place, or
> better yet, pictures?
>
>
> The person to be putting the brackets in place will be he owner, i am
> not sure how tech minded he is, so hopefully they are easy to install.
> The clearer the directions i can give him the better.
>
> Thanks.
>
> --Devin
>
> ______________________________________________________________
> GreenKeys mailing list
> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:GreenKeys at mailman.qth.net
>
> 2002-to-present greenkeys archive: http://mailman.qth.net/pipermail/greenkeys/
> 1998-to-2001 greenkeys archive: http://mailman.qth.net/archive/greenkeys/greenkeys.html
> Randy Guttery's 2001-to-2009 GreenKeys Search Tool: http://comcents.com/tty/greenkeyssearch.html
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html
> Message delivered to teletypeparts at comcast.net
-------------- next part --------------
A non-text attachment was scrubbed...

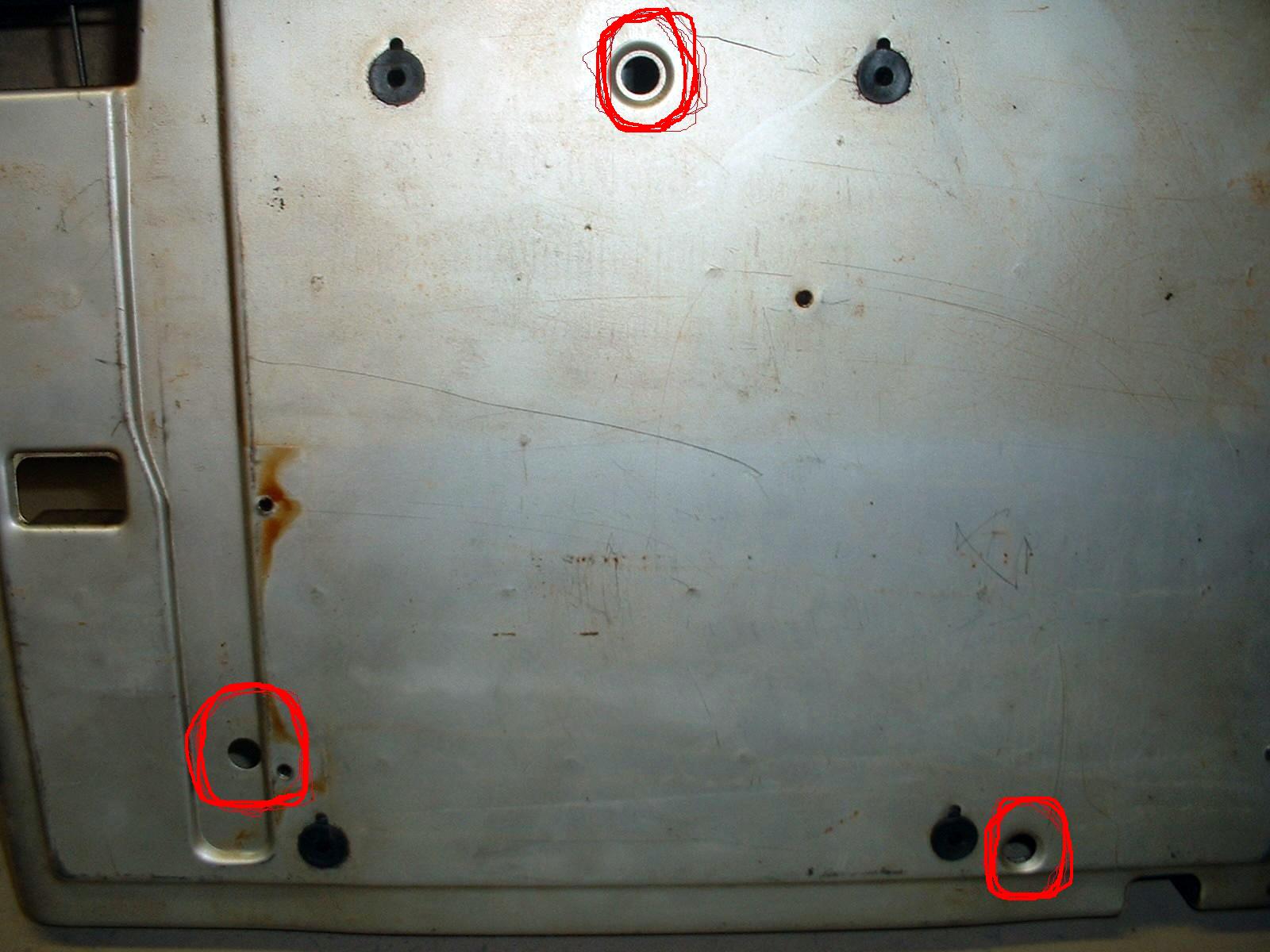

Name: Printer shipping screws location from underside.JPG
Type: image/jpeg
Size: 168870 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20170210/6f0216c5/attachment-0003.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...

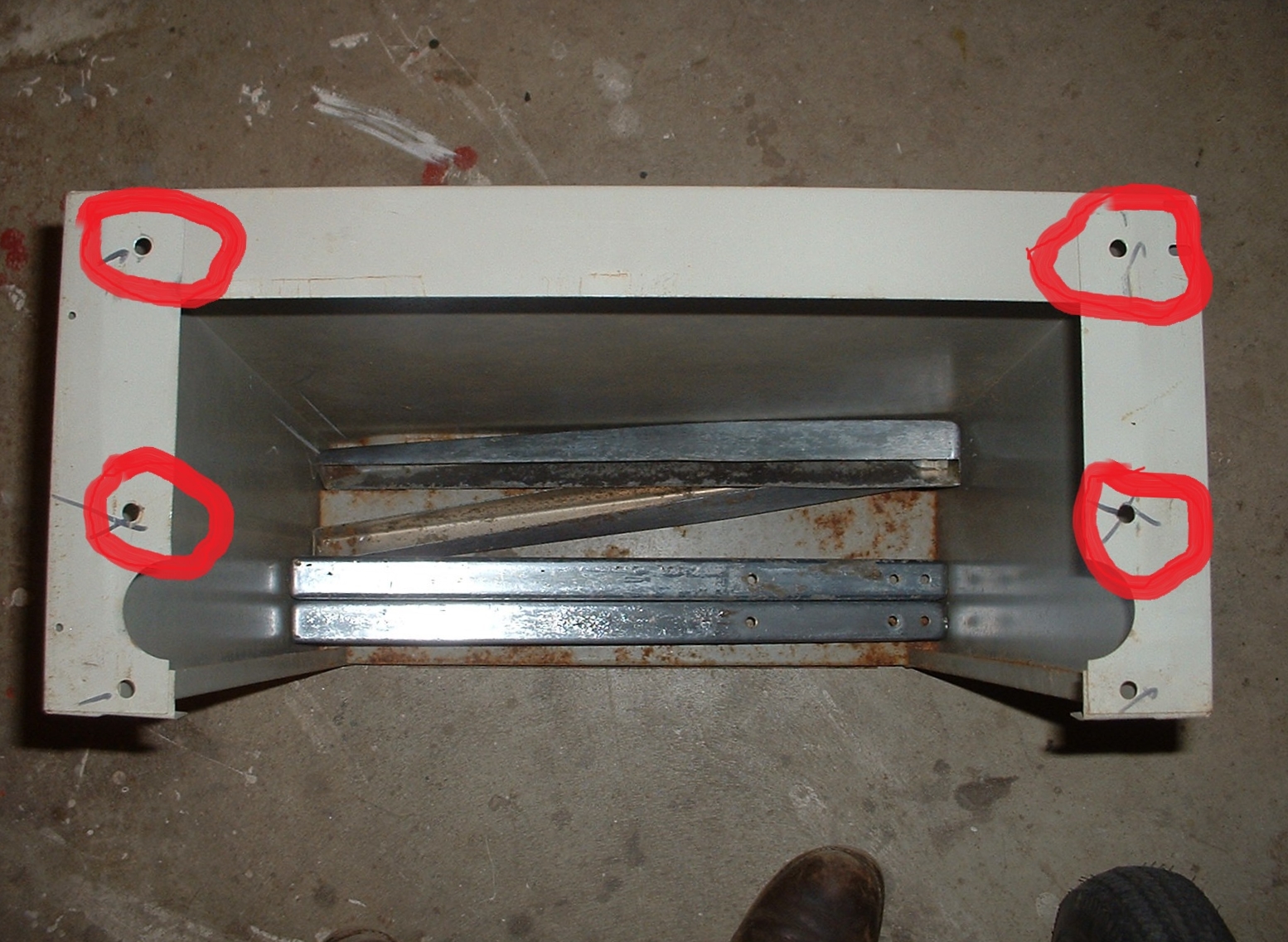

Name: Pedestal holes used for 33 mount.JPG
Type: image/jpeg
Size: 1039961 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20170210/6f0216c5/attachment-0004.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...

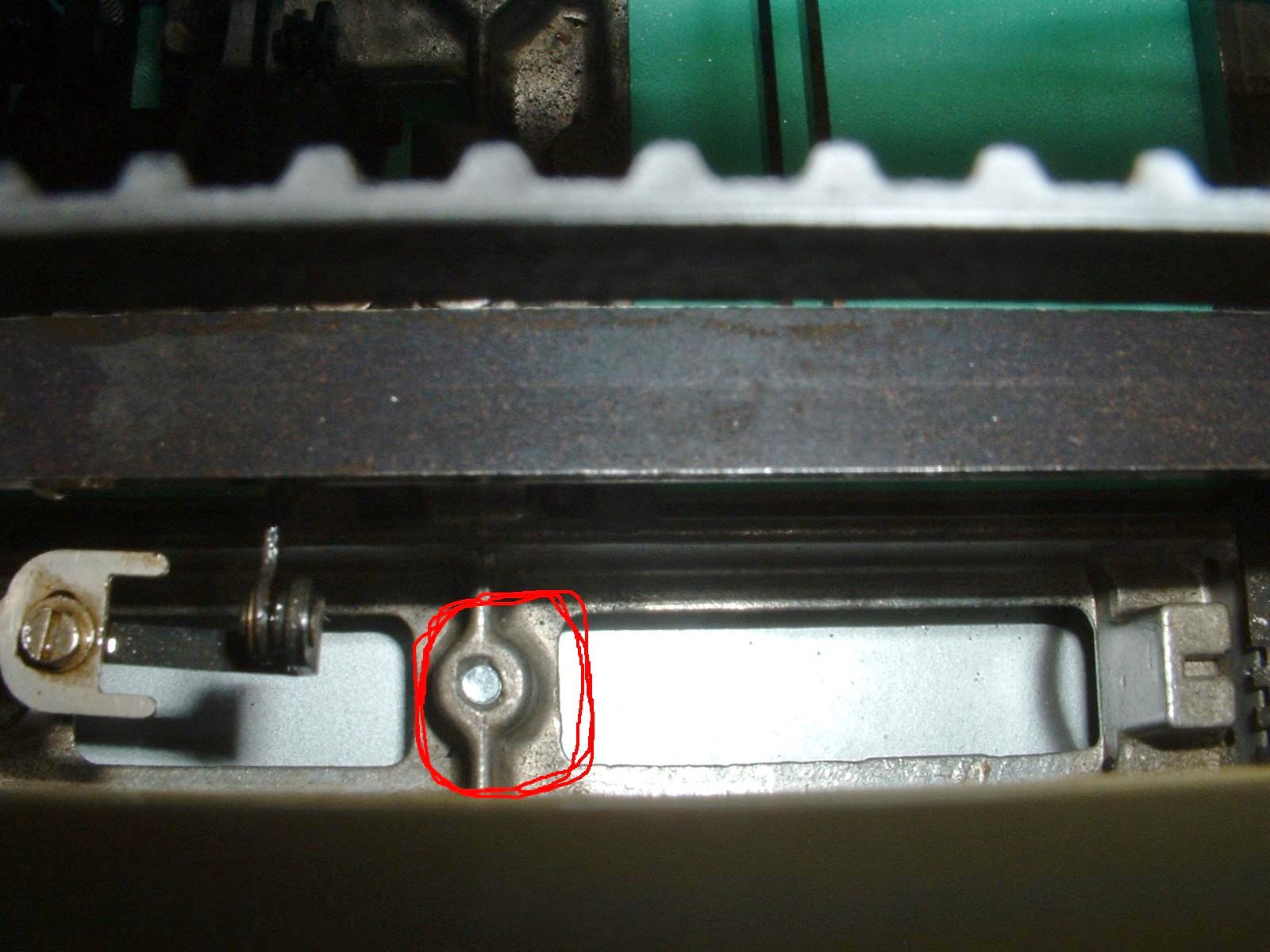

Name: Front printer shipping screw location with screw installed.JPG
