[GreenKeys] Model 19 progress and a few questions...

[E.]

Robert,

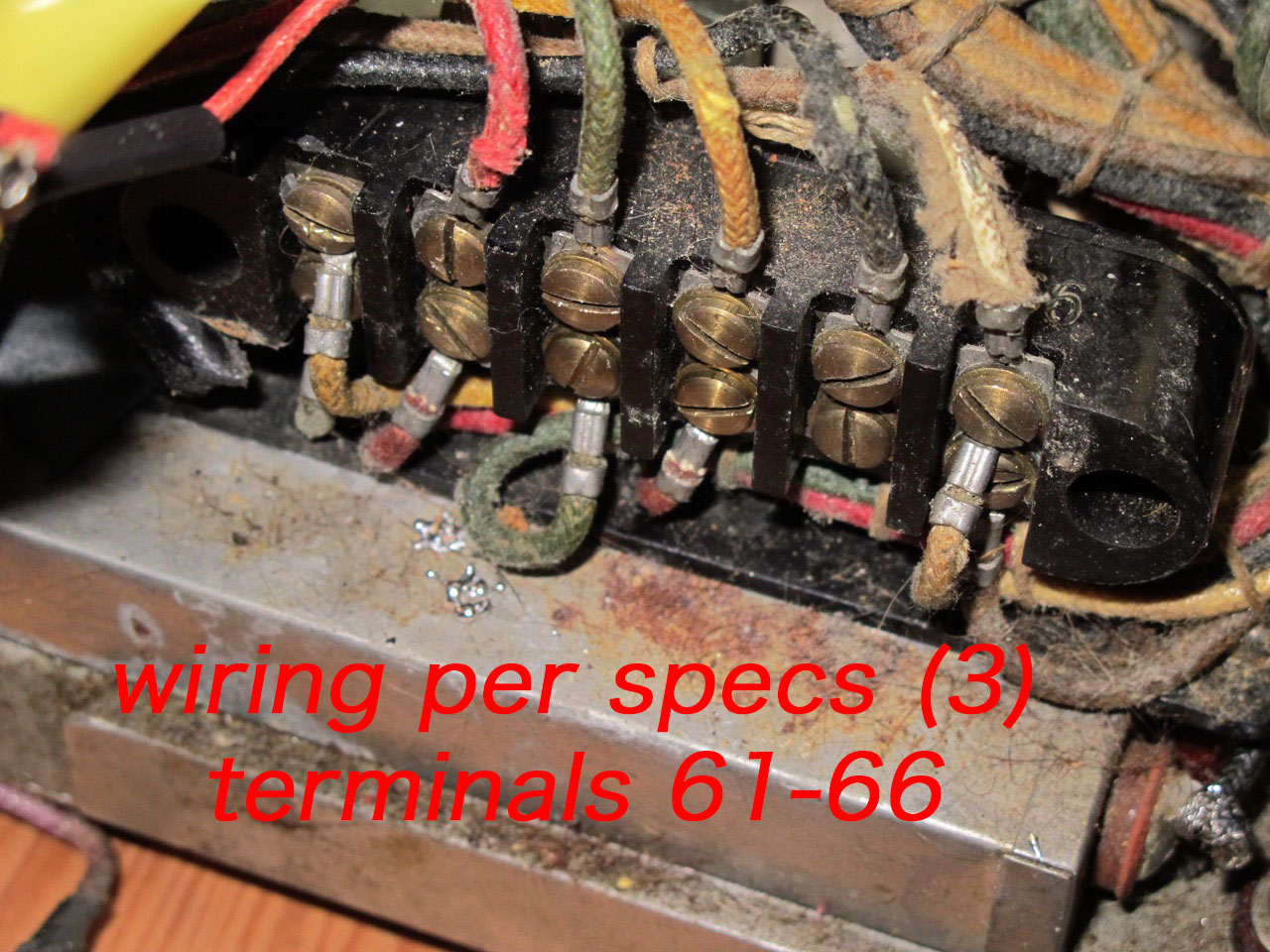

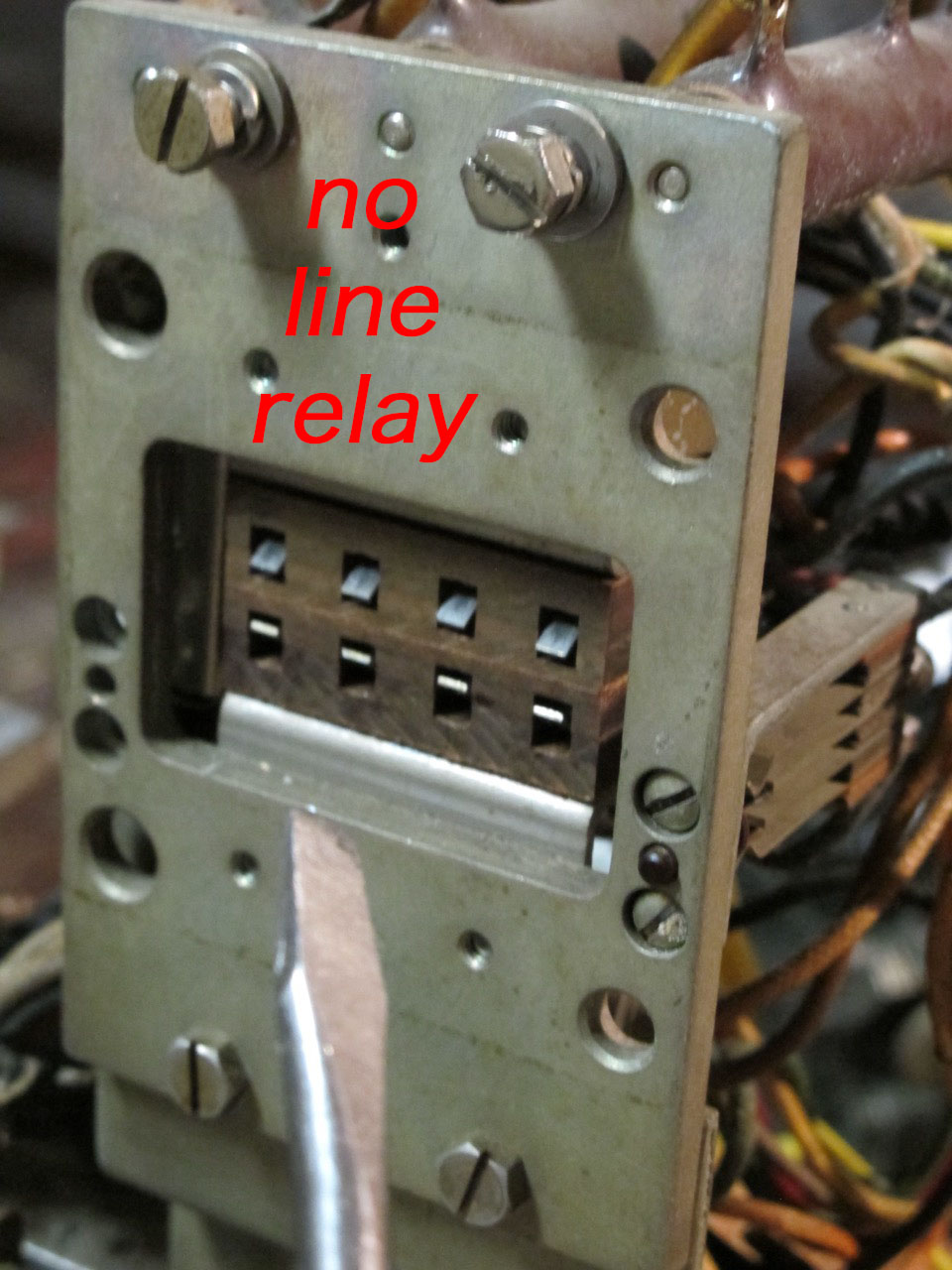

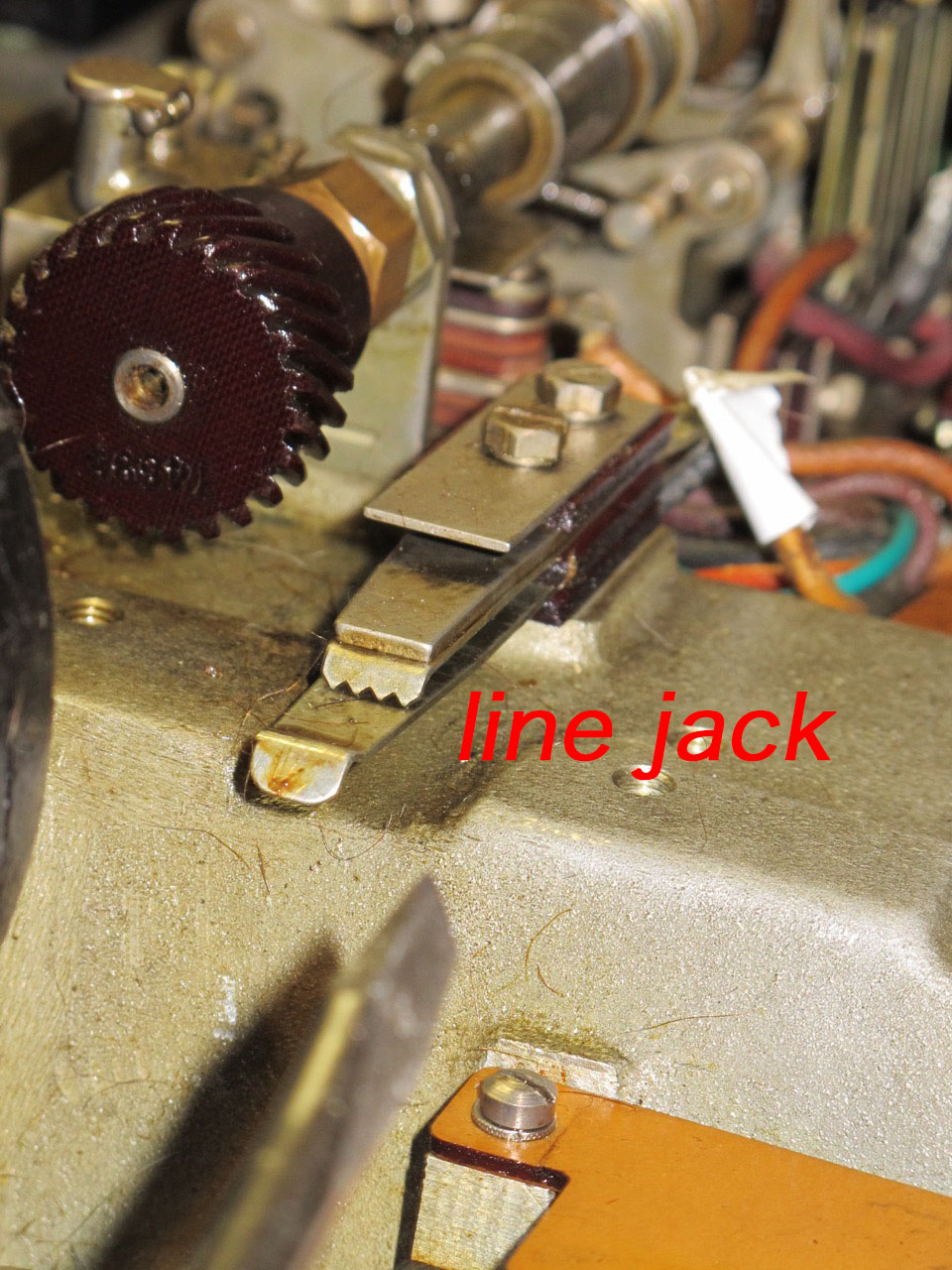

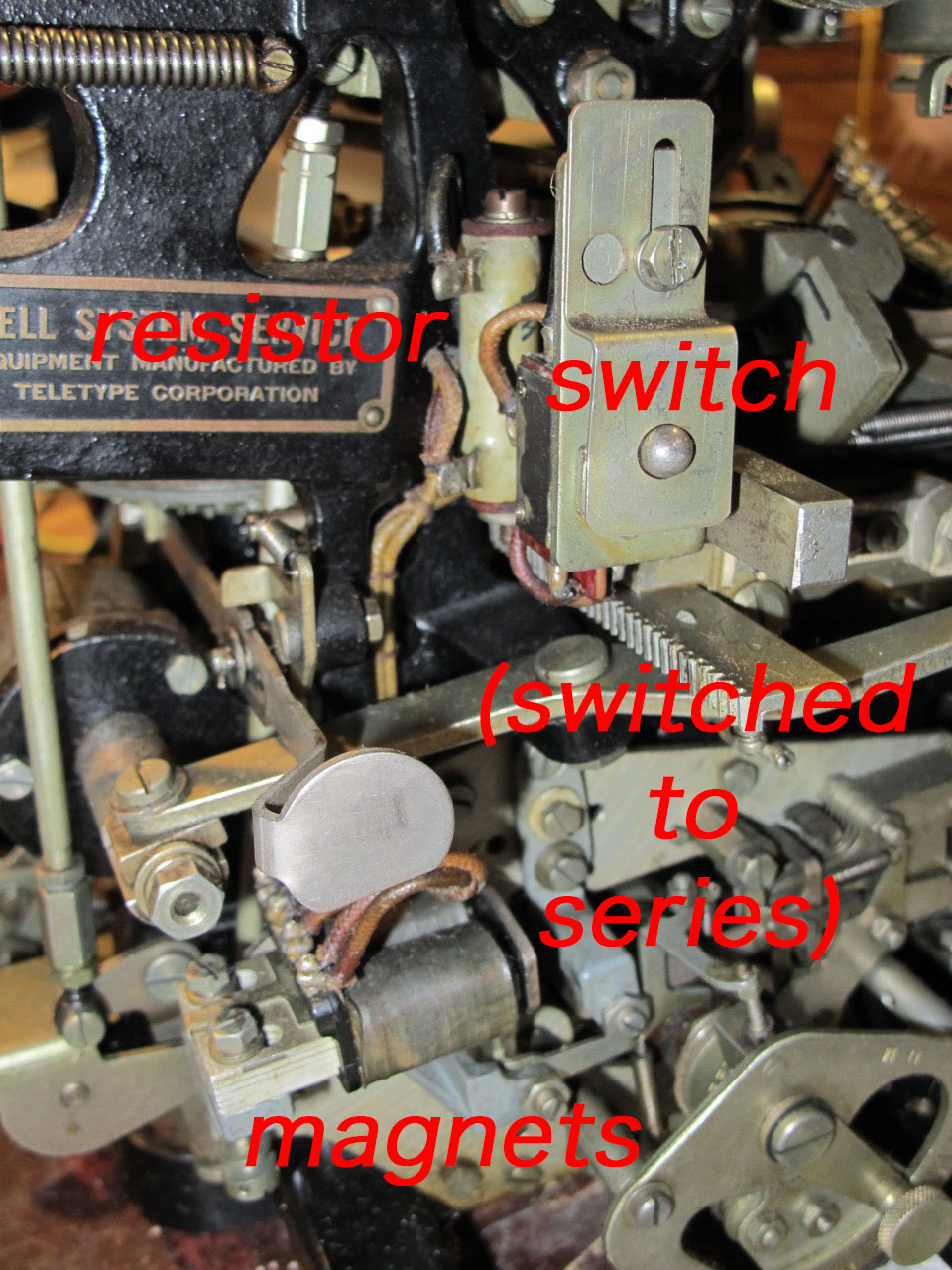

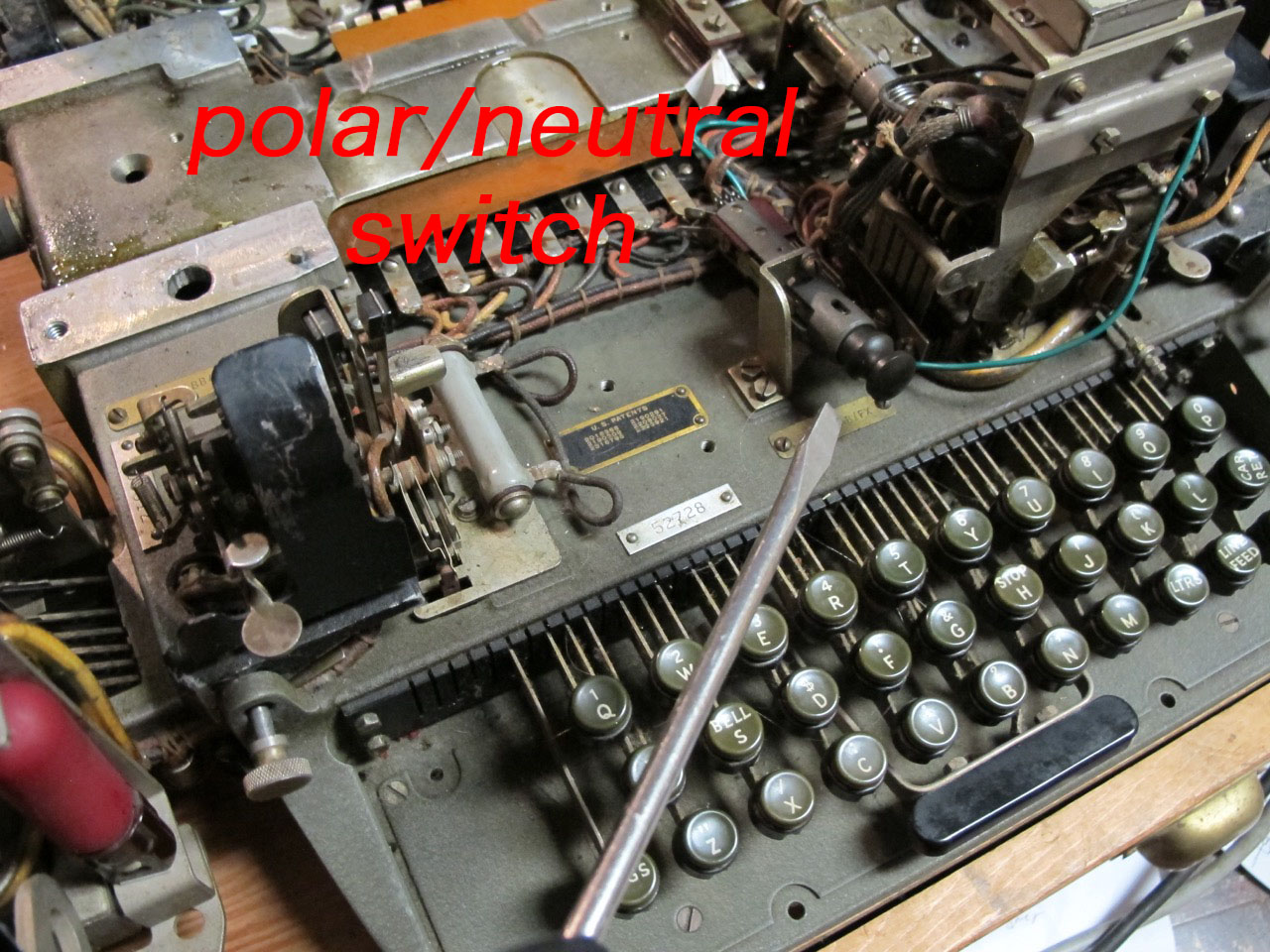

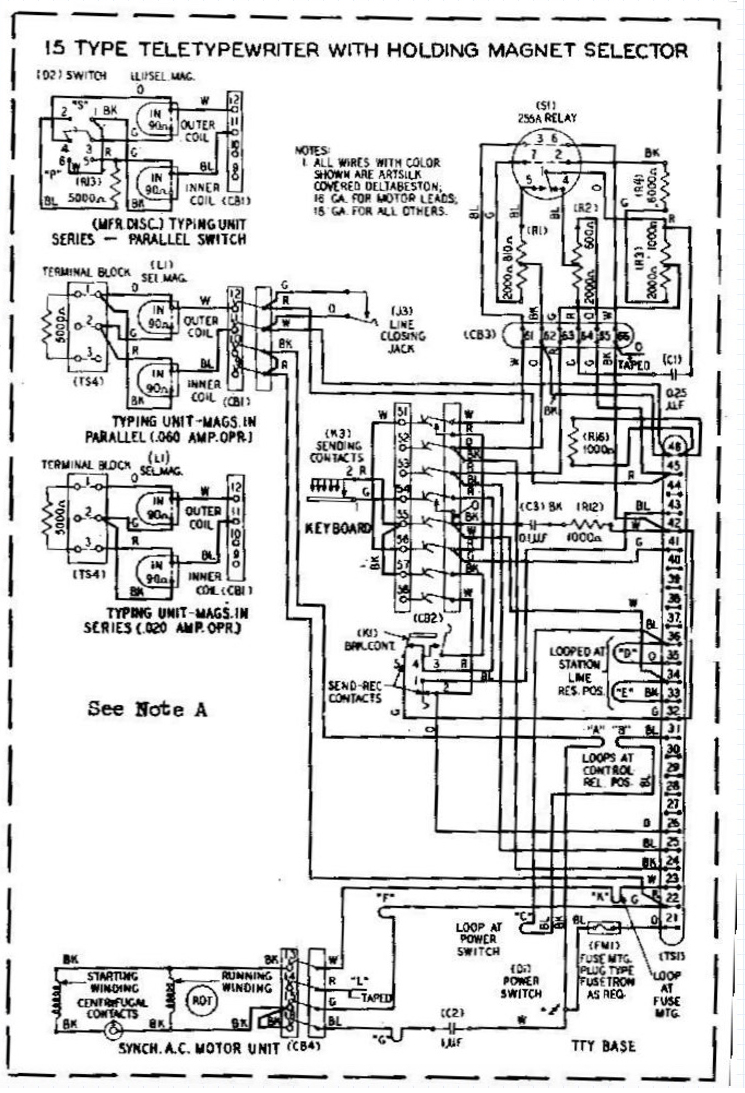

Line jack… sorry, got lost in translation.  Also sorry - the diagram I sent was the one I’ve been referring off to previously… Pete sent a bit of a better one (attached - also here:  http://www.rtty.com/development/teletype/model-15/index.html ).  Has 60/20mA switch (photo attached); no line (polar) relay (photo attached) but wired to bypass (directions and photo of terminals attached).  Also photos of polar/neutral switch and line jack attached.  Terminals 41 & 42 were the ones circled in red in the previous email, but now I know it was incorrect ;p (sorry again ;o ).  What to do with the line jack?

Hopefully the photos aren’t too bad - very late night photos ;p .  Anyways, have a good night and thanks again :) ~

Sincerely,
Eric
-.- ----- .--- .. .-




> On Aug 6, 2017, at 1:56 am, WA5CAB--- via GreenKeys <greenkeys at mailman.qth.net> wrote:
>
> Eric,
>
> If the "one red phone jack" that you are referring to is circled in red on the schematic that you sent, that's a plug, not a jack.  Jacks are female.  Plugs are male.  (although someone recently commented that there is a group of people somewhere who say it backwards).
>
> The schematic that you sent has a pulling magnet selector, so it doesn't have a 60/20 mA switch.  Does your 19 still have a polar relay in it?  The schematic shows that the red receiving line plug goes to the polar relay socket.  And also shows a polar/neutral switch.
>
> Unfortunately, I haven't managed to locate terminals 41 and 42.  The majority of the terminal numbers on the schematic are illegible.
>
> Robert Downs - Houston
> wa5cab dot com (Web Store)
> MVPA 9480
>
> In a message dated 08/06/2017 01:02:16 AM Central Daylight Time, hanyou at xsmail.com writes:
>> Robert:
>>
>>
>> >But if yours has a 1/4" 2-circuit jack, Line means the external signal line.  Unless the machine has a switch for doing this, you will probably need to plug a shorted phone plug into the line jack in order to get   Or at least you will if the loop supply is internally connected.
>>
>>
>> Mmmm, I have one red phone jack… if I’m reading you right.  Also, if I’m reading you right, since my loop supply is external, I should… jump terminals 41 and 42 (attached), in order to… get the typing unit working (since it doesn’t do anything when pressing keys)???  Sorry, your message kinda got chopped off there towards the end ;p .  As for a switch… the only switches that I have - that I’m aware of, are the send/receive/break switch, the keyboard/perforator switch and 60/20ma switch.  Oh - and the power switch, too ;p .
>>
>>
>> Once again, thank you everyone so much for you help ^^ !!!  Slowly - almost, I am getting there ;D !!!~
>>
>>
>> Sincerely,
>> Eric :)
>>
>
>
