[GreenKeys] Function pawl removed to disable for no AB trip

[Wayne Durkee]

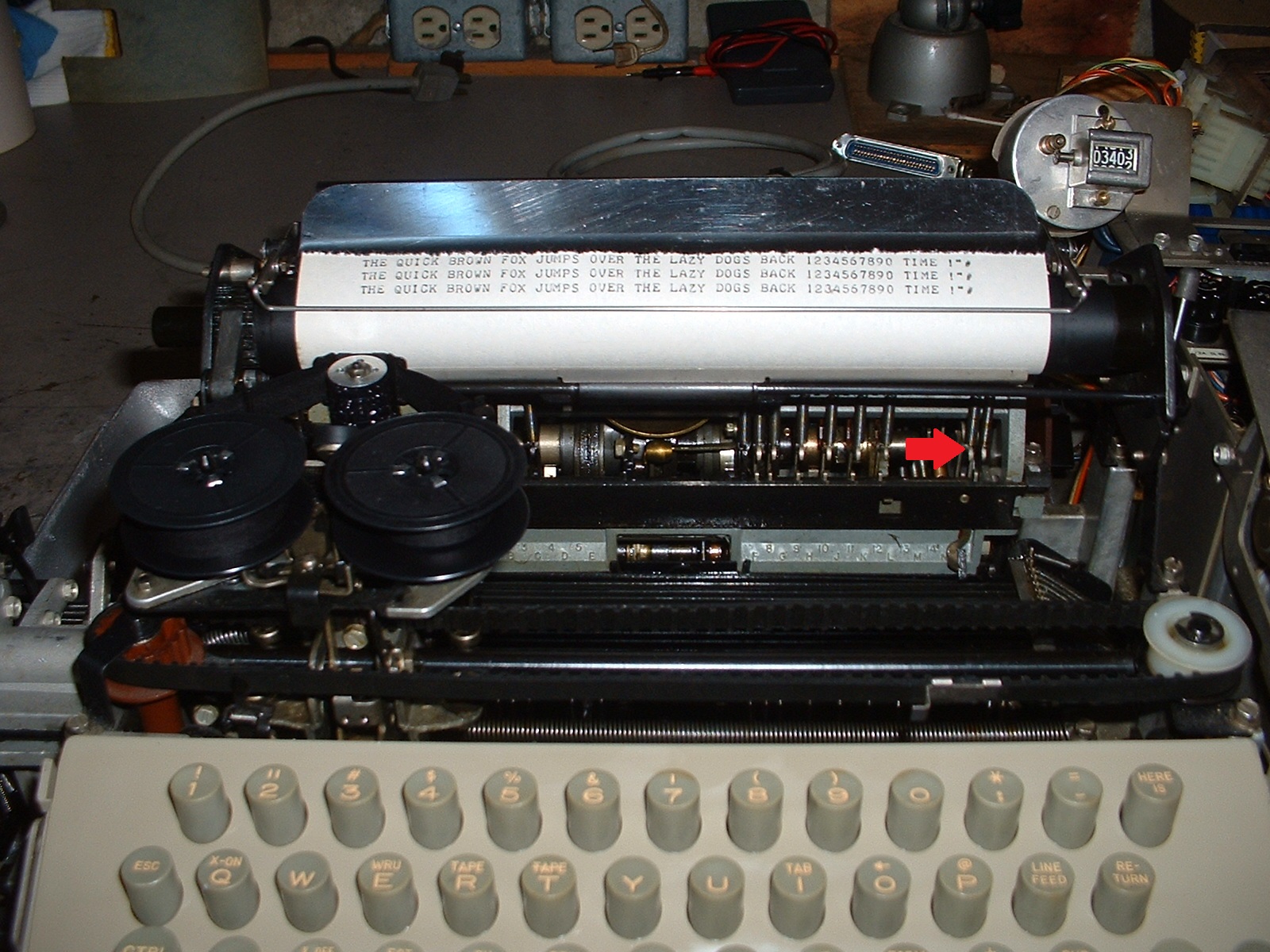

OK, gentlemen, here is a pic of the pawl to remove to disable your Here Is or AB drum when receiving data from another source other than your kybd or tape reader.  The red arrow points to the correct pawl.


You will still be able to use the Here Is when you hit the Here Is key.


The pic is of a 33, but its in the same place on a 32.  Remove spring, slip the function pawl down and back to remove it.


Wayne
