[GreenKeys] Help with No Print Bracket

[Wayne Durkee]

First, the tape punch:


Quite a few later model 33's had the remote tape ON and tape OFF function built in.  Its controlled by the keyboard or distant end TTY or a computer.  Cut the tape where it feeds into the tape punch and remove the small piece of tape from the punch.  Reload the tape when you have finished the work.


Most of us TTY guys talk Mark and Space, not the way you expressed the code.  We are just old timers and its easy to confuse us or me anyway.

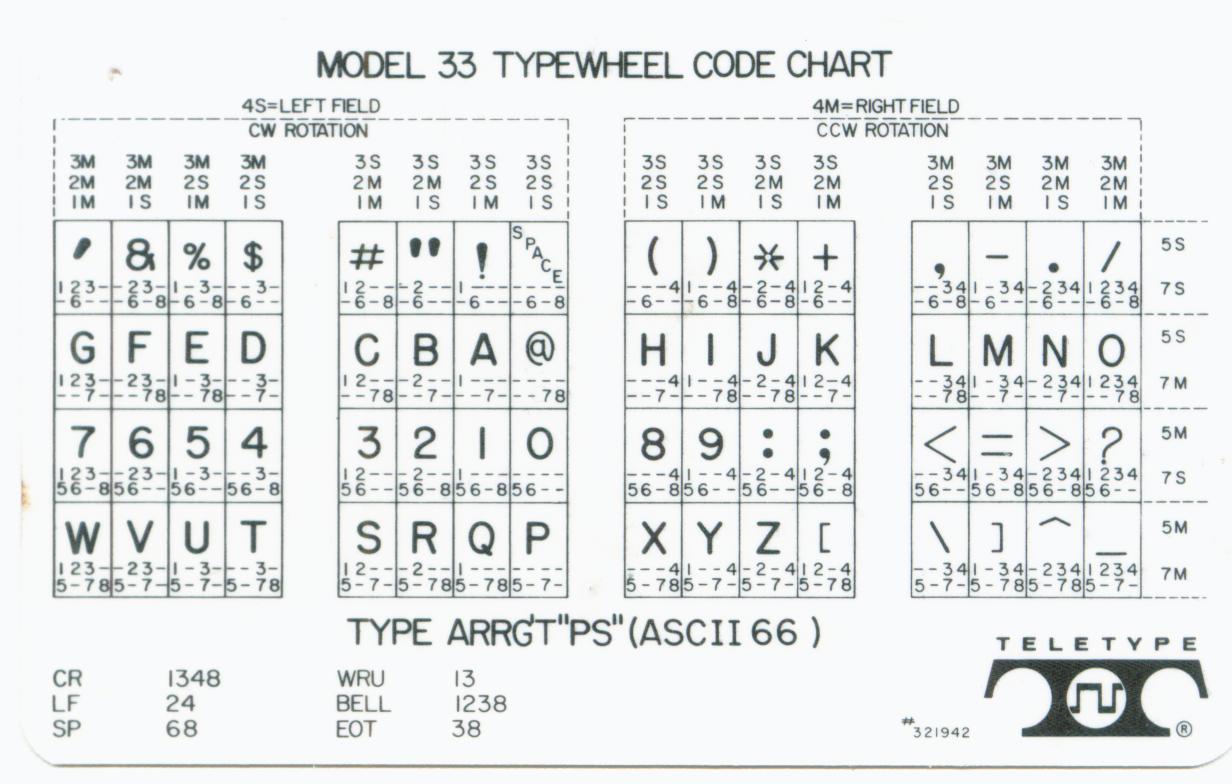

The 33 uses ASCII code.  I will attach a pic for you.

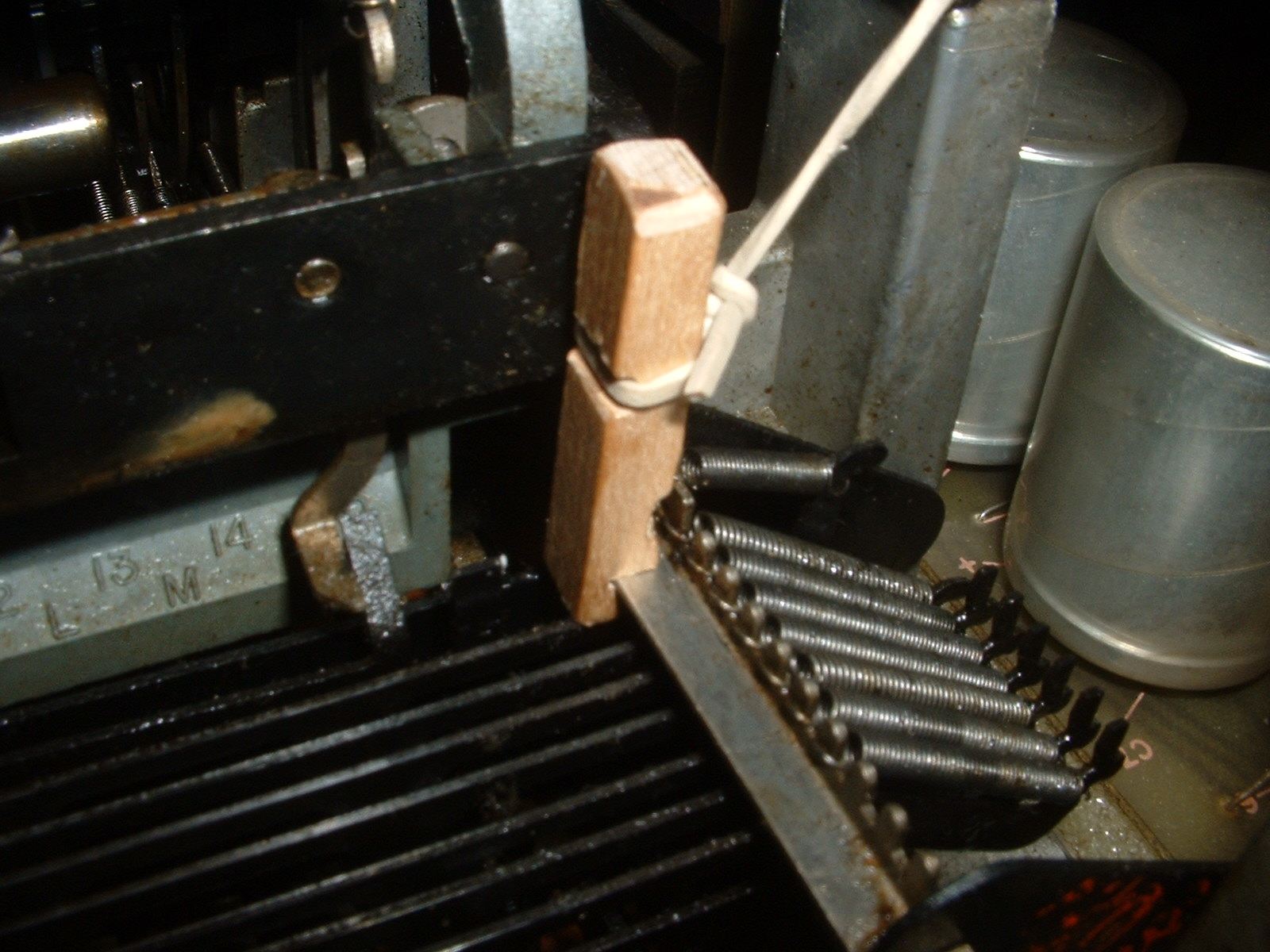

To stop the printing, there is a homemade function to do that, one I toggled up with a clothspin and one Mike Douglas improved on with metal parts.  See all pics.


Wayne

KB1FDW

>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20161119/a90a5389/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 33 typewheel code chart.jpg
Type: image/jpeg
Size: 116504 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20161119/a90a5389/attachment-0001.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

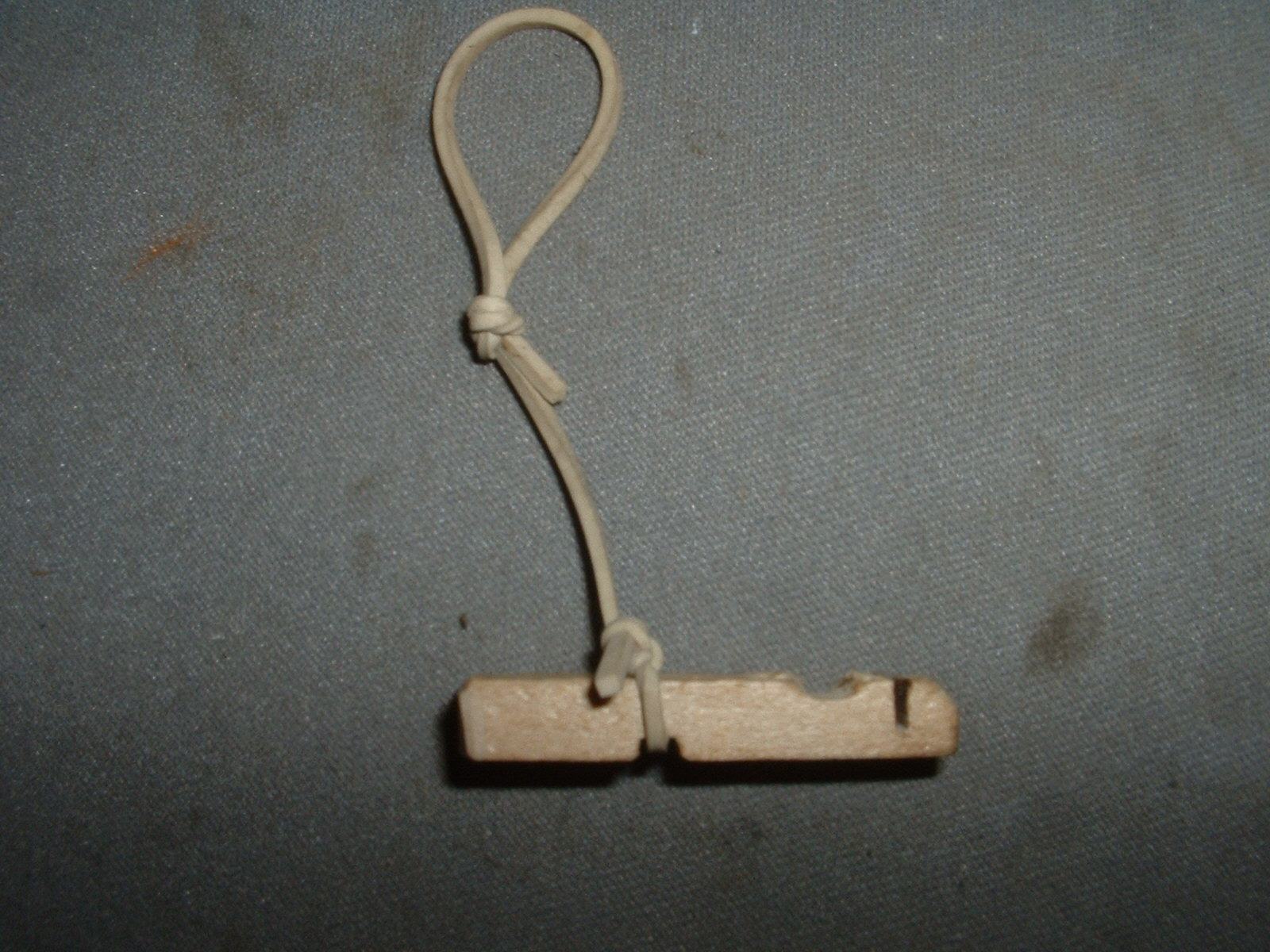

Name: A the part.JPG
Type: image/jpeg
Size: 385463 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20161119/a90a5389/attachment-0003.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: B in place.JPG
Type: image/jpeg
Size: 376438 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20161119/a90a5389/attachment-0004.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Final version in place.bmp
Type: image/bmp
Size: 766134 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20161119/a90a5389/attachment-0004.bmp>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Final version.bmp
Type: image/bmp
Size: 797814 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20161119/a90a5389/attachment-0005.bmp>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Improved metal part.bmp
Type: image/bmp
Size: 919094 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20161119/a90a5389/attachment-0006.bmp>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Metal part in place.bmp
Type: image/bmp
Size: 919094 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20161119/a90a5389/attachment-0007.bmp>
-------------- next part --------------
A non-text attachment was scrubbed...

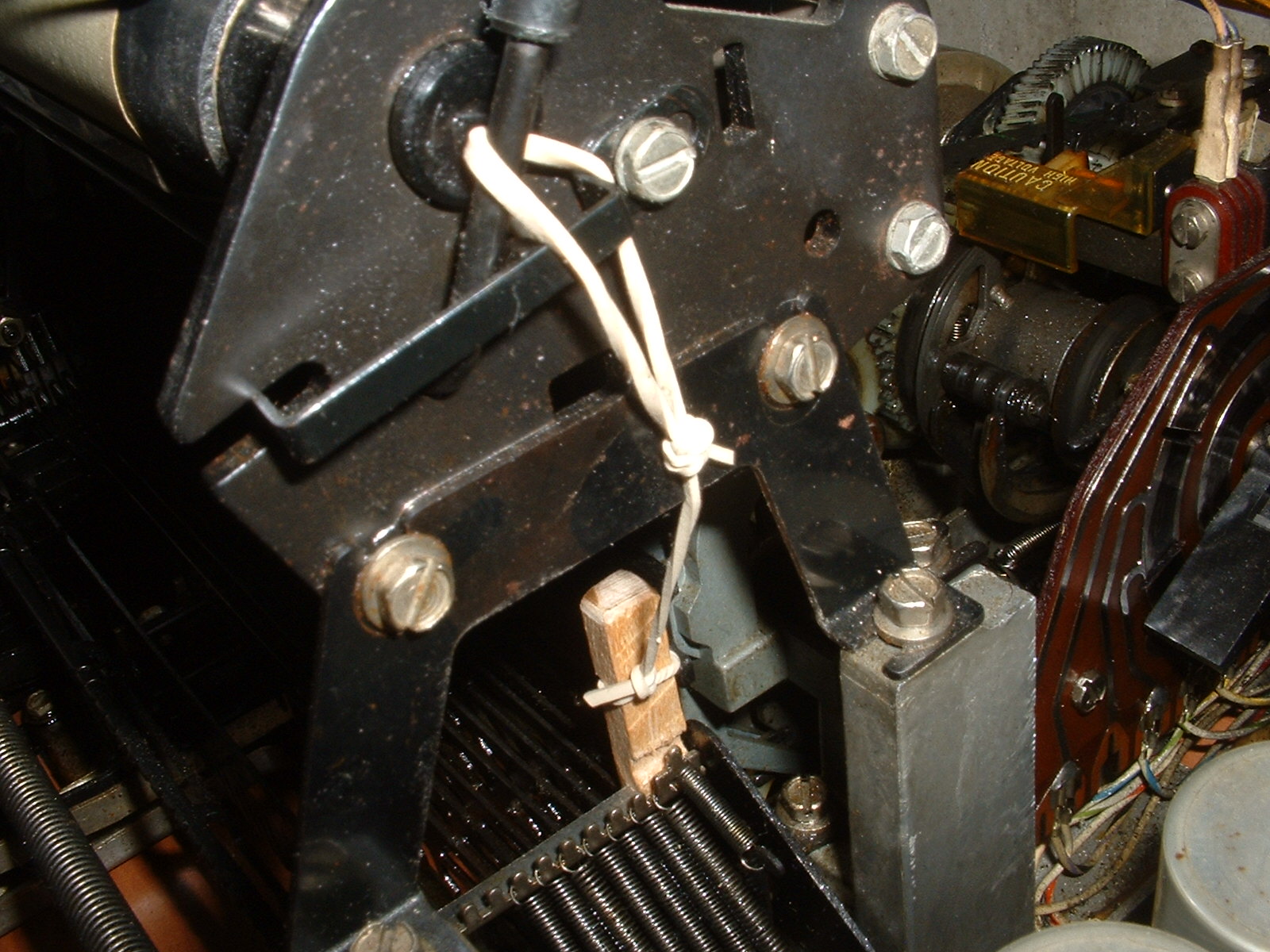

Name: Rubber band to help hold in place.JPG
Type: image/jpeg
Size: 407227 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20161119/a90a5389/attachment-0005.jpe>
