Jeff,

Nice!

There is something about using 409 first and then the solvent or alcohol. The 409 gets it started and the solvent finishes it.

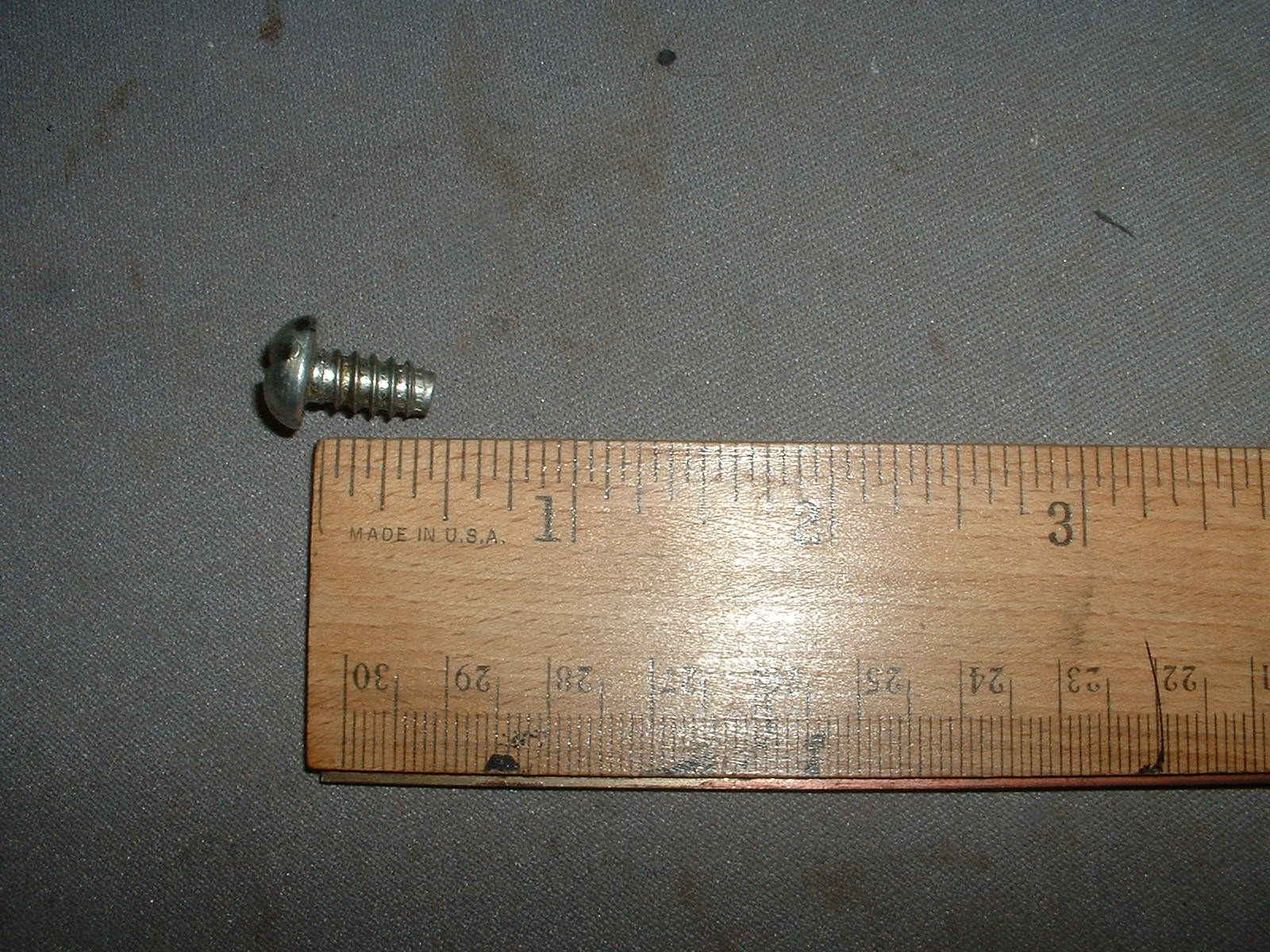

I attach a pic of the screws you need to hold the 33 to the pedestal. Use a flat washer as well. Also assembly info which has some good stuff in it. The screws are going into plastic nuts so not too tight on them.

You can use sheet metal screws if you grind the points off. Once you use them you cant go back to the Teletype screws. I would send you some but only have a few left.

Wayne



----- Original Message -----

From: "Jeff Albrecht" <jeffa at rodaw.com>
To: GreenKeys at mailman.qth.net
Sent: Sunday, May 8, 2016 4:35:25 PM
Subject: [GreenKeys] Retrowagon ASR 33

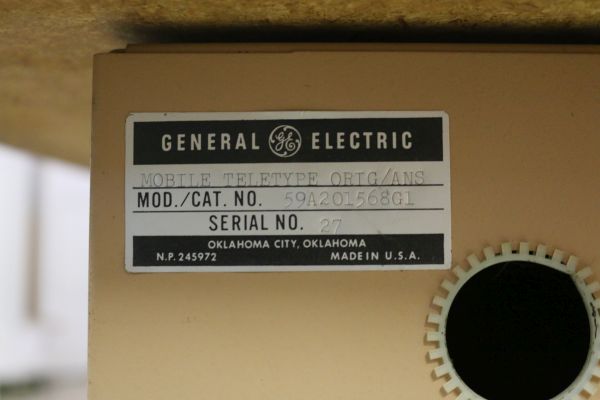

I've got my ASR33 working pretty well. MegaThanks to Wayne!! I swapped the stand of my KSR on to the ASR. The ASR was on a GE 'Mobile Teletype orig/ans' labeled stand. Probably a relationship between the definition of mobile and Moore's law ehh? Is anyone specifically looking for one of these GE desks /stand? and/or know a little history of the GE desk?

I made a current loop to RS-232 converter from plans of Mike Douglas (deramp) I've tested it working.

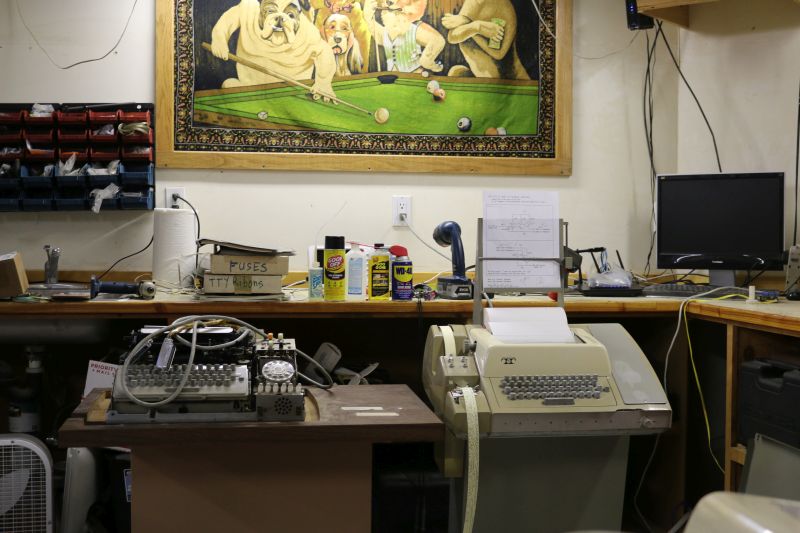

Note the array of lubricants and fluids recently used. The labels came off pretty well. A little to well on the cover where the dialer would go where I used 'goof off'. Perhaps it's revealing the true color - it didn't bubble up. Here is a before picture where you can see the labels that have been removed. http://retrowagon.org/wiki/index.php/File:Teletype_Model_33_Repair.png
I think the Formula 409, in my case Simple Green, and Alcohol were the two best chemicals in my cleaning. The 409 got most of the paper and some gum offf, while the Alcohol was helpful in the last mile. Lot of elbow grease too. The keys still have a kind of white chalky feeling substance on them. Thanks to all for the suggestions of removal procedures.

A shame the front edge of the case is broken above the power switch. But all in all not to bad. I do have a copy holder and a chad box.

Went to Homedepot for some PVC to make a spindle for the punch paper tape holder.

I need to find all the screws that hold the case to the base. And a couple springs for the paper cover.

- jeffa KF7CRU
