On 1/7/2016 1:20 PM, Jeffrey D Angus wrote:
> Probably need to add a small trim pot to adjust the level
> variation on the transistor.
>
> But we have a signal that accurately reflects the RPM
> using the original markings on the motor.
Adding a trim pot and a CMOS buffer stage, we have a good logic
output now.

--
Jeff-1.0
wa6fwi
http://www.foxsmercantile.com

-------------- next part --------------
A non-text attachment was scrubbed...

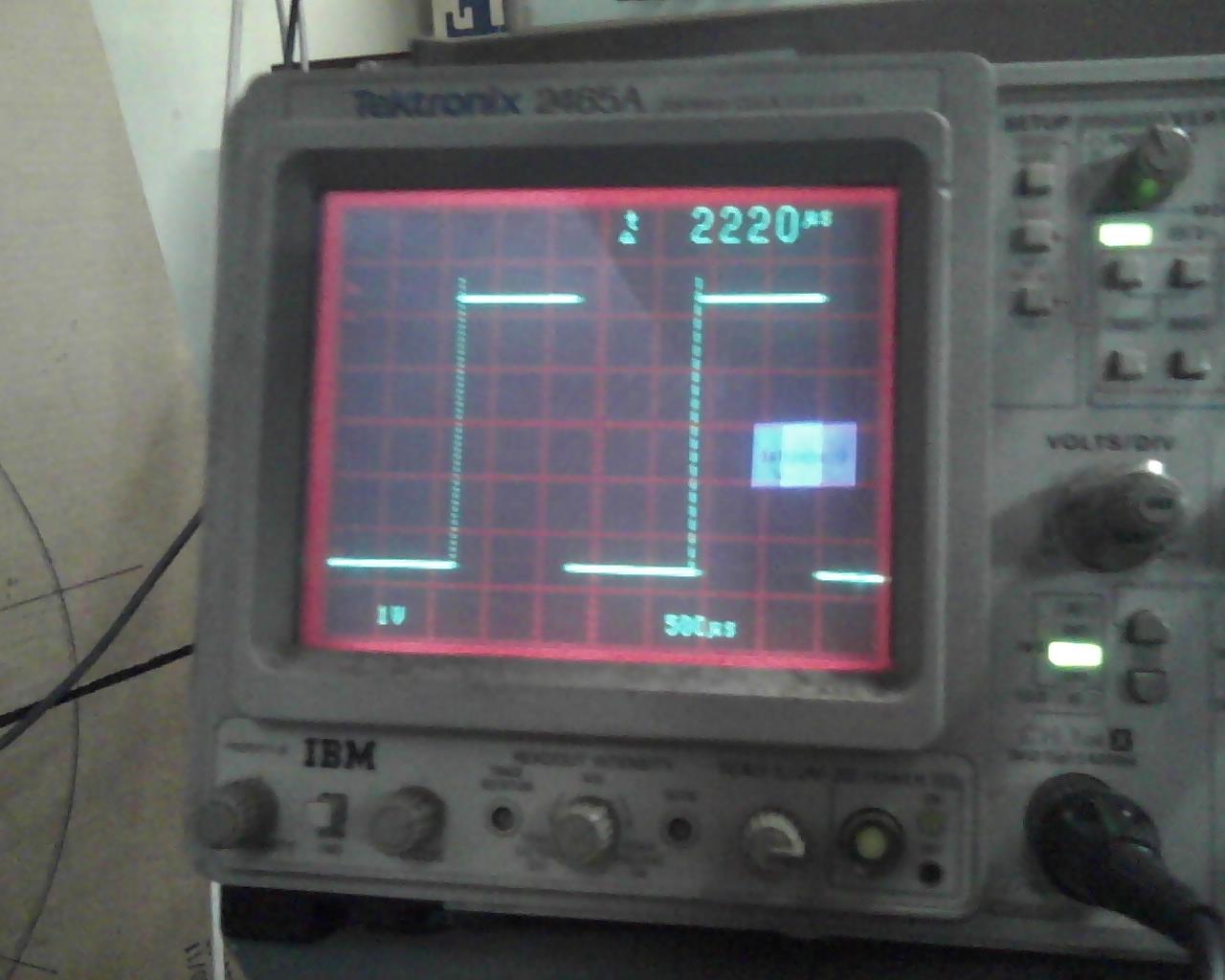

Name: Motor Speed Sensor output.jpg
Type: image/jpeg
Size: 100359 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20160110/3ce7481b/attachment-0002.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

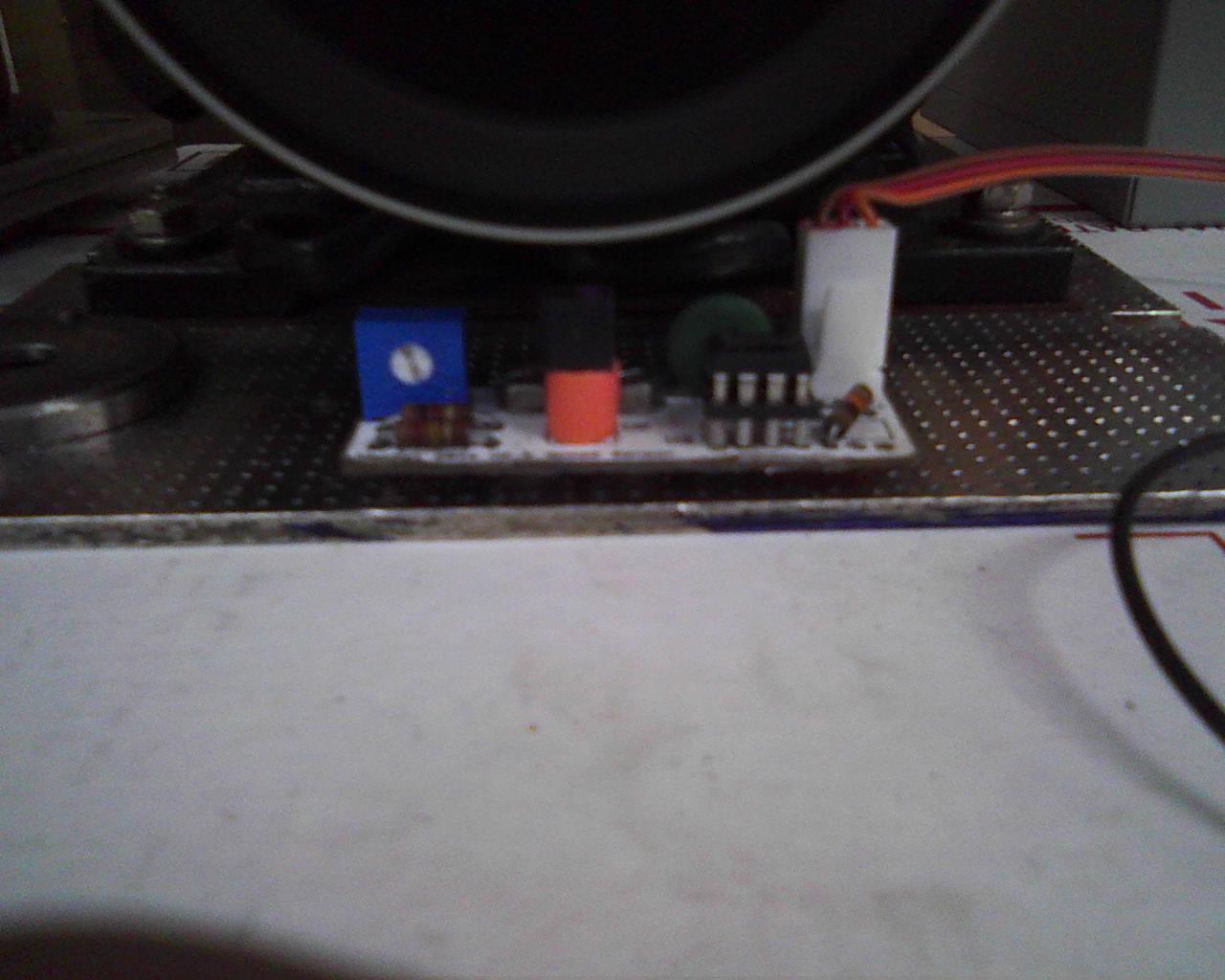

Name: Motor Speed Sensor RPR-220.jpg
