[GreenKeys] Lorenz Motor Control Project

[Jeffrey D Angus]

"Houston we have ignition!"

The Lorenz Lo-15b is running with the digital control loop.
A simple "flick of a switch" switches between two speeds.
2454 RPM for 45.45 Baud (60 WPM) operation and 2700 RPM for
50 Baud (66 WPM) operation.

Speed regulation between steady mark or space or printing is less
than 0.1%.

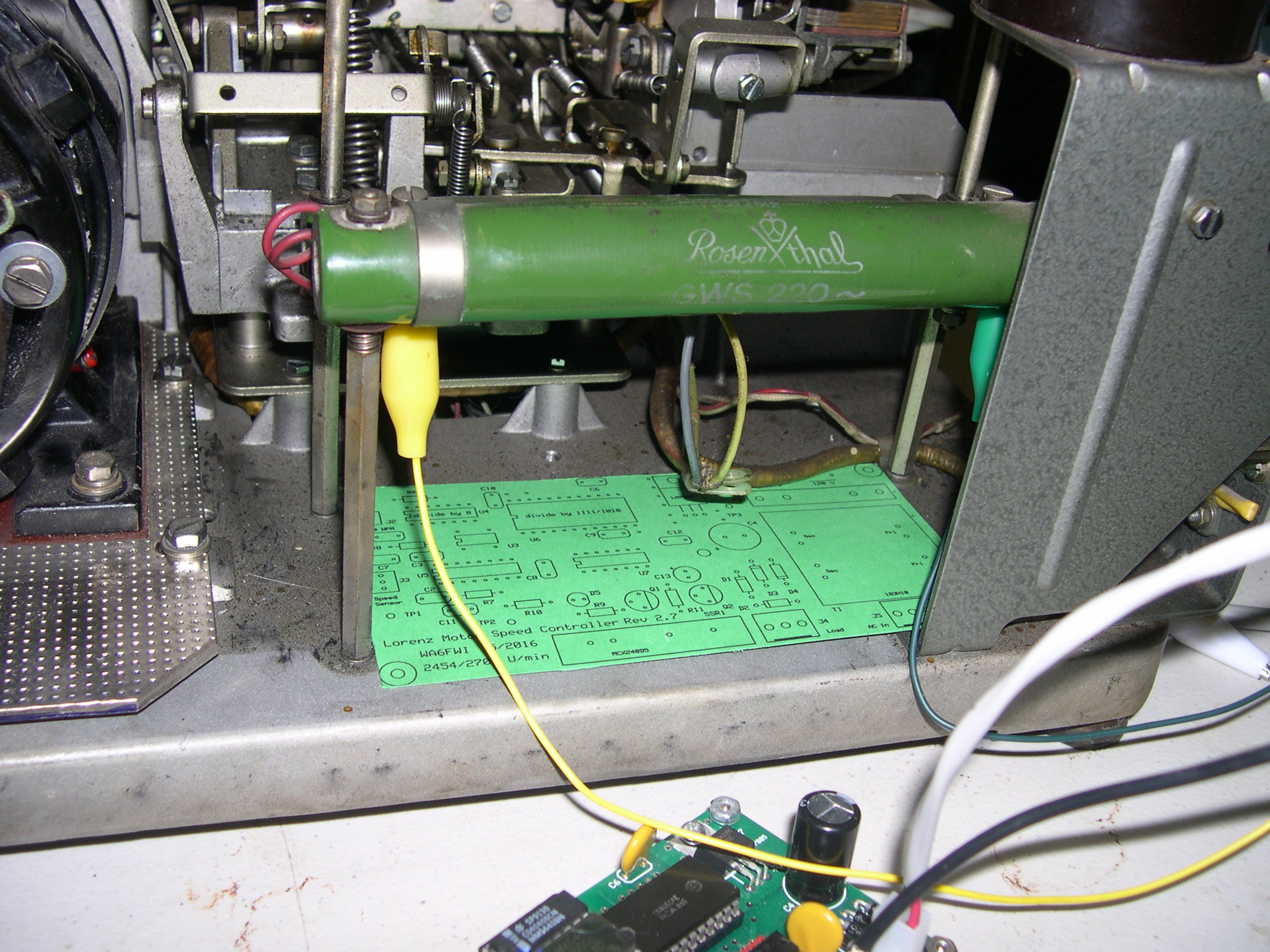

A mockup of the final PC board, 5.60" by 3.00" fits underneath the
two power resistors.

--
Jeff-1.0
wa6fwi
http://www.foxsmercantile.com
