On Sep 4, 2015, at 9:35 PM, Paul Heller <paul0926 at comcast.net> wrote:

> I was inspired by Jack K0TTY to build a small current loop patch box,

It turns out that the RIGHT small loop switch box can be VERY versatile.  The Phone company and the military used a small patch box that will do an amazing amour of patching.  See pictures below.  If you EVER see one of these things at a fest, do not pass it up.

 If you are tempted to build one of these yourself, gather the CORRECT jacks and be prepared to do a lot of tedious wiring.

> I think i need different panels for audio and current loop because only one seems too small.

Keep them separate, or at least plug- Incompatible.






Roy Morgan
k1lky68 at gmail.com
K1LKY Since 1958

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20150910/a58b8492/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

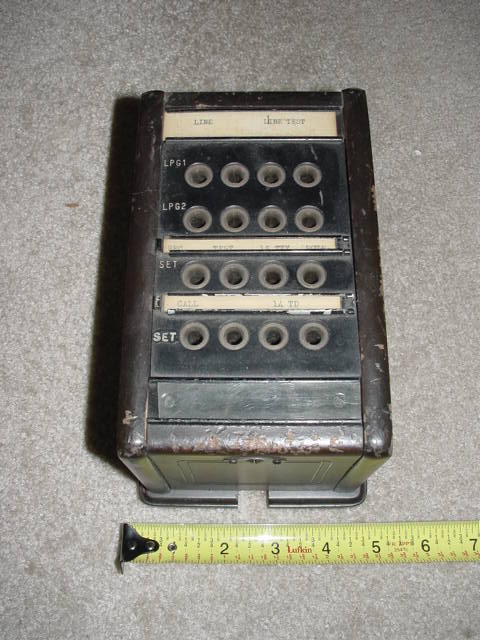

Name: TelcoPatchPanel3.jpg
Type: image/jpg
Size: 61982 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20150910/a58b8492/attachment-0002.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...

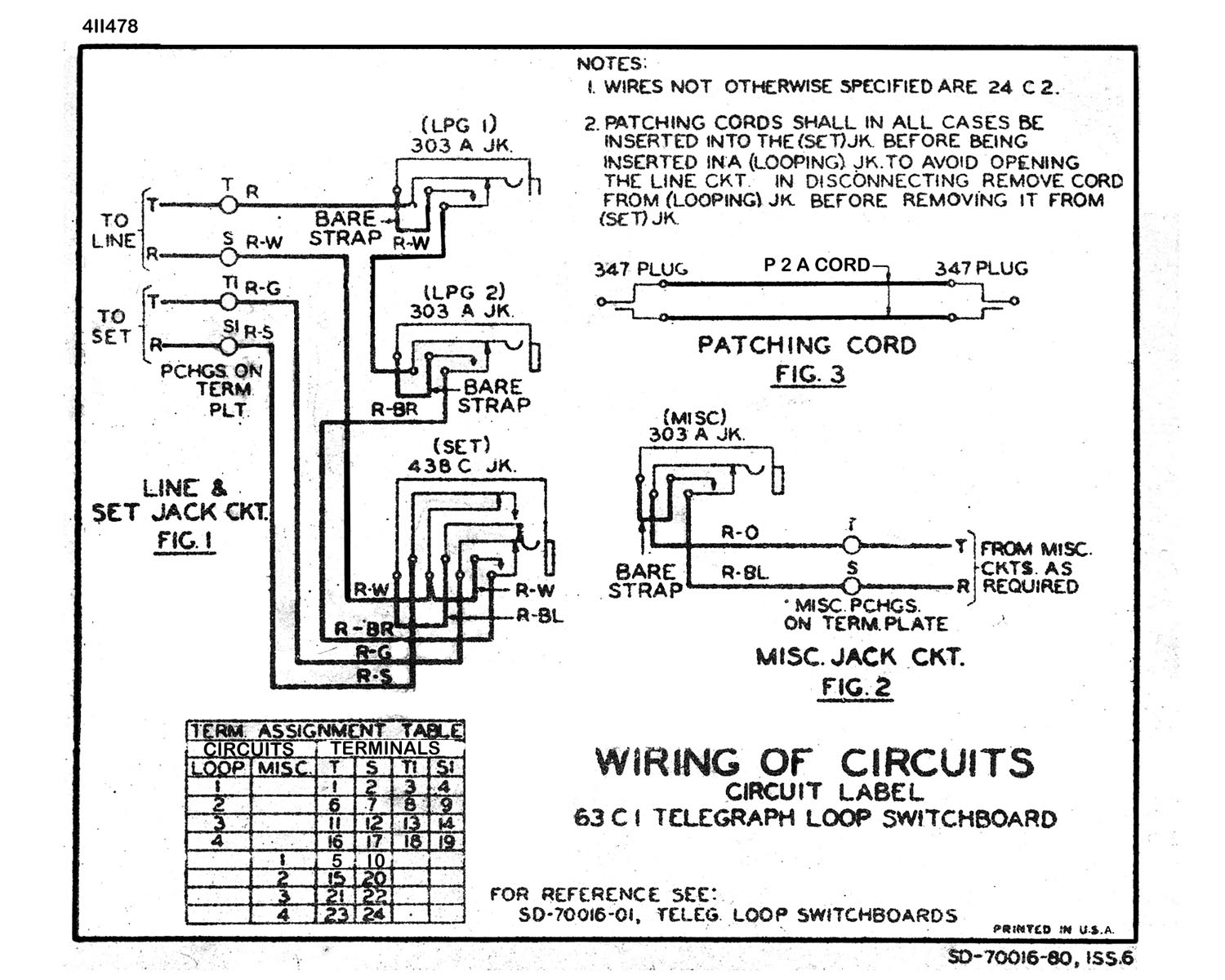

Name: TelcoPatchPanael 63C1 Loop Swbd.jpg
