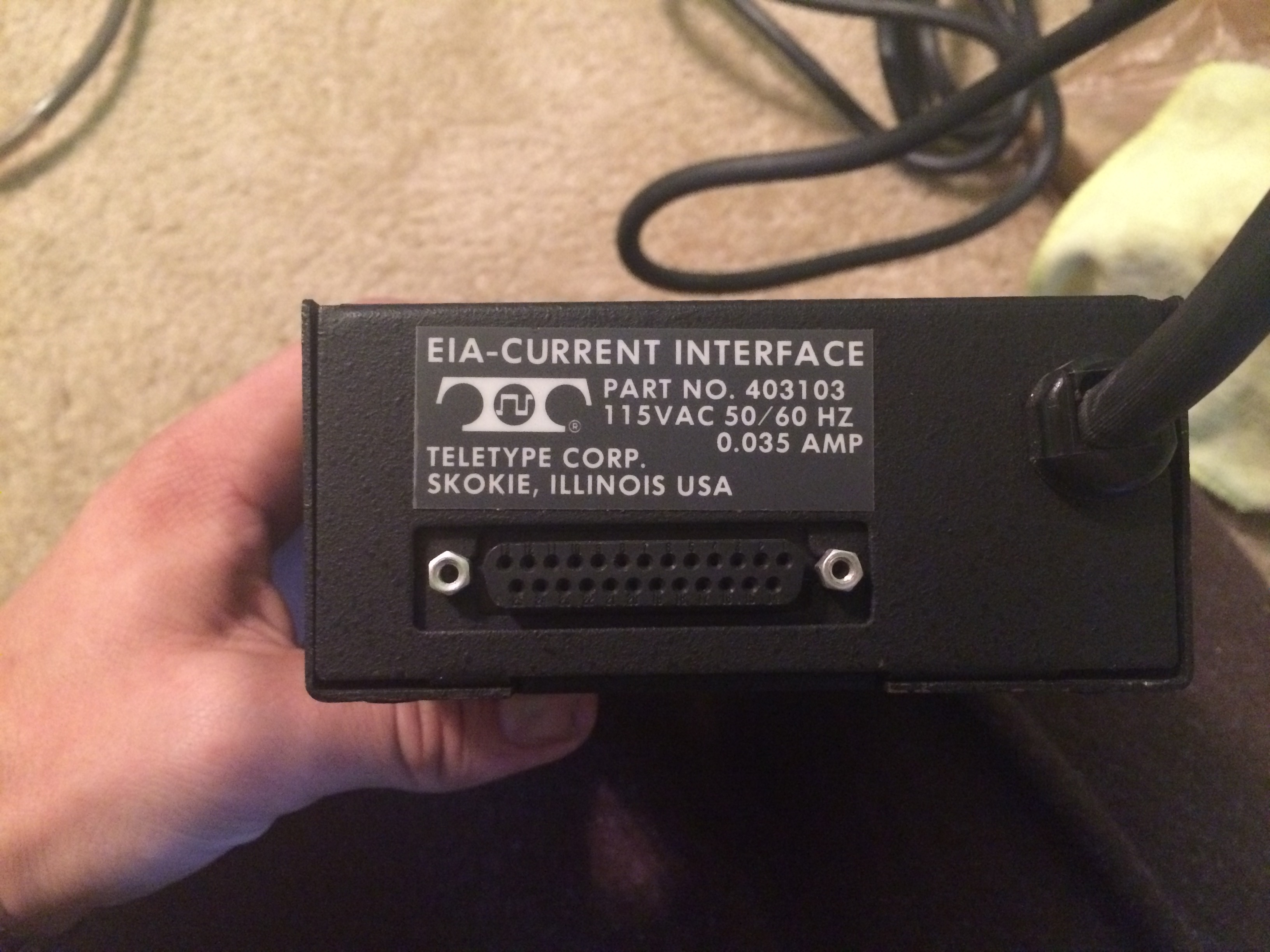

Hey all, here are the requested photos. If you are viewing this email on
greenkeys, and can't see the embedded images, please follow the link here
to view the album.  http://imgur.com/a/Nq8Ds

Thank you :)

[image: Inline image 4][image: Inline image 2][image: Inline image 3][image:
Inline image 6][image: Inline image 5][image: Inline image 1]

On Sun, Jul 26, 2015 at 11:43 AM, Robert Laag <rlaag at pacbell.net> wrote:

> PLEASE SEND A PICTURE TO ME AS WELL...
>
>
>
>   On Sunday, July 26, 2015 8:35 AM, Sarah Autumn <neverether at gmail.com>
> wrote:
>
>
> Yep! I'll take some pictures today.
>
> On Sun, Jul 26, 2015 at 6:31 AM Mike Douglas <deramp5113 at yahoo.com> wrote:
>

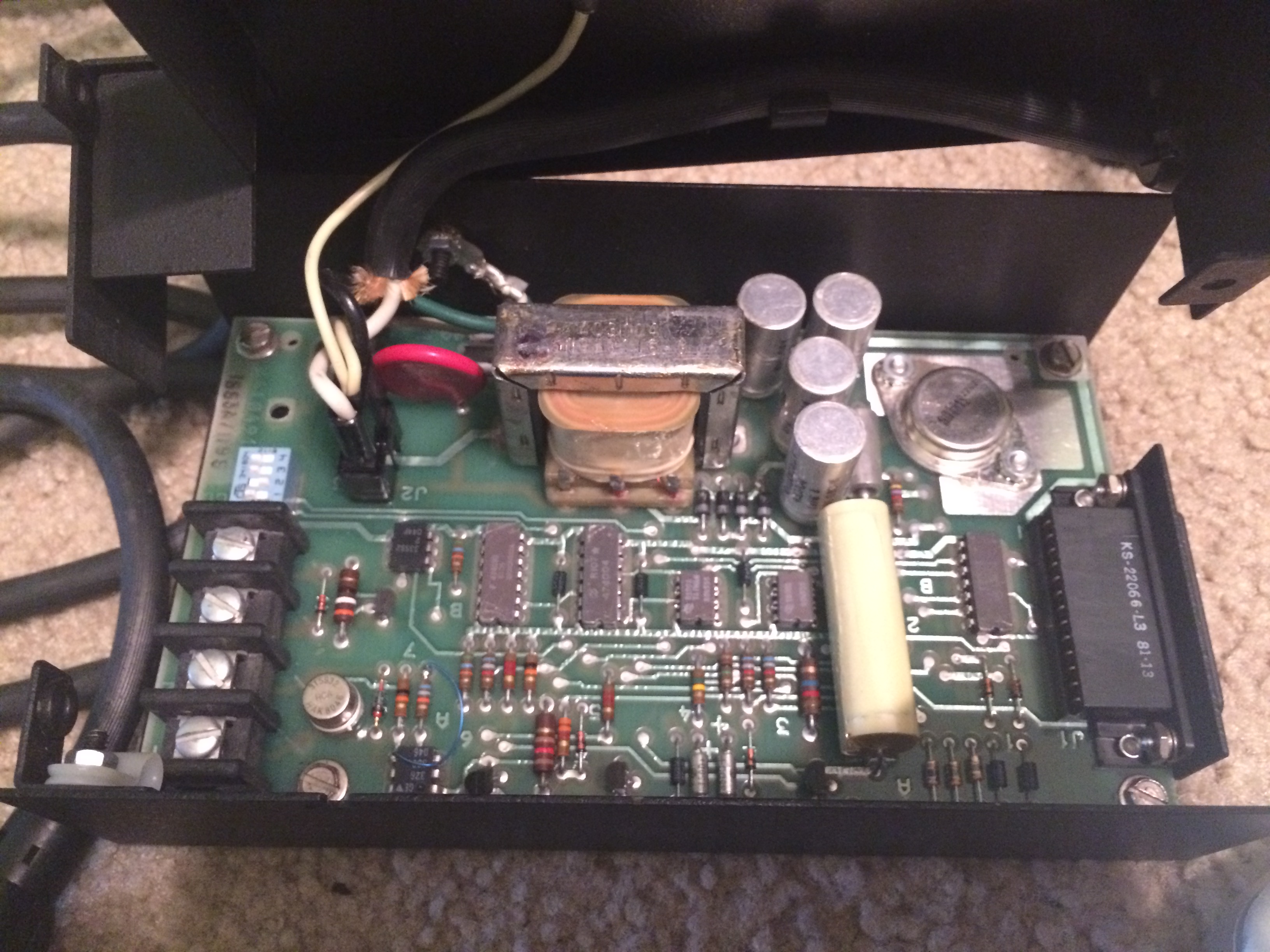

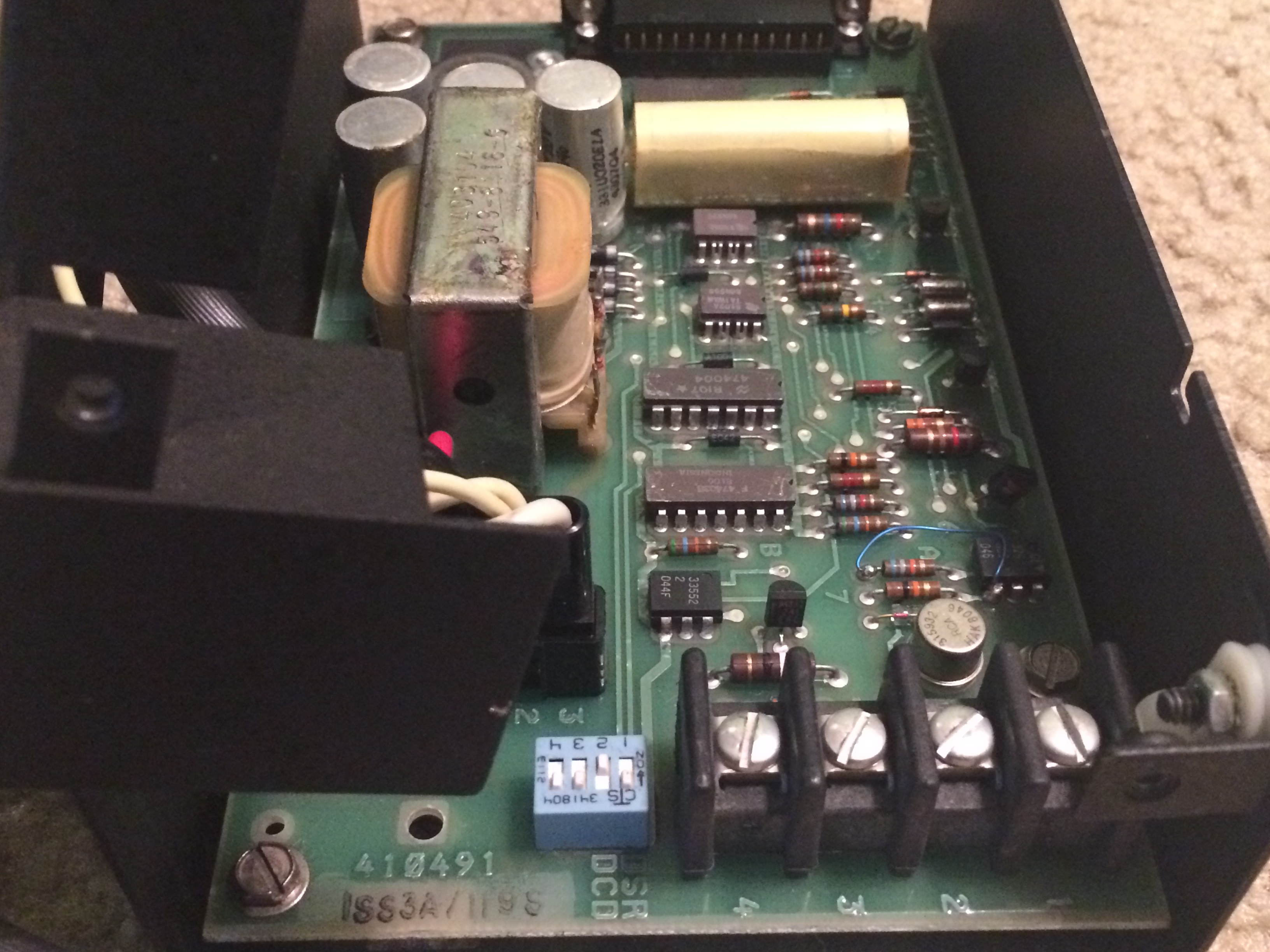

> I'd be very interested in seeing pictures, including the inside. Is it
> actually Teletype branded?
>
> Mike
>
> > On Jul 25, 2015, at 9:46 PM, Sarah Autumn <neverether at gmail.com> wrote:
> >
> > Hey all,
> >
> > Does anyone happen to have a manual for the EIA-232 current interface
> made by Teletype? I've found manuals for other brands, but they don't seem
> applicable to this one.
> >

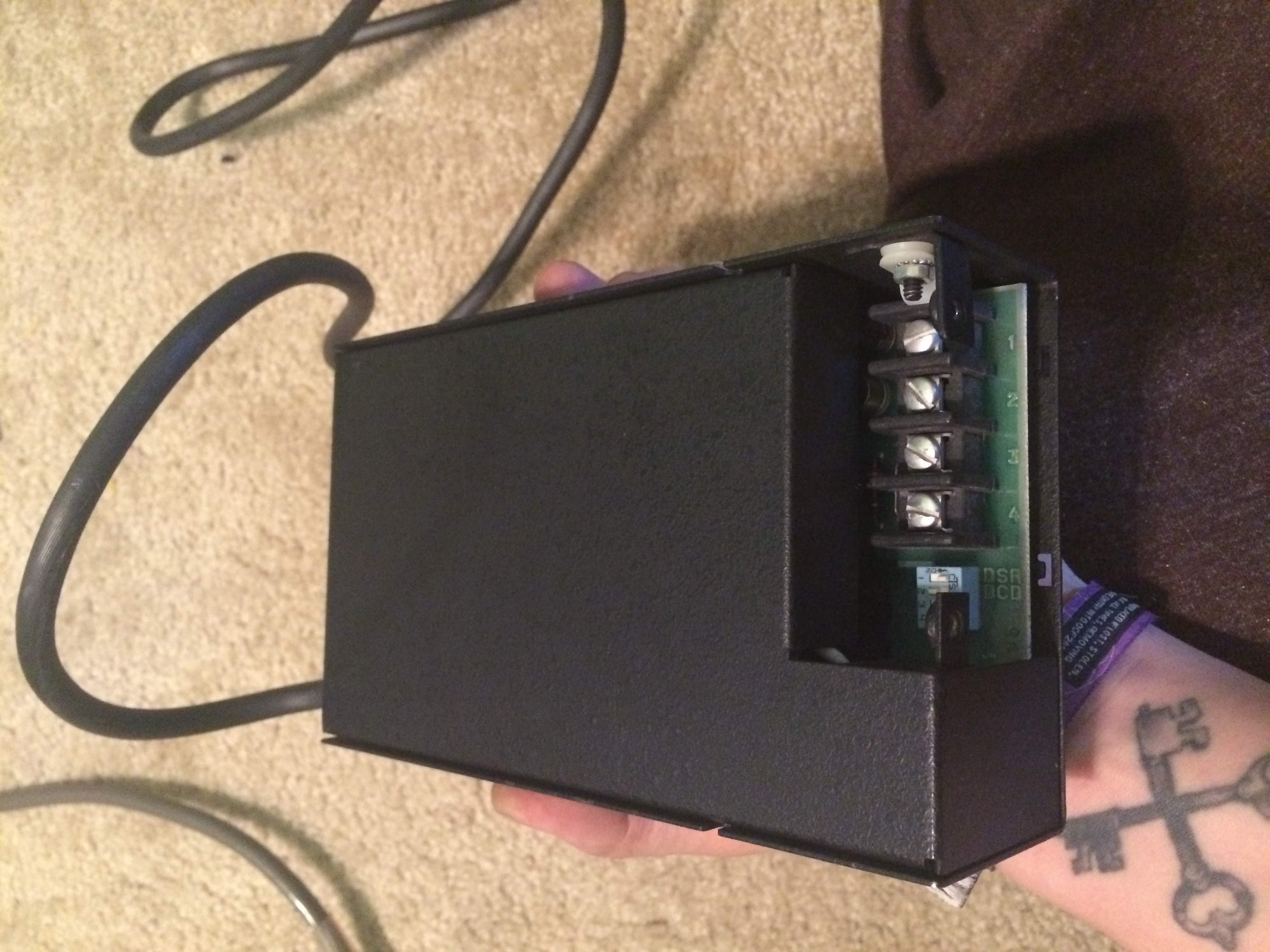

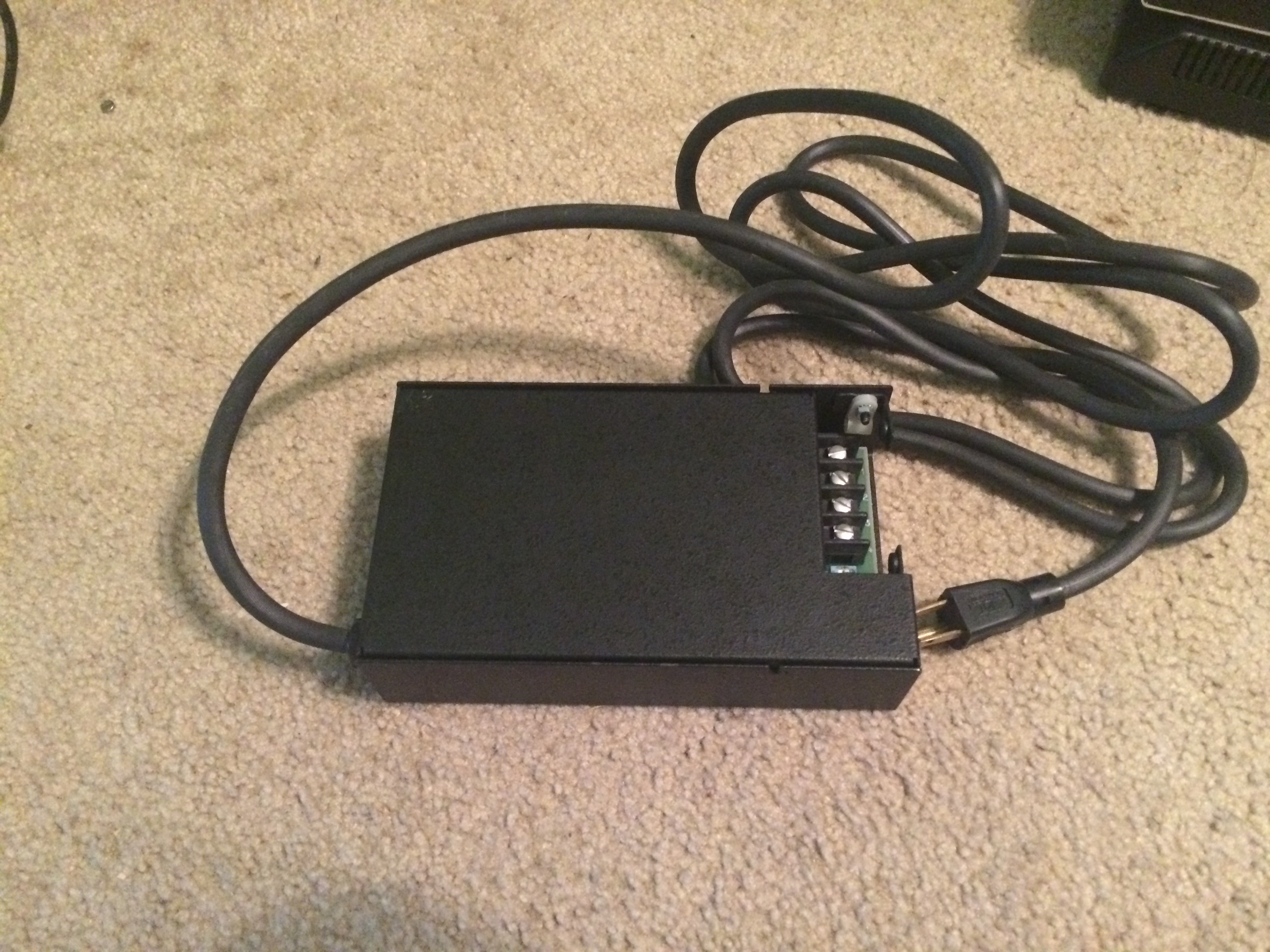

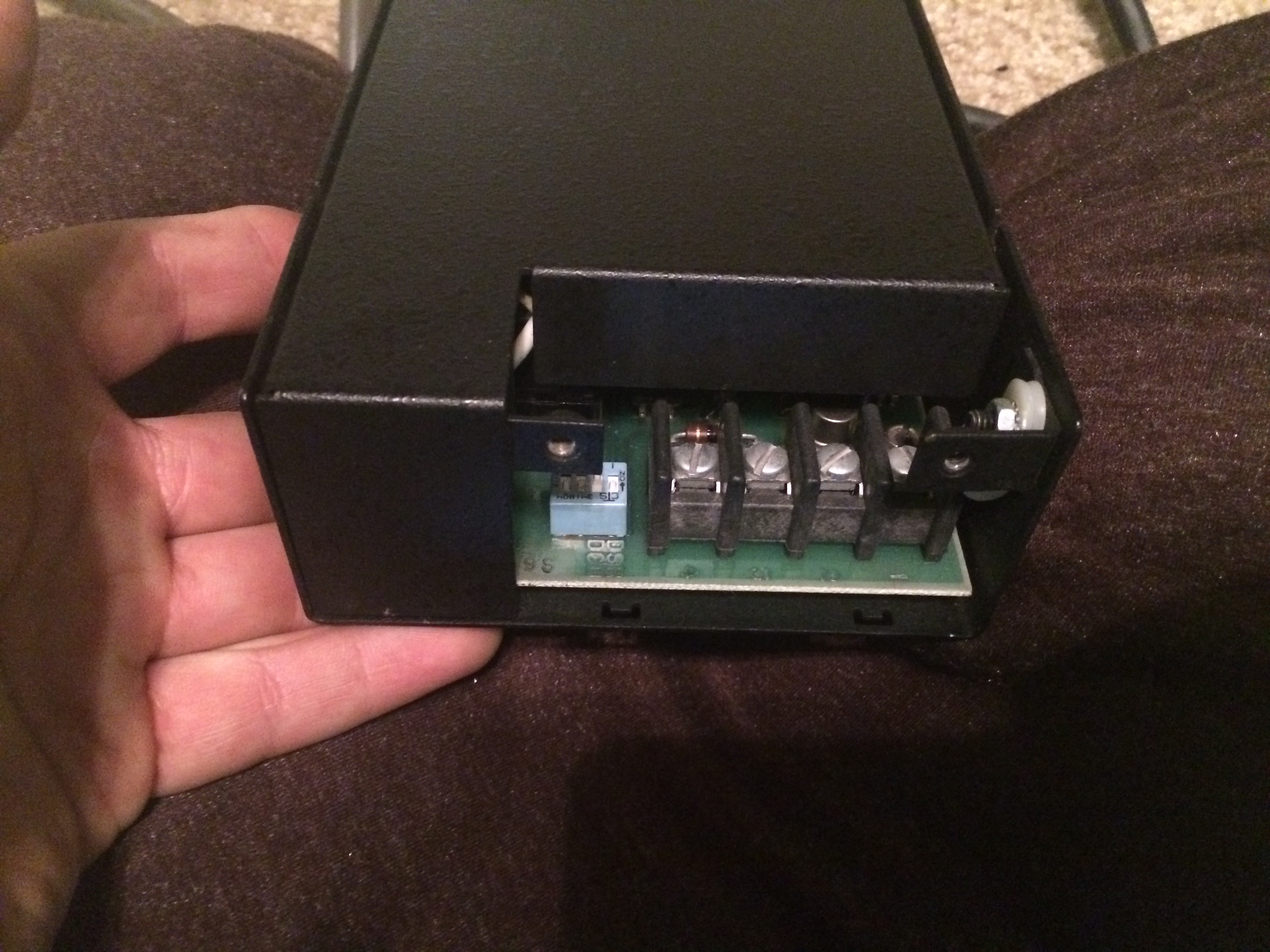

> > This interface doesn't seem to have a model number on it. It's a black,
> rectangular metal box, about 8" long x 5" wide by 3" deep (estimate). It's
> got 4 terminals on one end, and a DB-25 connector on the other.
> >
> > Thanks!
