[GreenKeys] Table top M35 KSR...

Don Robert House K9TTY 62.5milliamps at gmail.com
Wed Jul 22 19:10:21 EDT 2015


Many of these 35 KSR sets were used as terminals to communicate with the #1 ESS WECo electronic switch.
I had one in my museum. By the time the #5 ESS came out the terminal used was the Model 40 KDP.

The Number 101 ESS… the first WECo electronic switch, had a Model 28 KSR
with a modified keyboard and a modified type box.  It was very weird.

All except the #5 were coupled to the switches with a -130Vdc 62.5 milliamp loop.

The Bell System provided the USA with the finest telecommunications network in the world.
I am pleased that I was part of it.  DRH



On 21 Jul 2015, at 3:15 PM, John Whitney wrote:

> Hello greenkey members.
>
> I'm trying to restore a Desktop M35 KSR, and some of the vibration dampeners have turned to goo from contact with oil.  Here is a picture of a set that is in pretty good shape...
>
>   http://www.vintagebytes.com/photos/2015/20150721-m35-dampeners.jpg
>
> Does anyone have some of these parts?
>
> The parts of these that have not had contact with oil, seem to be in very good shape, so New Old Stock could be good.  I need 4 sets.
>
> Thank you.
> --
> John :-)
> john at johnwhitney.com
> 801 815 9265
> ______________________________________________________________
> GreenKeys mailing list
> Home: http://mailman.qth.net/mailman/listinfo/greenkeys
> Help: http://mailman.qth.net/mmfaq.htm
> Post: mailto:GreenKeys at mailman.qth.net
>
> 2002-to-present greenkeys archive: http://mailman.qth.net/pipermail/greenkeys/
> 1998-to-2001 greenkeys archive: http://mailman.qth.net/archive/greenkeys/greenkeys.html
> Randy Guttery's 2001-to-2009 GreenKeys Search Tool: http://comcents.com/tty/greenkeyssearch.html
>
> This list hosted by: http://www.qsl.net
> Please help support this email list: http://www.qsl.net/donate.html

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20150722/7800ef0a/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...

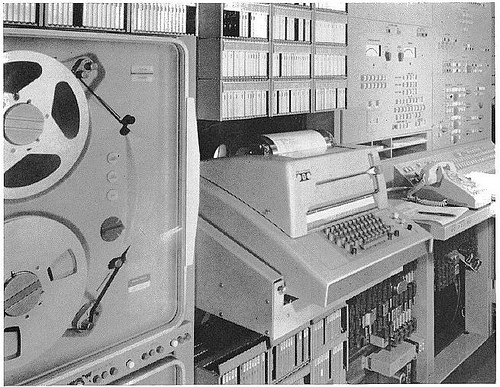

Name: No 1 ESS by Western Electric Co.jpg
Type: image/jpg
Size: 124966 bytes
Desc: not available
URL: <http://mailman.qth.net/pipermail/greenkeys/attachments/20150722/7800ef0a/attachment-0001.jpg>
