Hello again,

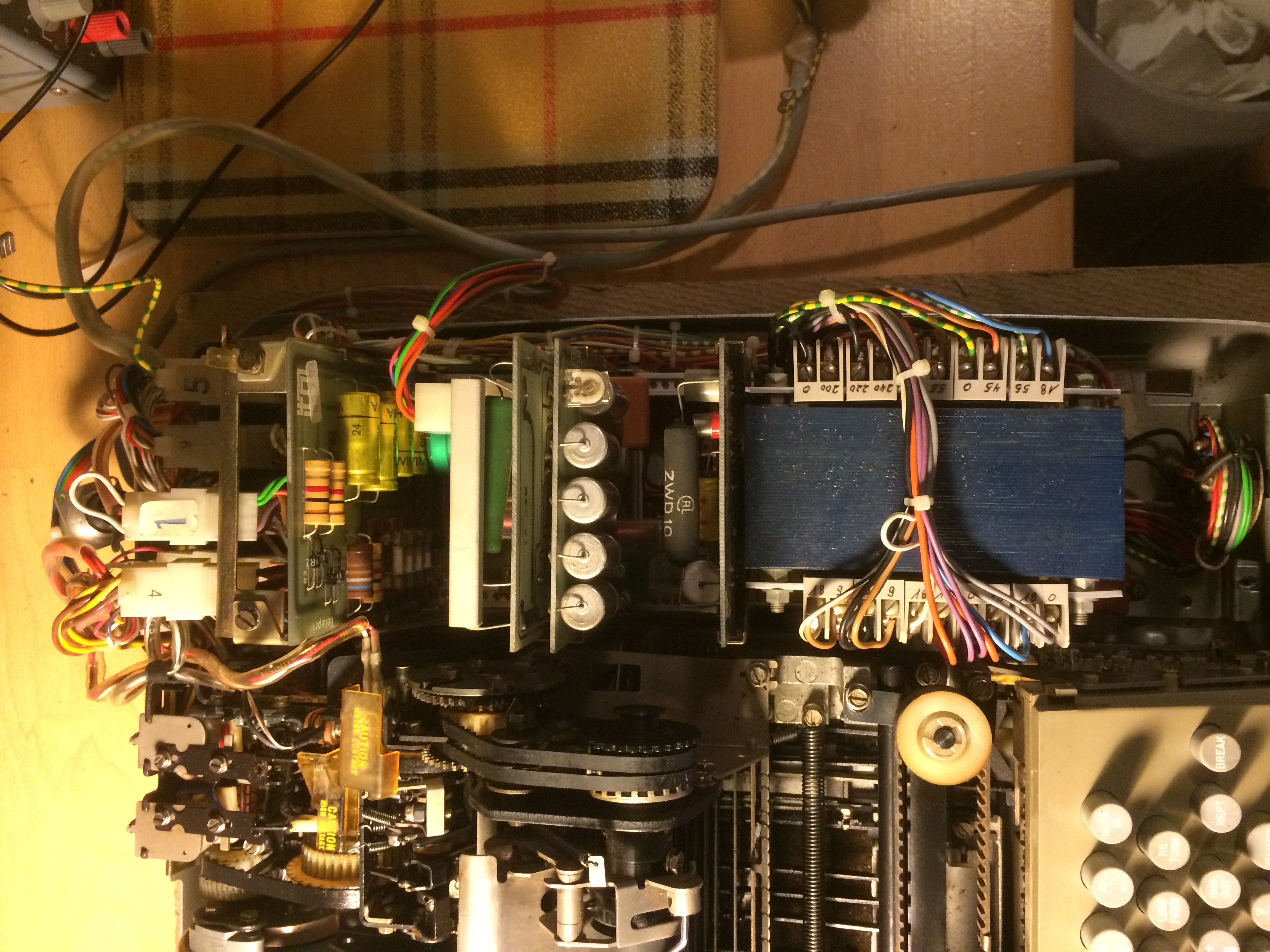

Wayne suggested me to post some pictures of the UCC in the TP-3328.
Here they are.

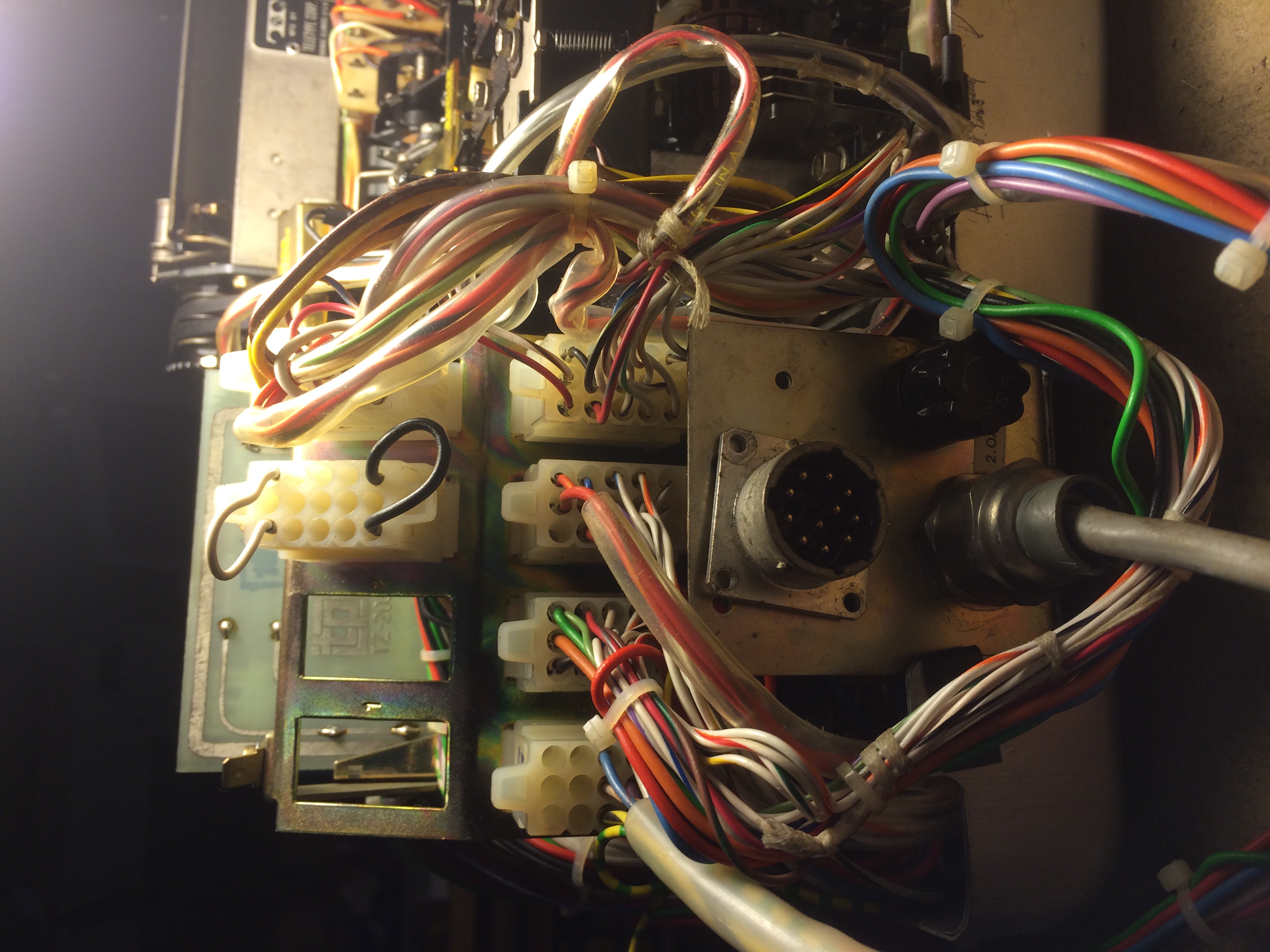

I think the bottom round plug on the rear side of tht UCC is the current
loop connector.
But witch pins i need?

Marco
