[GreenKeys] Wanted: Teletype P/N 72563, Washer, Felt, for Model 15 main shaft

[John Nagle]

     I'm restoring a Model 15, and it looks like the felt washer 72563 on
the main shaft is shot. The selector clutch is slipping.  I can
hand-crank the machine through a cycle and see the cams stop moving for
a moment.

     The selector problem seems to be not stuck swords, but a slipping
selector clutch.  I can hand-crank the machine through a cycle and
see the cams stop moving for a moment.

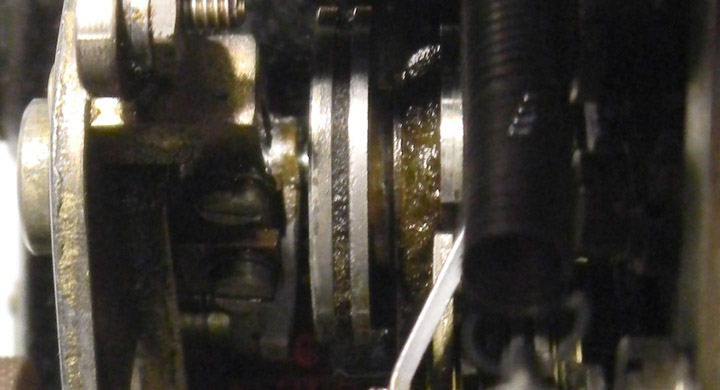

     The felt washer 72563 doesn't look too good. See:

http://www.aetherltd.com/images/tty15-2/secondfeltwasherproblemmed.jpg

That's probably what's slipping.

Anyone want to sell me one, or swap for some other Model 15 parts?
I have a Model 15 repair kit, with most of the smaller parts,
but not this particular felt washer.  thanks.

					John Nagle

On 09/12/2014 08:11 AM, gfmurphy at earthlink.net wrote:
>
> Hi John:
>
> A little more on the 6863 disk:  The 6863 disk has a notch in its outer
> circumference.  The cut that runs through the center of the 6863 disk
> has to engage the protrusions on the ends of the selector cam.  When the
> disk is assembled to the selector cam, the notch in the disk's circumference
> can be in either of 2 positions which are 180 degrees apart.  It makes
> no difference which way the notch faces relative to the selector cam.
> There is no 'phasing' requirement for the 6863 disk.
>
> Regards, Jerry Murphy
>
>
>
>
> -----Original Message-----
>> From: John Nagle <nagle at animats.com>
>> Sent: Sep 11, 2014 5:32 PM
>> To: gfmurphy at earthlink.net
>> Subject: Re: [GreenKeys] Model 15 main shaft removal/disassembly/reassembly -	instructions?
>>
>>    Progress report: typing unit reassembled and first tested.
>> Runs open OK.  Connected to a current loop with a Model 14
>> tape printer, and sent RYRY, the machine cycles properly
>> and bits 1,2, and 5 select correctly.  Bits 3 and 4 are
>> stuck. The swords in the selector aren't moving for
>> those bits.
>>
>>    Also, spacing isn't working; the carriage doesn't
>> advance. I'll look at that after I figure out what's going
>> on at the selector.
>>

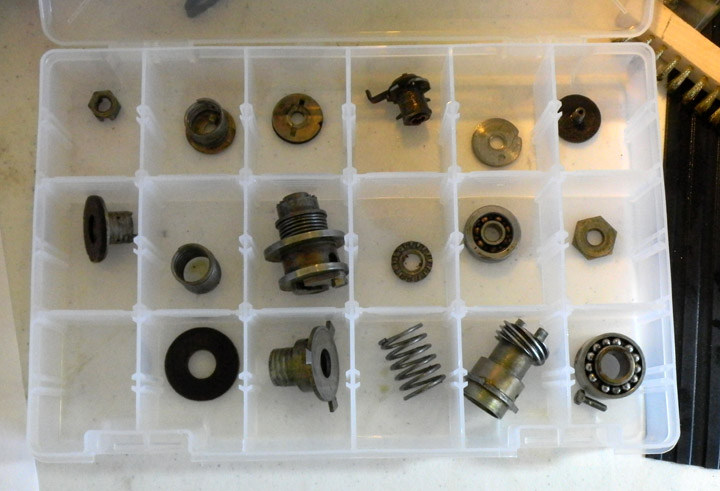

>>    I think I put the main shaft back together correctly.  I'm
>> not entirely sure about the cam sleeve disc 6863.
>> (Second from the top right in this picture).
>>
>> http://www.aetherltd.com/images/tty15-2/mainshaftparts.jpg
>>
>> That can go on with either side up, and it's not symmetrical.
>> Does that matter?  Thanks.
>>
>> 				John Nagle
>>
>
