To all,



                A number of questions you all have asked so I thought it
would be easier to do them all at once.



Part number 164164 is the code bar for the Answer Back Mechanism, used to
send a short message with the "Here Is" button on the keyboard

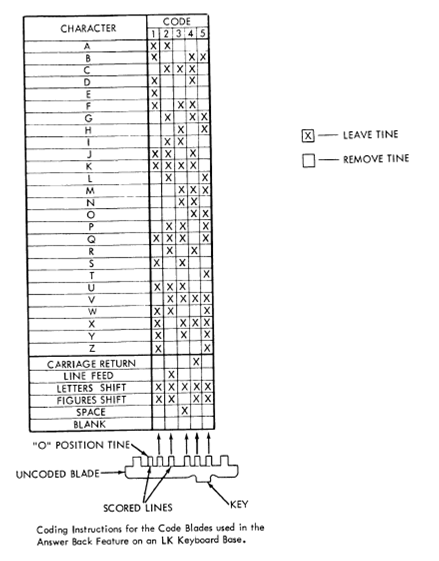

You leave or break off "tines" to send specific characters





So you start with the uncoded blade and code each one for a character and

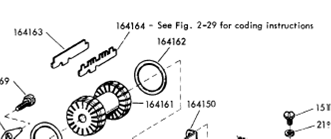

assembly them on the Answer Back Drum held in place with a couple of
O-rings.

And when you press the "Here Is"  the 15 character message is sent



Mark
